IBM EMFD 256GB DDR5 Memory for Power10

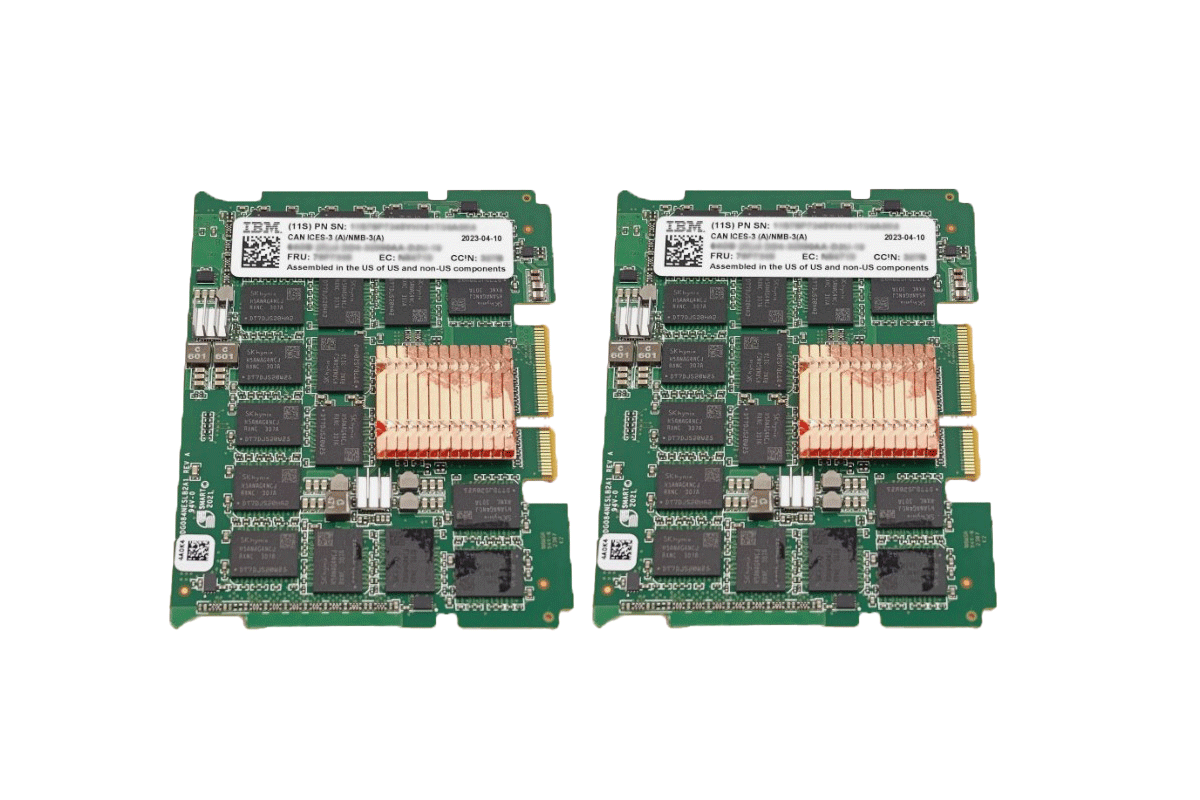

The IBM EMFD is a 256 GB DDR5 memory feature for IBM Power10 servers. It consists of two 128 GB full-height DDIMMs.
Product Description
The IBM EMFD (feature code EMFD, part number 03HD800, CCIN 3298) is a 256 GB memory feature made of two 128 GB full-height DDR5 DDIMMs. Each module is 3200 MHz with 16 Gb DRAM. The feature uses two DDIMM slots. It is the Power10 feature code for the same full-height 128 GB DDR5 module ordered as EM4M on Power11. Full-height memory is not supported on systems that have an RDX drive. Do not mix this DDR5 feature with DDR4 memory in the same system.
Features
- 256 GB capacity from two 128 GB DDIMMs
- 3200 MHz DDR5
- 16 Gb DRAM
- Full-height (4U) DDIMM form factor
- CCIN 3298
- Supported on Power10 systems that accept full-height DDR5
- Installs in pairs
Technical Specifications
- Feature Code: EMFD
- Part Number: 03HD800
- Related parts: 03HD815, 03HD795
- CCIN: 3298
- Capacity: 256 GB (2 × 128 GB)
- Speed: 3200 MHz
- DRAM: 16 Gb DDR5
- Form Factor: Full-height (4U)
- Slots Used: 2
- Related Power11 feature: EM4M (same CCIN 3298)
Compatibility
The IBM EMFD 256GB DDR5 Memory is compatible with:
- Systems: IBM Power S1024 9105-42A and other Power10 systems that accept full-height DDR5 DDIMMs. Confirm support on the specific system before install
- Operating systems: IBM i, AIX, VIOS, and Linux on Power
- Related features: EMFA, EMFB, and EMFC are the low-profile DDR5 features. EMFG is the 512 GB full-height DDR5 feature
- Limitations: Requires two empty DDIMM slots. Full-height memory is not supported when an RDX drive is installed. Do not mix DDR4 and DDR5 in the same system. All memory in the system must be the same height. Follow the system memory plugging rules
Warranty
This product comes with a 60-day warranty covering parts and functionality.
