Product Description

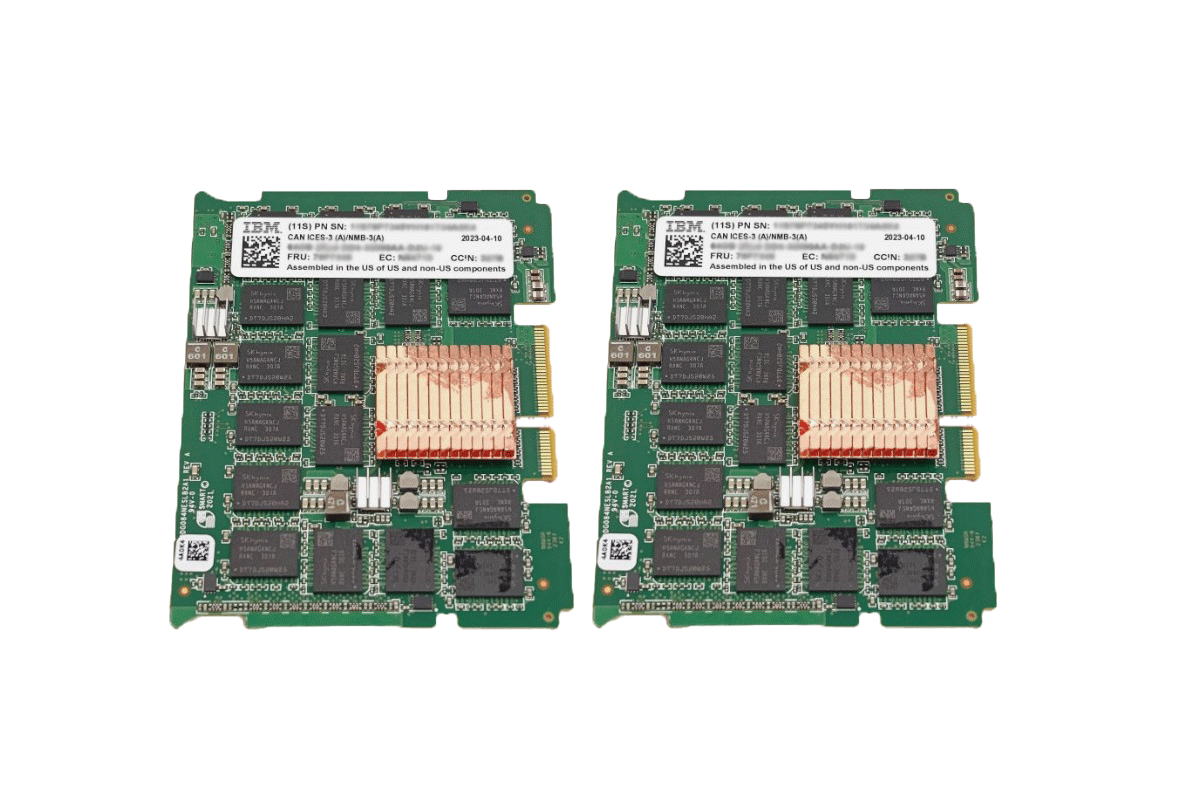

IBM EMFB 128GB DDR5 Memory for Power10
The IBM EMFB is a 128 GB DDR5 memory feature for IBM Power10 servers. It consists of two 64 GB DDIMMs.
Product Description
The IBM EMFB (feature code EMFB, part number 03HD881, CCIN 32A2) is a 128 GB memory feature made of two 64 GB low-profile DDR5 DDIMMs. Each module is 3200 MHz with 16 Gb DRAM. The feature uses two DDIMM slots. It is the Power10 feature code for the same 64 GB DDR5 module ordered as EM5B on Power11. Do not mix this DDR5 feature with DDR4 memory in the same system.
Features
- 128 GB capacity from two 64 GB DDIMMs
- 3200 MHz DDR5
- 16 Gb DRAM
- Low-profile (2U) DDIMM form factor
- CCIN 32A2
- Supported on Power10 systems that accept DDR5
- Installs in pairs
Technical Specifications
- Feature Code: EMFB
- Part Number: 03HD881
- Related parts: 03HD896, 03HD888
- CCIN: 32A2
- Capacity: 128 GB (2 × 64 GB)
- Speed: 3200 MHz
- DRAM: 16 Gb DDR5
- Form Factor: Low-profile (2U)
- Slots Used: 2
- Related Power11 feature: EM5B (same CCIN 32A2)
Compatibility
The IBM EMFB 128GB DDR5 Memory is compatible with:
- Systems: IBM Power S1022 9105-22A, S1022s 9105-22B, and S1024 9105-42A that are configured for DDR5. Confirm support on the specific system before install
- Operating systems: IBM i, AIX, VIOS, and Linux on Power
- Related features: EMFA (64 GB, 2 × 32 GB) and EMFC (256 GB, 2 × 128 GB) are the other low-profile DDR5 features in this family
- Limitations: Requires two empty DDIMM slots. Do not mix DDR4 and DDR5 in the same system. All memory in the system must be the same height. Follow the system memory plugging rules
Warranty
This product comes with a 60-day warranty covering parts and functionality.
