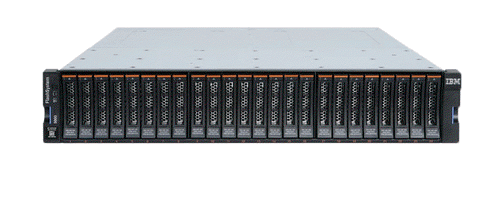

    IBM Storage FlashSystem 5015

    The IBM Storage FlashSystem 5015 is an affordable, entry-level all-flash and hybrid storage system designed for midrange environments. It delivers enterprise-class data services, solid performance, and seamless integration with IBM Power Systems running IBM i, AIX, and Linux — all at a cost-effective price point.

    Product Description

    The IBM Storage FlashSystem 5015 (machine type 4680) is a 2U dual-controller storage system built on IBM Storage Virtualize software. Available in both 12-bay Large Form Factor (LFF) and 24-bay Small Form Factor (SFF) configurations, it provides flexible options for all-flash or hybrid deployments. With dual active-active node canisters, support for high-performance flash drives, and a full suite of data services including thin provisioning, snapshots, and remote replication, the FlashSystem 5015 is ideal for consolidating storage and supporting virtualized IBM Power Systems workloads.

    Featured Models

    Model Machine Type-Model Form Factor Drive Bays Processors  Cache Options   Standard Connectivity
    FlashSystem 5015 LFF     4680-2P2   2U Rack  12 × 3.5-inch LFF  2-core per canister    32 GB / 64 GB      1 Gb iSCSI
    FlashSystem 5015 SFF     4680-2P4   2U Rack  24 × 2.5-inch SFF  2-core per canister    32 GB / 64 GB      1 Gb iSCSI


    Key Features

    • Dual active-active node canisters for high availability
    • Support for SAS SSDs, FlashCore Modules, and hybrid configurations
    • IBM Storage Virtualize software with thin provisioning, Easy Tier, FlashCopy, and remote mirroring
    • Data reduction pools (compression and deduplication)
    • Flexible host connectivity options (optional 16 Gb Fibre Channel, 10/25 Gb iSCSI, and SAS)
    • SAS expansion enclosures for scale-up capacity (12-bay, 24-bay, and high-density 92-bay)
    • Intuitive management with IBM Storage Insights and modern GUI
    • Seamless integration with IBM Power Systems (IBM i, AIX, Linux)

    Technical Specifications

    • Machine Type: 4680
    • Models: 2P2 (LFF), 2P4 (SFF)
    • Form Factor: 2U rack-mount
    • Controllers: Dual node canisters (2-core processors each)
    • Cache: 32 GB base (16 GB per canister); optional 64 GB
    • Host Connectivity: 1 Gb iSCSI standard; optional 16 Gb FC, 10/25 Gb iSCSI, 12 Gb SAS
    • Expansion: Supports multiple SAS expansion enclosures
    • RAID Support: RAID 0, 1, 5, 6, 10, and Distributed RAID (DRAID)
    • Software: IBM Storage Virtualize
    • Maximum Drives: Up to several hundred with expansion enclosures

    Compatibility

    The IBM FlashSystem 5015 is compatible with:

    • Power Systems Models: Power8, Power9, Power10, and Power11 servers
    • Operating Systems: IBM i, AIX, Linux (RHEL, SUSE, Ubuntu), VIOS, VMware, Windows
    • Environments: Physical, virtualized, and hybrid cloud deployments
    • Host Connectivity: Fibre Channel, iSCSI, and SAS

    Verify exact interoperability, firmware levels, and configuration limits via IBM documentation for your specific environment.

    Warranty

    Products come with a 60-day warranty covering parts and functionality.
