    Drives for IBM FlashSystem 7200

    IBM FlashSystem 7200 (2076-824) supports a wide range of high-performance NVMe and SAS drives. The control enclosure uses front-loading NVMe drives (IBM FlashCore Modules, industry-standard NVMe SSDs, and Storage Class Memory), while SAS expansion enclosures (2076-12G, 2076-24G, and 2076-92G) support additional SSD and HDD capacity for tiered storage.

    Product Description

    The IBM FlashSystem 7200 delivers ultra-low latency and high throughput using NVMe-attached drives in the 2U control enclosure. Customers can choose IBM FlashCore Modules with built-in hardware compression and encryption, industry-standard NVMe SSDs, or Storage Class Memory (SCM) drives. Capacity can be further expanded with SAS SSDs and HDDs in the supported expansion enclosures. All drives are fully supported by IBM Storage Virtualize software and are ideal for high-performance environments, including those connected to IBM Power Systems.

    Supported Drive Types

    NVMe Drives (Control Enclosure – up to 24 drives)

    Drive Type Capacities Key Benefits

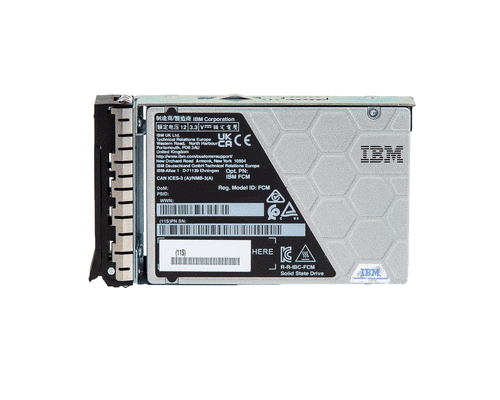

    IBM FlashCore Modules (FCM)     4.8 TB, 9.6 TB, 19.2 TB, 38.4 TB     Hardware compression, self-encryption, consistent low latency

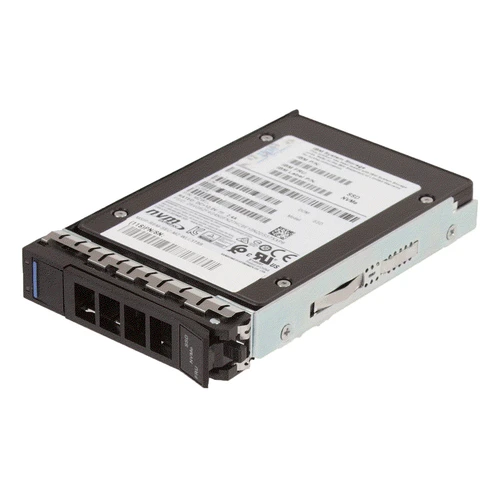

    Industry-Standard NVMe SSD     1.92 TB, 3.84 TB, 7.68 TB, 15.36 TB     High performance, self-encrypting options
    Storage Class Memory (SCM)     375 GB, 750 GB, 800 GB, 1.6 TB     Ultra-low latency for the most demanding workloads



    SAS Drives (Expansion Enclosures)

    Drive Type Form Factor Typical Capacities
    SAS SSD     2.5-inch SFF     800 GB – 30.72 TB
    SAS HDD (10K)     2.5-inch / 3.5-inch     900 GB – 2.4 TB
    Nearline SAS HDD (7.2K)     2.5-inch / 3.5-inch     2 TB – 18 TB



    Key Features

    • NVMe performance with latencies as low as ~70 µs
    • IBM FlashCore Modules with inline hardware compression and encryption
    • Support for mixing FCM, industry-standard NVMe, and SCM drives (with array restrictions)
    • Hot-swap capability for all supported drives
    • SAS expansion for cost-effective capacity growth and tiering
    • Full integration with IBM Storage Virtualize (Easy Tier, data reduction, encryption)
    • Ideal for high-performance databases, virtualization, and IBM Power Systems workloads

    Compatibility

    These drives are compatible with:

    • Control Enclosure: IBM FlashSystem 7200 (2076-824 / 4664-824)
    • Expansion Enclosures: 2076-12G (LFF), 2076-24G (SFF), 2076-92G (High-Density)
    • Software: IBM Storage Virtualize
    • Host Environments: IBM Power Systems (IBM i, AIX, Linux), VMware, and other supported platforms

    Important Notes:

    • All drives in an array must be the same type and capacity.
    • Do not mix IBM FlashCore Modules with industry-standard NVMe drives in the same array.
    • Verify exact drive feature codes, firmware levels, and population rules via IBM documentation.

    Warranty

    Products come with a 60-day warranty covering parts and functionality.
