    • IBM FlashSystem 9600

    The IBM FlashSystem 9600 is IBM's flagship high-end all-flash storage platform, engineered for the most demanding enterprise and mission-critical workloads. Built on the latest IBM Storage Virtualize software and powered by fifth-generation FlashCore Modules (FCM5), this system combines extreme performance, massive scale, and advanced data services in a compact, highly resilient design.

    With support for up to 4.8 PB of effective capacity (after data reduction), the 9600 delivers sub-100 µs latency and over 10 million IOPS, making it ideal for large-scale databases, AI/ML training/inference, high-performance computing, and virtualization environments. It features end-to-end NVMe architecture, NVMe-oF connectivity, hardware-accelerated compression, real-time ransomware detection, and AI-based predictive analytics via IBM Storage Insights.

    Key enterprise capabilities include Safeguarded Copy with immutable snapshots, hyperswap for zero-RPO disaster recovery, active-active clustering, and seamless hybrid cloud integration. The system supports up to 48 drive slots (in 4U control enclosure) and expansion enclosures, with redundant hot-swap components for maximum uptime. Designed for Power Systems, x86 servers, and containerized applications, the FlashSystem 9600 sets the standard for modern enterprise storage.

    The IBM FlashSystem 9600 is backed by a 60-day warranty, providing assurance in its quality and performance.

    Key Features

    • Flagship all-NVMe architecture with IBM FlashCore Module 5 (FCM5) drives.
    • Up to 4.8 PB effective capacity with IBM's 3:1 data reduction guarantee.
    • Sub-100 µs latency and over 10 million IOPS performance.
    • NVMe-oF support (FC-NVMe, NVMe/RoCE, NVMe/TCP) for low-latency fabric access.
    • Real-time ransomware detection and autonomous recovery features.
    • Safeguarded Copy with immutable snapshots and air-gapped recovery.
    • Hyperswap and active-active clustering for continuous availability.
    • AI-driven insights and automation via IBM Storage Insights.
    • 4U control enclosure with up to 48 drive slots and modular expansion.

    Specifications



    Attribute Specification
    Form Factor 4U rack-mountable control enclosure
    Maximum Raw Capacity (Control Enclosure) Up to 2.53 PB physical (with FCM5 or standard NVMe drives)
    Maximum Effective Capacity Up to 4.8 PB (with 3:1 data reduction)
    Maximum IOPS Over 10 million (4 KB random read)
    Latency Sub-100 µs (typically <70 µs)
    Host Interfaces 32/64 Gb Fibre Channel, 100/200 GbE (RoCE/iWARP), 25/100 Gb iSCSI
    NVMe Support End-to-end NVMe, NVMe-oF (FC-NVMe, NVMe/TCP, NVMe/RoCE)
    Data Services Compression, deduplication, thin provisioning, snapshots, replication, encryption, Safeguarded Copy
    Management IBM Storage Virtualize GUI, CLI, REST API, IBM Storage Insights
    Power Supplies Redundant hot-swap
    Warranty 60 days


    Compatibility

    The IBM FlashSystem 9600 is compatible with a broad range of operating systems, hypervisors, and environments:

    • Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), VMware ESXi, IBM AIX, IBM i, Oracle Solaris, HP-UX.
    • Hypervisors: VMware vSphere, Microsoft Hyper-V, KVM, Nutanix AHV, Red Hat OpenShift.
    • Cloud Integration: Supports hybrid cloud deployments with IBM Cloud, AWS, Azure (via Spectrum Virtualize).

    For complete host, protocol, and interoperability details, consult the IBM System Storage Interoperation Center (SSIC) or IBM documentation

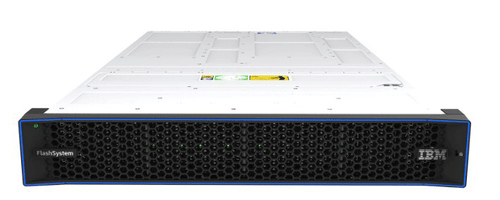

    • IBM 5078-A40 FlashSystem 9600 1689TB front view all-flash storage system
      Quick view

      IBM 5078-A40 FlashSystem 9600 1689TB

      IBM 5078-A40 FlashSystem 9600 1,689TB  IBM 5078-A40 Control Enclosure IBM FlashSystem 9600 comprises a 1 Rack-Unit (2U) Control enclosure, which contains: 36 slots for NVMe Flash devices (front) Two Node Canisters Two Power...

      $1,500,000.00
