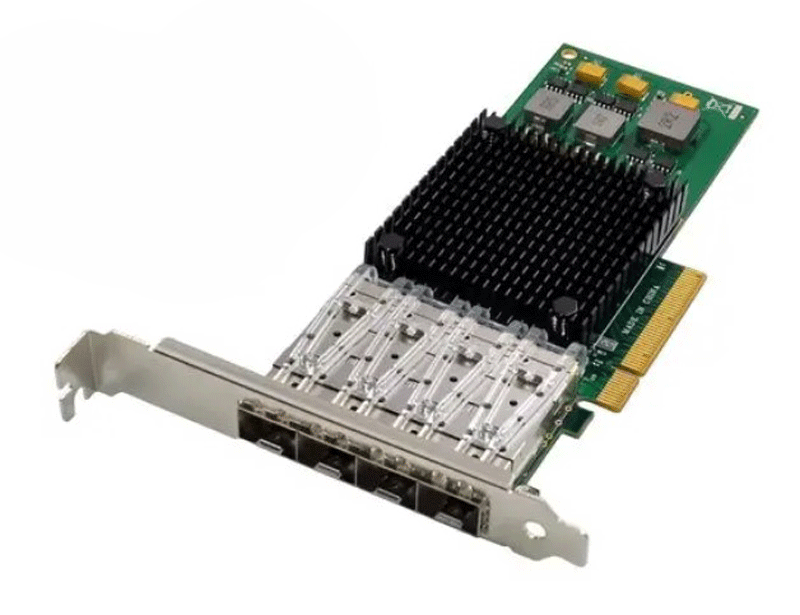

IBM ALBG 16 Gb FC 4 Port Adapter Cards (Pair) 03JK497 for 2072 FlashSystem

The IBM ALBG is a pair of 16 Gb Fibre Channel 4-port adapter cards for IBM FlashSystem 5015 and 5035 control enclosures.

Product Description

The IBM ALBG (feature code ALBG) supplies a matched pair of 16 Gb Fibre Channel adapter cards. Each card has four 16 Gb FC ports with shortwave SFP transceivers. The pair provides eight 16 Gb FC ports total for host attachment, replication, and system clustering. Feature ALBG is the updated replacement for the earlier ALBB feature on FlashSystem 5015 and 5035 systems. Ports support auto-negotiation for compatibility with existing Fibre Channel fabrics.

Features

Pair of 16 Gb Fibre Channel 4-port adapter cards
Four ports per card (eight ports total)
Shortwave SFP transceivers included
Auto-negotiation support
Used for host I/O, replication, and clustering
Functionally equivalent to previous ALBB feature

Technical Specifications

Feature Code: ALBG
Description: 16 Gb FC 4 Port Adapter Cards (Pair)
Ports: 4 × 16 Gb FC per card (8 total)
Port Speed: 16 Gbps (with auto-negotiation)
Transceivers: Shortwave SFP (included)
Previous feature: ALBB
Machine types: 2072 (FlashSystem 5015/5035), 4680 (FlashSystem 5045)

Compatibility

The IBM ALBG 16 Gb FC 4 Port Adapter Cards (Pair) is compatible with:

Systems: IBM FlashSystem 5015 and 5035 (machine type 2072, models 2N2, 2N4, 3N2, and 3N4). Also supported on FlashSystem 5045 (machine type 4680, model 2P4)
Function: Host attachment, remote replication, and enclosure clustering
Related features: ALBB is the previous 16 Gb FC 4-port pair feature on the same platforms
Limitations: Install matching cards across both node canisters. Confirm firmware level and slot availability before install. Not compatible with IBM Power Systems PCIe server slots
