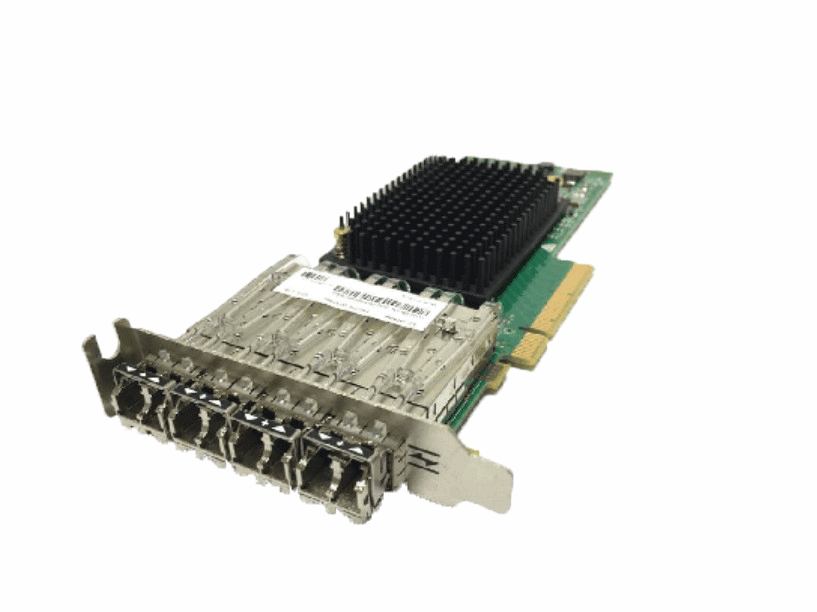

IBM AHBE 32 Gb FC 4 Port Adapter Cards (Pair) for FlashSystem 9200

The IBM AHBE is a pair of 32 Gb Fibre Channel 4-port adapter cards for IBM FlashSystem 9200 control enclosures.

Product Description

The IBM AHBE (feature code AHBE) supplies a matched pair of 32 Gb Fibre Channel adapter cards. Each card has four 32 Gb FC ports with shortwave SFP transceivers. The pair provides eight 32 Gb FC ports total for host attachment, replication, and system clustering. Feature AHBE is the updated feature code for this adapter pair on FlashSystem 9200 systems. The previous feature code is AHB4. Ports support auto-negotiation to lower speeds for compatibility with existing Fibre Channel fabrics. The adapters support both SCSI Fibre Channel and FC-NVMe.

Features

Pair of 32 Gb Fibre Channel 4-port adapter cards
Four ports per card (eight ports total)
Shortwave SFP transceivers included
Auto-negotiation support
SCSI Fibre Channel and FC-NVMe ready
Used for host I/O, replication, and clustering
Updated feature for AHB4 on FlashSystem 9200

Technical Specifications

Feature Code: AHBE
Previous feature: AHB4
Description: 32 Gb FC 4 Port Adapter Cards (Pair)
Ports: 4 × 32 Gb FC per card (8 total)
Port Speed: 32 Gbps (with auto-negotiation)
Transceivers: Shortwave SFP (included)
Machine types: 9846, 9848 (FlashSystem 9200)

Compatibility

The IBM AHBE 32 Gb FC 4 Port Adapter Cards (Pair) is compatible with:

Systems: IBM FlashSystem 9200 (machine types 9846 and 9848, models AG8 and UG8)
Function: Host attachment, remote replication, and enclosure clustering
Related features: AHB4 is the previous 32 Gb FC 4-port pair feature on the same platforms. AHB3/AHBD are the related 16 Gb FC pairs
Limitations: Install matching cards across both node canisters. Confirm firmware level and slot availability before install. Not compatible with IBM Power Systems PCIe server slots
