Product Description

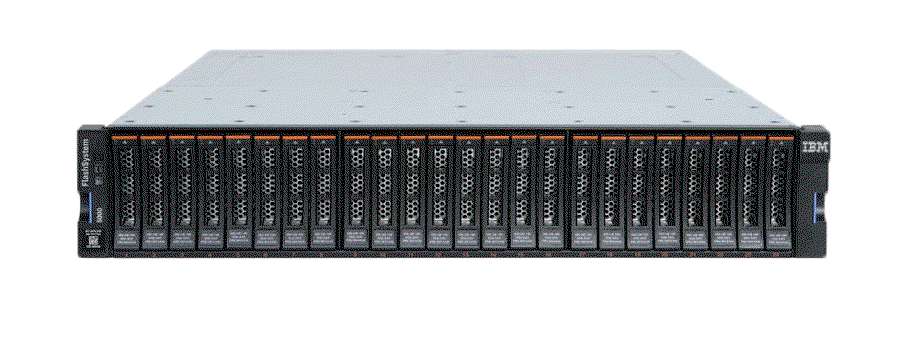

IBM 4662-24G FlashSystem 5300 2U24 SFF SAS Expansion Enclosure
The IBM 4662-24G FlashSystem 5300 2U24 SFF SAS Expansion Enclosure delivers high-density, cost-effective capacity scaling for the 4662-7H2 NVMe control enclosure. This 2U rack-mountable SAS expansion supports 24 x 2.5-inch SFF SAS SSDs or enterprise HDDs, enabling tiered or hybrid storage pools while maintaining full compatibility with IBM Storage Virtualize software, Distributed RAID, ransomware protection, and data reduction features.
Designed for seamless SAS chaining at 12 Gbps, the 4662-24G provides reliable, high-performance expansion for IBM Power Systems and IBM i environments.
Key Features of the IBM 4662-24G FlashSystem 5300 SFF Expansion Enclosure
- • 2U rack with 24 x 2.5-inch SFF hot-swap drive bays
- • 12 Gbps SAS connectivity for high-speed chaining to the 4662-7H2 control enclosure
- • Hot-swap drive bays and redundant canisters for maximum availability
- • Support for intermixing SAS SSDs and enterprise HDDs (10K RPM) in tiered storage pools
- • Distributed RAID (DRAID) with fast rebuild times and always-on data services
- • Scalable to petabyte-level effective capacity through hardware compression and deduplication
- • Full integration with IBM Storage Virtualize for unified management and orchestration
- • Enterprise-grade reliability with predictive failure analysis and hot-swap components
Technical Specifications
| Component | Specification |
|---|---|
| Model | 4662-24G (2U24 SFF SAS Expansion) |
| Form Factor | 2U rack |
| Drive Bays | 24 x 2.5-inch SFF hot-swap |
| Drive Support | SAS SSDs and enterprise HDDs (10K RPM) |
| Connectivity | 12 Gbps SAS chaining to 4662-7H2 control enclosure |
| Expansion Limit | Up to 12 SAS enclosures per 4662-7H2 system |
| Compatibility | FlashSystem 5300 (4662-7H2) NVMe control enclosure |
Priced Configuration –
| Feature Code | Description |
|---|---|
| 4662-24G | IBM FlashSystem 5200 SFF Expansion Enclosure |
| 9730 | Power Cord-PDU Connection |
| ACUB | 1.5m 12 GB SAS Cable (QTY=2) |
| ADN1 | Order Type1 Indicator - CTO |
| AHPA | AC Power Supply High Efficiency (Pair) |
| AHZD | ALL Flash Solution Indicator |
| AKCH | Standard S&H Indicator |
| AL80 | 1.92TB 12 GB SAS 2.5 Inch Flash Drive (QTY=12) |
| ALH0 | IBM Storage Expert Care Indicator |
| ALL5 | EC Premium 5 Year |
Virtualization, Security and Reliability
Every IBM 4662-24G FlashSystem 5300 2U24 SFF SAS Expansion Enclosure purchased from Data Tech Computer is backed by a full 60-day warranty for complete peace of mind.
Ready to Order This Affordable FS5300 Expansion Enclosure?
Data Tech Computer Services, Inc. Call 770-772-0200 or email sales@datatechcomputer.com IBM Business Partner since 1994 – Installation, migration and support available.
