Product Description

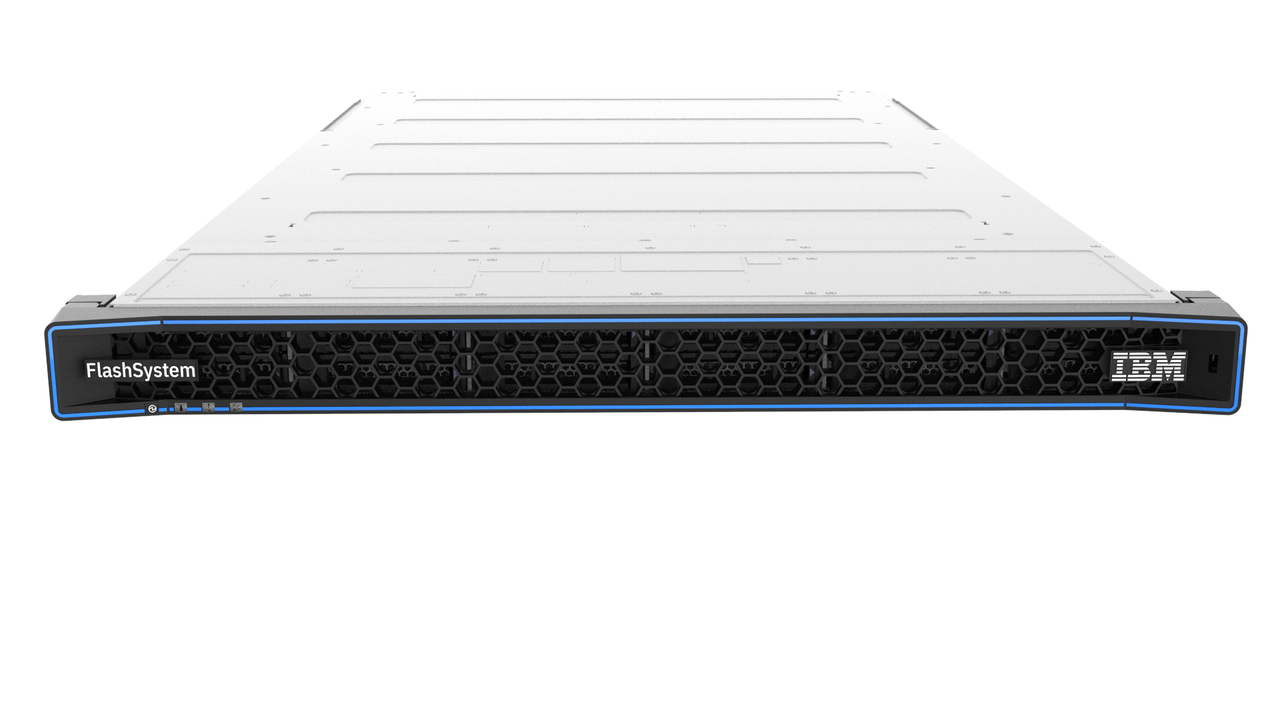

IBM 4662-7H2 FlashSystem 5300 NVMe Control Enclosure
The IBM 4662-7H2 FlashSystem 5300 NVMe Control Enclosure delivers powerful NVMe storage in an ultra-compact 1U form factor, optimized for entry-level and midrange enterprise workloads that demand high performance and low latency. Built for hybrid cloud and business-critical applications, this all-flash system supports up to 12 NVMe drives in the base enclosure and scales through SAS expansion enclosures while maintaining energy efficiency and intelligent data services.
Running IBM Storage Virtualize software, the 4662-7H2 provides native data reduction on FlashCore Modules, Distributed RAID, ransomware detection, and seamless integration with IBM Power Systems environments including IBM i. Flexible connectivity options including Fibre Channel, iSCSI, and NVMe over Fabrics make it ideal for edge deployments, remote offices, and hybrid infrastructures.
Key Features of the IBM 4662-7H2 FlashSystem 5300 NVMe Control Enclosure
- • 1U control enclosure with up to 12 NVMe drive slots for ultra-dense all-flash performance

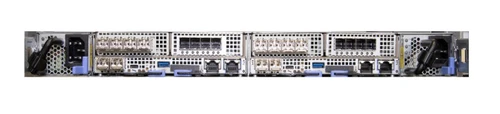

- • Dual active-active node canisters with 12-core Intel Ice Lake D processors
- • FlashCore Modules with built-in hardware compression, deduplication, and computational storage assists for ransomware protection
- • Support for industry-standard NVMe SSDs and optional Storage Class Memory (SCM) drives

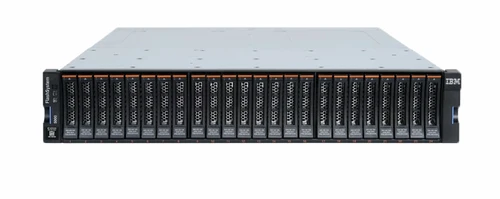

- • SAS expansion enclosures (2U12, 2U24, and 5U92) for scalable capacity
- • Flexible host connectivity: onboard 25/10 GbE (iSCSI/NVMe/TCP), optional 64/32 Gb FC
- • Scalable cache up to 512 GB total with battery backup for metadata and data protection
- • High-performance Distributed RAID with fast rebuild times and always-on data reduction
- • IBM Storage Virtualize management with REST API, Ansible, CSI, VMware integration, and modern GUI
- • Quantum-safe security features and enterprise-grade reliability for mission-critical environments
Technical Specifications
| Component | Specification |
|---|---|
| Model | 4662-7H2 (NVMe Control Enclosure) |
| Form Factor | 1U rack |
| Max Drives | 12 NVMe |
| Node Canisters | Dual active-active |
| Cache | Up to 512 GB total (battery protected) |
| Host Connectivity | Onboard 25/10 GbE, optional 64/32 Gb FC |
| Expansion | Up to 12 SAS enclosures (2U12 / 2U24 / 5U92) |
| Compatibility | FlashSystem 5300 series and IBM Power Systems |
Priced Configuration –
| Feature Code | Description |
|---|---|
| 4662-7H2 | IBM Storage FlashSystem 5300 NVMe Control Enclosure |
| 9730 | Power Cord-PDU Connection |
| ACSR | 5m OM3 Fiber Cable (QTY=8) |
| ADK2 | FS5300 18TBe Value Bundle |
| ADN1 | Order Type1 Indicator - CTO |
| AHPG | AC Power Supply (100-240v) Pair |
| AHZE | Hybrid Flash Indicator |
| AKCH | Standard S&H Indicator |
| ALB2 | 32GB FC 4-Port Adapter Cards (Pair) |
| ALEC | Encryption USB Flash Drives (Four Pack) |
| ALH0 | IBM Storage Expert Care Indicator |
| ALH3 | Standard Config Indicator feature code |
| ALL5 | EC Premium 5 Year |
| 8969-F24 | IBM Storage Networking SAN24B-6 (QTY=2) |
| 2464 | F24 32Gbps FlashSystem Value Bundle (QTY=2) |
| AKCH | Standard S&H Indicator (QTY=2) |
| ALH0 | Expert Care Indicator (QTY=2) |
| ALK5 | EC Advanced 5 Year (QTY=2) |
Virtualization, Security and Reliability
IBM Storage Virtualize delivers advanced features including logical volume management, workload mobility, orchestrated immutable snapshots, and Safeguarded Copy. Combined with Transparent Data Encryption, predictive failure analysis, and battery-protected cache, the 4662-7H2 ensures the highest levels of data protection and operational continuity for IBM Power Systems and IBM i environments.
Every IBM 4662-7H2 FlashSystem 5300 NVMe Control Enclosure purchased from Data Tech Computer is backed by a full 60-day warranty for complete peace of mind.
Ready to Order This Affordable FS5300 Storage System?
Data Tech Computer Services, Inc. Call 770-772-0200 or email sales@datatechcomputer.com IBM Business Partner since 1994 – Installation, migration and support available.
