Product Description

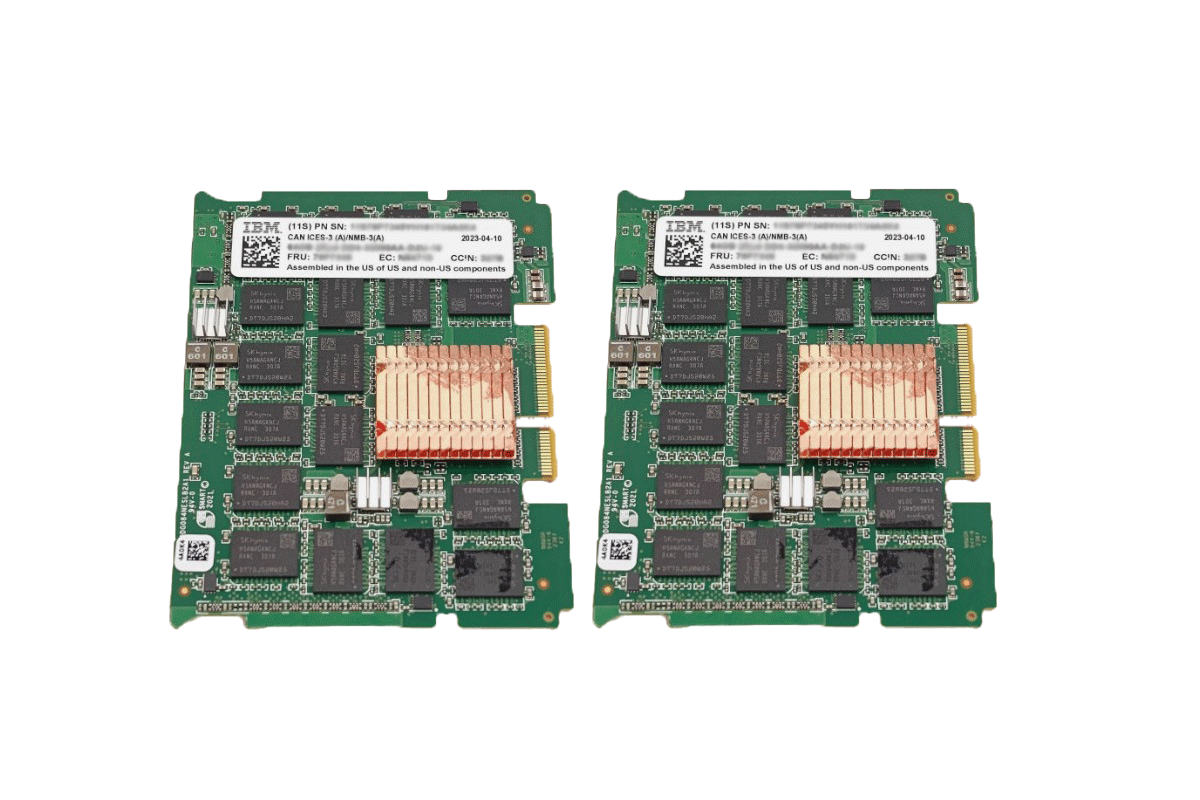

IBM EMBW 64GB DDR4 Memory for Power10 S1012
The IBM EMBW is a 64 GB DDR4 memory feature for the IBM Power S1012. It consists of two 32 GB modules.
Product Description
The IBM EMBW (feature code EMBW, part number 78P7318, CCIN 324F) is a 64 GB memory feature made of two 32 GB DDR4 modules. Each module is 3200 MHz with 8 Gb DRAM. The feature uses two memory slots on the Power S1012 9028-21B. The S1012 supports only one memory feature code in the system. Do not mix EMBW with EMBN or EMBY.
Features
- 64 GB capacity from two 32 GB modules
- 3200 MHz DDR4
- 8 Gb DRAM
- CCIN 324F
- Supported on Power S1012 9028-21B
- Installs in pairs
- 2 or 4 modules per system
Technical Specifications
- Feature Code: EMBW
- Part Number: 78P7318
- CCIN: 324F
- Capacity: 64 GB (2 × 32 GB)
- Speed: 3200 MHz
- DRAM: 8 Gb DDR4
- Form Factor: ISDIMM / RDIMM
- Slots Used: 2
Compatibility
The IBM EMBW 64GB DDR4 Memory is compatible with:
- Systems: IBM Power S1012 9028-21B rack and tower. The S1012 has four memory slots
- Operating systems: IBM i, AIX, VIOS, and Linux on Power
- Related features: EMBN (32 GB, 2 × 16 GB) and EMBY (128 GB, 2 × 64 GB) are the other S1012 features
- Limitations: Only one memory feature code is allowed in a 9028-21B. Install in pairs. First pair in P0-C6 and P0-C9. Second pair in P0-C7 and P0-C8. Not the EM6W feature used in S1014, S1022, and S1024 systems
Warranty
This product comes with a 60-day warranty covering parts and functionality.
