Product Description
IBM EM6N 32GB DDR4 Memory for Power10

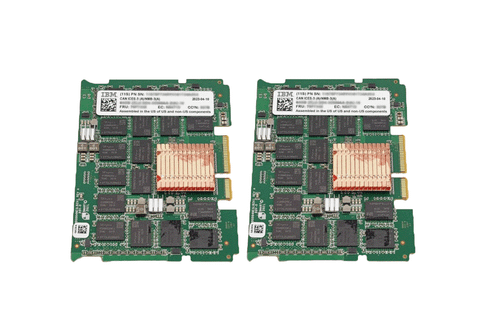

The IBM EM6N is a 32 GB DDR4 memory feature for IBM Power10 servers. It consists of two 16 GB DDIMMs.
Product Description
The IBM EM6N (feature code EM6N, part number 78P7343, CCIN 329A) is a 32 GB memory feature made of two 16 GB low-profile DDR4 DDIMMs. Each module is 3200 MHz with 8 Gb DRAM. The feature uses two DDIMM slots. It is supported on Power10 scale-out and enterprise systems that use DDR4 memory. Do not mix this DDR4 feature with DDR5 memory in the same system.
Features
- 32 GB capacity from two 16 GB DDIMMs
- 3200 MHz DDR4
- 8 Gb DRAM
- Low-profile (2U) DDIMM form factor
- CCIN 329A
- Supported on Power10 DDR4 systems
- Installs in pairs
Technical Specifications
- Feature Code: EM6N
- Part Number: 78P7343
- CCIN: 329A
- Capacity: 32 GB (2 × 16 GB)
- Speed: 3200 MHz
- DRAM: 8 Gb DDR4
- Form Factor: Low-profile DDIMM
- Slots Used: 2
Compatibility
The IBM EM6N 32GB DDR4 Memory is compatible with:
- Systems: IBM Power S1014 9105-41B, S1022 9105-22A, S1022s 9105-22B, S1024 9105-42A, Power E1050 9043-MRX, and Power E1080 9080-HEX. Also supported on Power L1022 9786-22H and L1024 9786-42H
- Operating systems: IBM i, AIX, VIOS, and Linux on Power
- Related features: EM6W (64 GB, 2 × 32 GB), EM6X (128 GB, 2 × 64 GB), and EM6Y (256 GB, 2 × 128 GB) are the larger DDR4 features in this family
- Limitations: Requires two empty DDIMM slots. Do not mix DDR4 and DDR5 in the same system. On systems with an RDX drive, only low-profile memory is supported. Follow the system memory plugging rules for equal fill and maximum feature-code count
Warranty
This product comes with a 60-day warranty covering parts and functionality.
