Product Description

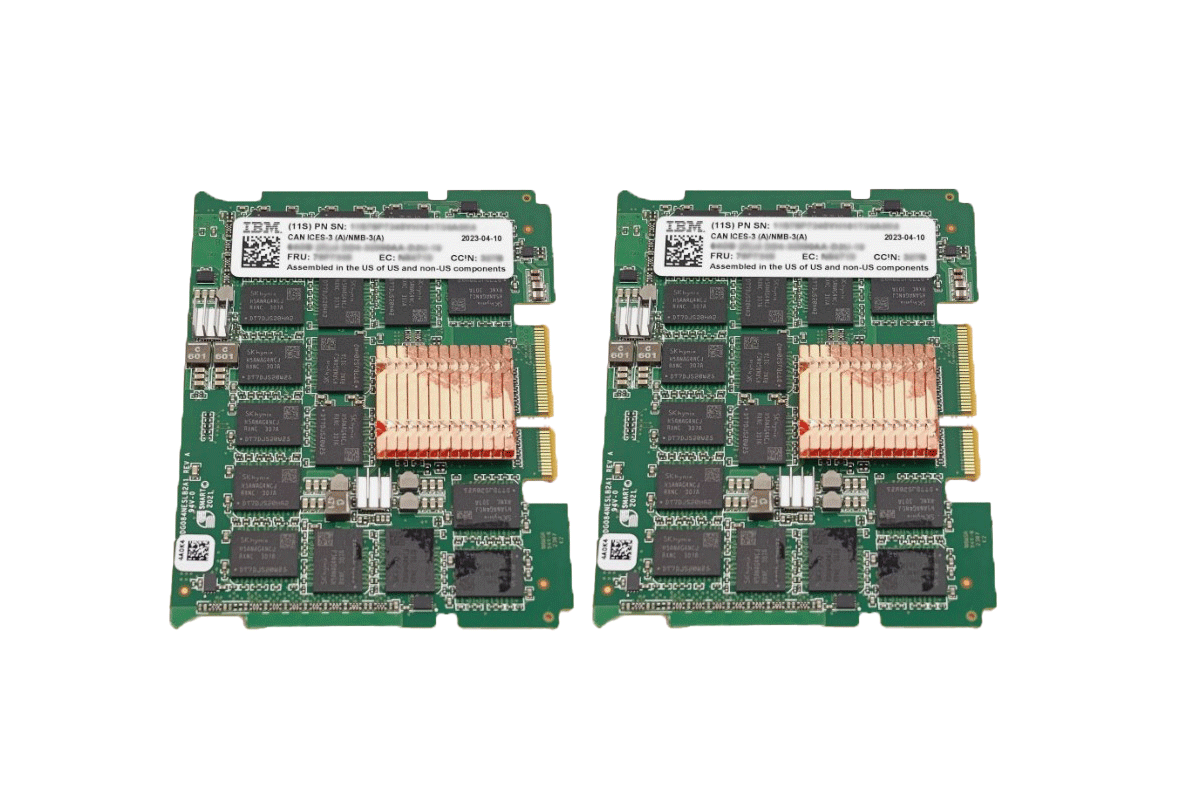

IBM EM5B 128GB DDR5 Memory for Power11
The IBM EM5B is a 128 GB DDR5 memory feature for IBM Power11 servers. It consists of two 64 GB DDIMMs.
Product Description
The IBM EM5B (feature code EM5B, part number 03HD896, CCIN 32A2) is a 128 GB memory feature made of two 64 GB low-profile DDR5 DDIMMs. Each module uses 16 Gb DRAM and runs at 4000 MHz or 4800 MHz depending on the processor type. The feature uses two DDIMM slots. It is the Power11 feature code for the same 64 GB DDR5 module ordered as EMFB on Power10. Do not mix this DDR5 feature with DDR4 memory in the same system.
Features
- 128 GB capacity from two 64 GB DDIMMs
- 4000 MHz or 4800 MHz DDR5
- 16 Gb DRAM
- Low-profile (2U) DDIMM form factor
- CCIN 32A2
- Supported on Power11 systems that accept DDR5
- Installs in pairs
Technical Specifications
- Feature Code: EM5B
- Part Number: 03HD896
- Related part: 03HD881
- CCIN: 32A2
- Capacity: 128 GB (2 × 64 GB)
- Speed: 4000 MHz or 4800 MHz
- DRAM: 16 Gb DDR5
- Form Factor: Low-profile (2U)
- Slots Used: 2
- Related Power10 feature: EMFB (same CCIN 32A2)
Compatibility
The IBM EM5B 128GB DDR5 Memory is compatible with:
- Systems: IBM Power S1112 9242-21B / 9242-21T, S1122 9824-22A, S1124 9824-42A, and other Power11 systems that accept low-profile DDR5 DDIMMs. Confirm support on the specific system before install
- Operating systems: IBM i, AIX, VIOS, and Linux on Power
- Related features: EM54 (64 GB, 2 × 32 GB), EM5G (256 GB low-profile), EM4M (256 GB full-height), and EM5J (512 GB) are the other DDR5 features
- Limitations: Requires two empty DDIMM slots. Do not mix DDR4 and DDR5 in the same system. All memory in the system must be the same height. Follow the system memory plugging rules
