Product Description

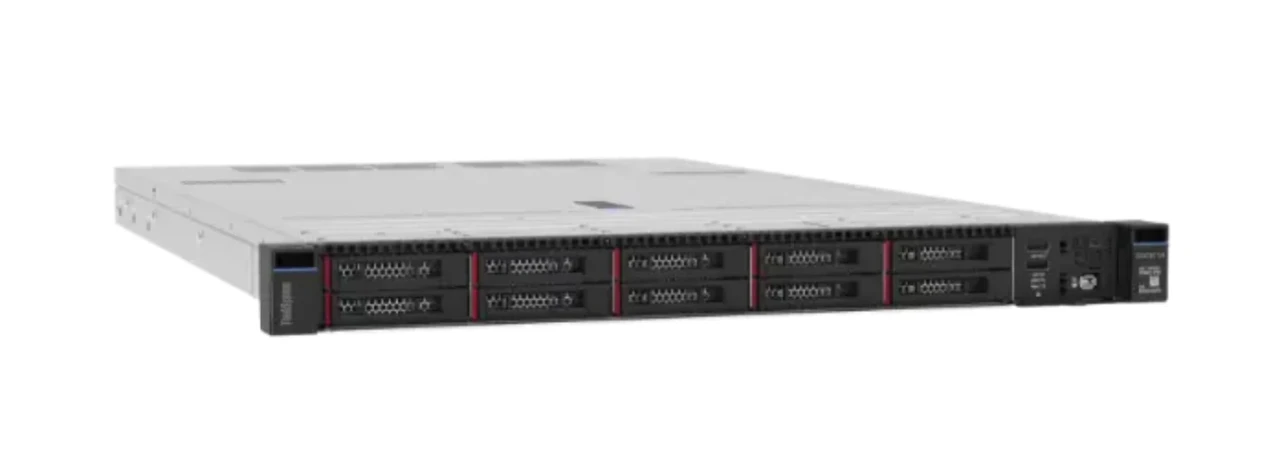

Lenovo ThinkSystem SR630 V4 16-Core 1U Server
Lenovo ThinkSystem SR630 V4 1U Rack Server – 16-Core Configuration
The Lenovo ThinkSystem SR630 V4 is a high-density 1U rack server configured with dual Intel Xeon 6714P processors for a total of 16 cores. This system includes 128 GB of TruDDR5 memory and 12.8 TB of mixed-use NVMe storage, making it suitable for virtualization, application hosting, and scale-out compute environments where rack space is limited.
This configuration uses the ThinkSystem 1U V4 10x2.5" chassis with a Gen5 NVMe backplane, dual 1300W Platinum power supplies, and a Broadcom 57412 10GbE 4-port OCP adapter. It ships with a 3-year base warranty plus Premier next-business-day response coverage and includes Red Hat Enterprise Linux subscription with Lenovo support.
Configuration Highlights
- Dual Intel Xeon 6714P processors (8 cores each, 4.0 GHz, 165W)
- 128 GB TruDDR5 6400 MHz memory (2 × 64 GB)
- 12.8 TB raw NVMe storage (4 × 3.2 TB Mixed Use PCIe 5.0 U.2 SSDs)
- 1U form factor with 10 × 2.5" chassis
- Broadcom 57412 10GBase-T 4-port OCP Ethernet adapter
- Dual 1300W Platinum hot-swap power supplies
- TPM 2.0 and XClarity management
- 3-year Premier NBD response + KYD add-on
- Red Hat Enterprise Linux 2-socket subscription with Lenovo support (3 years)
Key Features
- High-density 1U design for space-constrained data centers
- Latest-generation Intel Xeon 6 processors
- PCIe 5.0 NVMe storage for low-latency performance
- Redundant power supplies for improved availability
- XClarity Controller for remote management and monitoring
- Tool-less rail kit included for standard racks
- ENERGY STAR certified configuration
Technical Specifications
| Component | Details |
|---|---|
| Model | ThinkSystem SR630 V4 |
| Form Factor | 1U rack |
| Processors | 2 × Intel Xeon 6714P (8 cores, 4.0 GHz, 165W) |
| Total Cores | 16 |
| Memory | 128 GB (2 × 64 GB TruDDR5 6400 MHz RDIMM) |
| Storage | 4 × 3.2 TB Mixed Use NVMe PCIe 5.0 U.2 SSDs (12.8 TB raw) |
| Backplane | ThinkSystem 1U V4 4×2.5" NVMe Gen5 |
| Networking | Broadcom 57412 10GBase-T 4-port OCP Ethernet adapter |
| Power Supplies | 2 × 1300W Platinum CRPS hot-swap |
| Management | XClarity Controller with Platinum upgrade |
| Security | TPM 2.0 |
| Rails | ThinkSystem Toolless Slide Rail Kit V4 |
| Operating System | Red Hat Enterprise Linux (2-socket subscription included, 3 years) |
| Warranty | 3-year base + Premier NBD response + KYD add-on |
Compatibility
This Lenovo ThinkSystem SR630 V4 configuration supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, and VMware ESXi. The included Red Hat subscription provides operating system licensing and Lenovo support for three years.
Data Tech configures and tests this system for reliability. The server includes the listed warranty and support coverage. Contact our specialists for additional configuration options or questions about this SR630 V4 system.
