Product Description

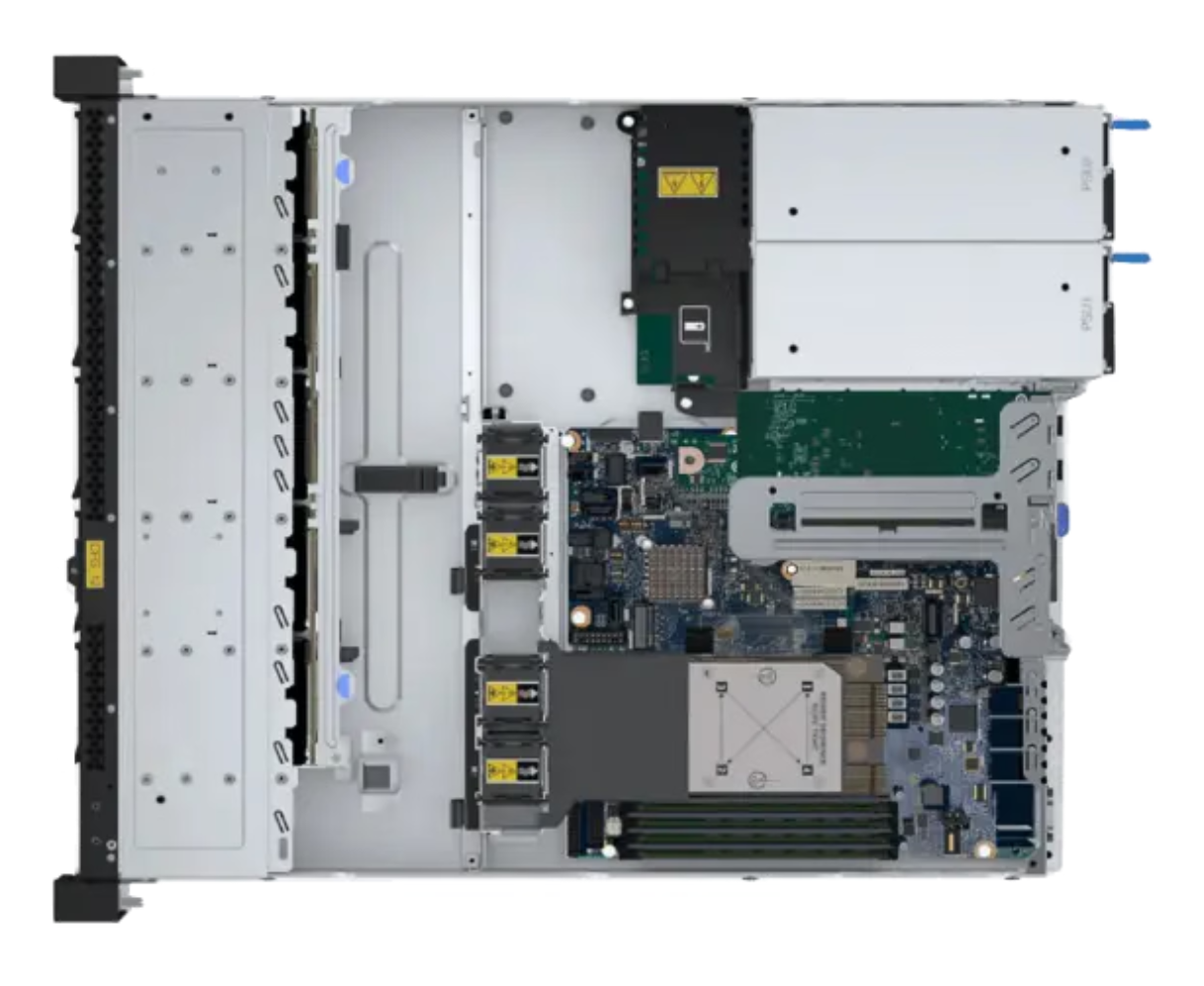

Lenovo ThinkSystem SR250 V3 1U Rack Server – 8-Core Configuration
The Lenovo ThinkSystem SR250 V3 is a compact 1U single-socket rack server configured with an Intel Xeon 6353P processor. This system includes 16 GB of TruDDR5 memory and 7.68 TB of Read Intensive SATA storage with a RAID controller, making it suitable for small business, branch office, and light enterprise workloads.
This configuration uses the SR250 V3 2.5" chassis with an 8x2.5" hot-swap backplane, dual 800W Titanium power supplies, and a Broadcom 5719 1GbE 4-port adapter. It ships with a 3-year base warranty plus Premier next-business-day response coverage and includes Windows Server 2025 Standard licensing options.
Configuration Highlights
- Single Intel Xeon 6353P processor (8 cores, 2.7 GHz, 65W)
- 16 GB TruDDR5 5600 MHz ECC memory
- 7.68 TB raw SATA storage (4 × 1.92 TB Read Intensive 2.5" SSDs)
- ThinkSystem RAID 540-8i PCIe Gen4 controller
- 1U form factor with 2.5" chassis
- Broadcom 5719 1GbE RJ45 4-port PCIe Ethernet adapter
- Dual 800W Titanium hot-swap power supplies
- TPM 2.0 with Secure Boot and XClarity management
- 3-year Premier NBD response + KYD add-on
- Windows Server 2025 Standard (16-core) licensing options included
Key Features
- Compact 1U single-socket design for entry-level and branch deployments
- Intel Xeon E-series processor for efficient performance
- Hot-swap SATA storage with hardware RAID
- Redundant Titanium power supplies
- XClarity Controller for remote management
- Tool-less friction rail kit included
- ENERGY STAR capable configuration
Technical Specifications
| Component | Details |
|---|---|
| Model | ThinkSystem SR250 V3 |
| Form Factor | 1U rack |
| Processor | 1 × Intel Xeon 6353P (8 cores, 2.7 GHz, 65W) |
| Total Cores | 8 |
| Memory | 16 GB (1 × 16 GB TruDDR5 5600 MHz ECC UDIMM) |
| Storage | 4 × 1.92 TB Read Intensive SATA 6Gb 2.5" SSDs (7.68 TB raw) |
| RAID | ThinkSystem RAID 540-8i PCIe Gen4 12Gb Adapter |
| Backplane | ThinkSystem SR250 Series 8x2.5" Hot Swap SAS/SATA |
| Networking | Broadcom 5719 1GbE RJ45 4-port PCIe Ethernet adapter |
| Power Supplies | 2 × 800W Titanium CRPS hot-swap |
| Management | XClarity Controller (Platinum) |
| Security | TPM 2.0 with Secure Boot |
| Rails | ThinkSystem Toolless Friction Rail v2 |
| Operating System | Windows Server 2025 Standard (16-core) options included |
| Warranty | 3-year base + Premier NBD response + KYD add-on |
Compatibility
This Lenovo ThinkSystem SR250 V3 configuration supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, and VMware ESXi. Windows Server 2025 Standard licensing options are included with the system.
Data Tech configures and tests this system for reliability. The server includes the listed warranty and support coverage. Contact our specialists for additional configuration options or questions about this SR250 V3 system.
