IBM 1956 283GB 10K RPM SAS SFF-2 Disk Drive part number 74Y4898 CCIN 19B7

The IBM 1956 is a 283 GB 10,000 rpm SAS hard disk drive in an SFF-2 carrier for IBM Power Systems running IBM i.

Product Description

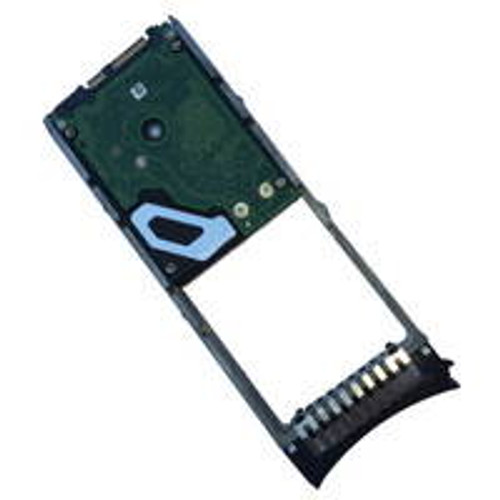

The IBM 1956 (feature code 1956, part numbers 00E6170 and 74Y4898, CCIN 19B7) is a 283 GB 10,000 rpm SAS disk drive mounted in a Generation-2 (SFF-2) 2.5-inch carrier. It is formatted with 528-byte sectors for IBM i and is designed for SFF-2 SAS bays such as those in the #5887 EXP24S Gen2 drawer. This enterprise-class drive provides reliable capacity for IBM i workloads on supported Power Systems.

Features

283 GB capacity
10,000 rpm rotational speed
SAS interface
SFF-2 (2.5-inch Gen2) carrier
528-byte sector formatting for IBM i
Enterprise-class reliability for 24x7 operation
Hot-swap capable in supported SFF-2 bays
Designed for IBM Power Systems running IBM i

Technical Specifications

Feature Code: 1956
Part Numbers / FRUs: 00E6170, 74Y4898
CCIN: 19B7
Capacity: 283 GB
Interface: SAS
Rotational Speed: 10,000 rpm
Form Factor: SFF-2 (2.5-inch)
Sector Size: 528-byte
Type: Enterprise Hard Disk Drive (HDD)
Operating System: IBM i

Compatibility

The IBM 1956 283GB 10K SAS SFF-2 Disk Drive is compatible with:

Drawers / Bays: SFF-2 SAS bays, including the IBM #5887 EXP24S Gen2 I/O drawer
Environments: IBM i on supported Power Systems
Limitations: Does not fit in SFF-1 bays such as #5802 / #5803 I/O drawers or system-unit (CEC) SFF-1 bays because of Gen1 vs Gen2 carrier differences. Do not mix with drives of a different capacity, speed, or sector format in the same array. Verify firmware levels and population rules via IBM documentation.
