    • Power 9 AIX

    Disk for Power9 AIX

    The IBM Power9 AIX Disk Drives category includes enterprise-grade SAS HDDs (10K/15K RPM), SAS SSDs (eMLC/MLC classes), and PCIe-attached NVMe SSDs (Gen3 x8 adapters or limited M.2/U.2 in specific configurations) optimized for AIX workloads on Power9 servers. Power9 systems (e.g., S922, S914, S924, E950, E980) support internal SFF-3 bays (typically 12–18) with SAS HDD/SSD via integrated RAID controllers, plus optional PCIe NVMe adapters (#EC5x series) for flash performance. Capacities range from 300 GB (HDD) to 6.4 TB (NVMe/SSD), with hot-swap carriers, RAID support, and full AIX compatibility (7.1 TL5+, 7.2 TL3+ for NVMe).

    Product Description

    IBM Power9 AIX Disk Drives deliver flexible, high-availability internal storage for AIX environments on Power9 servers, balancing performance, capacity, and reliability. SAS HDDs (SFF-3, 12 Gb/s) provide proven 10K/15K RPM for transactional, database, and mixed workloads, while SAS SSDs offer dramatically higher IOPS and lower latency for virtualization, analytics, and ERP applications. Power9 introduced PCIe-attached NVMe (via x8 adapters like #EC5G/#EC5B series) and limited M.2/U.2 NVMe (in S922/S924 configurations), enabling sub-100 μs latency and significantly higher throughput for flash-optimized AIX apps. Drives use feature codes (e.g., #ESxx for SSDs, #59xx/#ESxx for HDDs) with sector formats supporting AIX (512e/4Kn). Power9 supports internal SAS bays (via backplanes like #EJ1x) and external EXP24SX drawers; NVMe requires specific adapters and AIX levels (7.2 TL3+). All drives are IBM-qualified for endurance, power-loss protection, and integration with AIX mirroring, RAID (via integrated or VIOS), and PowerVM virtualization.

    Features

    • SAS HDDs: 10K/15K RPM for high-throughput random I/O, capacities from 300 GB to 1.8 TB+, RAID 0/1/5/6/10 support.
    • SAS SSDs: Enterprise eMLC/MLC variants, high endurance (1–10 DWPD), capacities from 387 GB to 3.84 TB+, read-intensive or mixed-use classes.

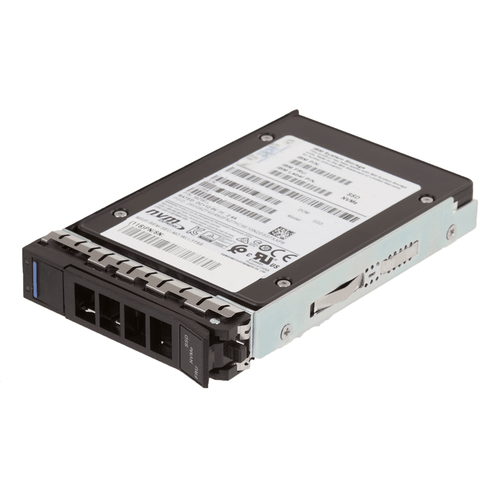

    • NVMe SSDs: PCIe Gen3 x8 adapters (#EC5x series), capacities 800 GB–6.4 TB, ultra-low latency, high IOPS (PCIe card or M.2/U.2 in select models).
    • Form factors: 2.5-inch SFF-3 (primary), limited 3.5-inch LFF via external drawers.
    • Hot-plug carriers, encryption options (select SSDs), and AIX-optimized sector formats.
    • Expansion: EXP24SX (#5887) for additional SAS bays; NVMe via PCIe adapters.

    Technical Specifications

    Specifications vary by feature code and Power9 model (e.g., S922/S924, E950/E980). Common types:



    • Latency: SAS SSD ~100–200 μs; NVMe sub-100 μs.
    • IOPS: SAS SSD hundreds of thousands; NVMe millions system-wide.
    • Sector Formats: 512e/4Kn for AIX native.

    Compatibility

    IBM Power9 AIX Disk Drives are qualified for:

    • Power9 Models: S922 (9009-22A/22G), S914 (9009-41A), S924 (9009-42A), E950/E980, and related scale-out/enterprise servers.
    • Operating Systems: AIX 7.1 TL5+ / 7.2 TL3+ (NVMe support), VIOS, Linux (RHEL/SUSE/Ubuntu).
    • Attachment: SAS via integrated backplanes (#EJ1x); NVMe via PCIe adapters (#EC5G/#EC5B series) or M.2/U.2 (select configs).
    • Adapters/Controllers: Integrated SAS RAID; PCIe NVMe adapters for flash.
    • Expansion: EXP24SX (24 SFF bays SAS); NVMe via PCIe adapters.
    • Legacy SAS: Fully supported internally; NVMe requires specific AIX levels and adapters.

    Verify exact feature codes, CCINs, firmware, and backplane options via IBM Sales Manual or resources for your Power9 model.

    Warranty

    This product comes with a 60-day warranty covering parts and functionality.
