Product Description

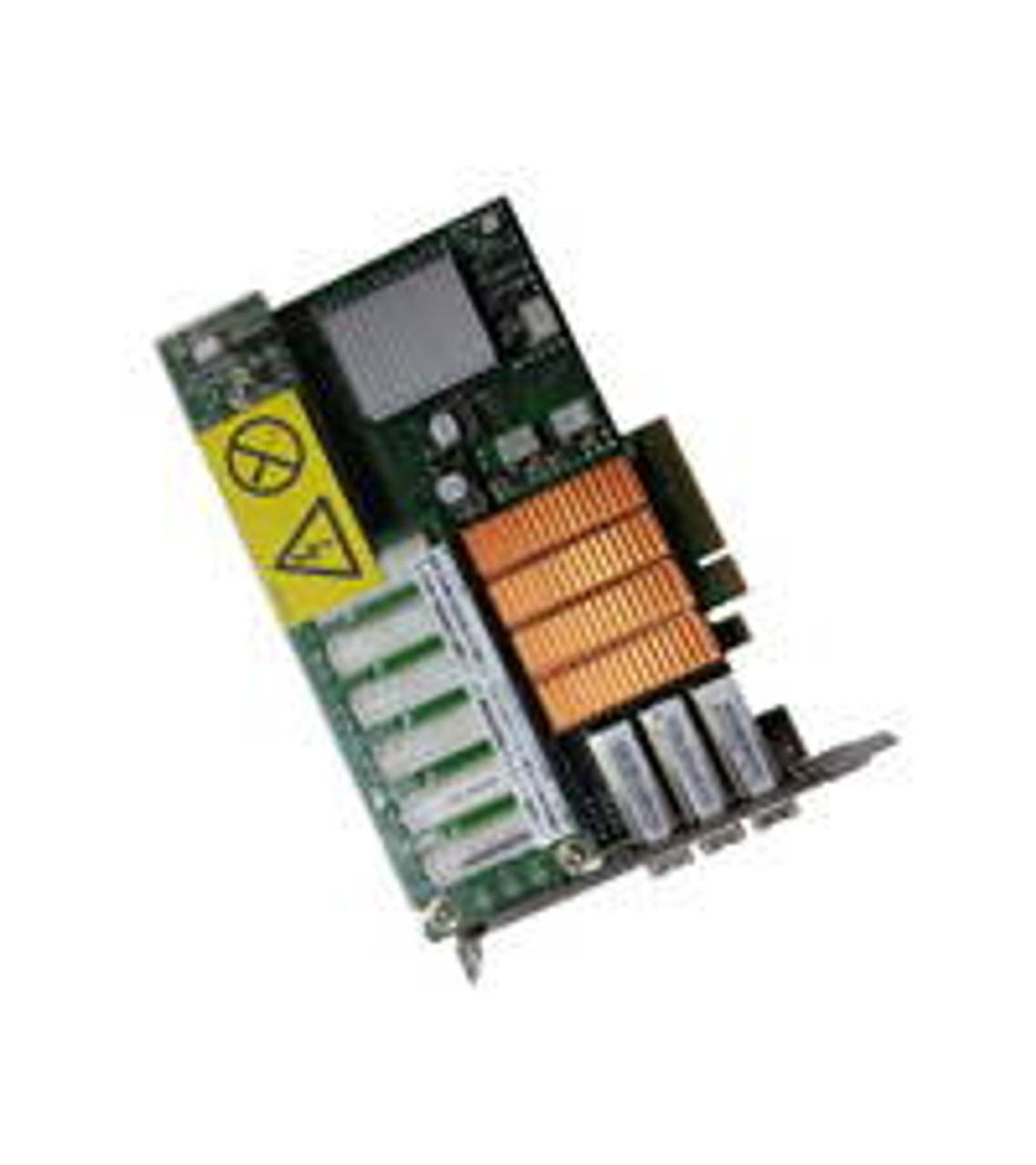

IBM 5913 PCIe2 1.8GB Cache RAID SAS Adapter Tri-port 6Gb
The IBM 5913 is a PCIe2 SAS RAID adapter with 1.8 GB write cache that must be installed in pairs for high-availability dual-controller configurations.
Product Description
The IBM 5913 PCIe2 1.8 GB Cache RAID SAS Adapter Tri-port 6 Gb provides high-performance HDD and SSD controller function using PCIe Gen2 technology. It has 1.8 GB of write cache protected by integrated flash memory with supercapacitors, eliminating the need for batteries. A pair of adapters is required to provide mirrored write-cache data and adapter redundancy. If the pairing is broken, write cache is disabled. The adapter has three Mini-SAS HD connectors for attachment of SAS drives in EXP24S, EXP12S, or 12X PCIe I/O drawers. The CCIN is 57B5. Only 512-byte sector drives are supported.
Features
- 1.8 GB write cache with flash and supercapacitor protection
- Dual-controller high-availability mode (installed in pairs)
- Mirrored write cache and RAID parity between adapters
- RAID 0, 5, 6, and 10 (AIX/Linux/VIOS)
- RAID 5 and 6 (IBM i)
- Three Mini-SAS HD connectors
- Path redundancy and automatic path switching
- 6 Gbps SAS speed
- No battery required
Technical Specifications
- Feature Code: 5913
- CCIN: 57B5
- Cache: 1.8 GB write cache
- RAID Levels: 0, 5, 6, 10 (AIX/Linux); 5, 6 (IBM i)
- Interface: PCIe2 x8
- SAS Speed: 6 Gbps
- Connectors: Three Mini-SAS HD
- Form Factor: Single-wide, full-height, short
- FRU: 00E7971, 00E9419 (examples)
Compatibility
The IBM 5913 PCIe2 SAS RAID Adapter is compatible with:
- Systems: IBM Power7 and Power8 servers; Power6 systems require placement in I/O expansion units
- Operating Systems: AIX 6.1 and 7.1 or later, IBM i 7.1 TR9 and 7.2 TR1 or later, Linux at supported levels
- Storage: SAS HDDs and SSDs (SFF or 3.5-inch) in 5887 EXP24S, 5886 EXP12S, or 5802/5803 12X PCIe I/O drawers
- Limitations: Must be installed in pairs. Write cache is disabled if pairing is broken. 4K sector drives are not supported. Confirm cable and enclosure requirements
Warranty
This product comes with a 60-day warranty covering parts and functionality.
