Product Description

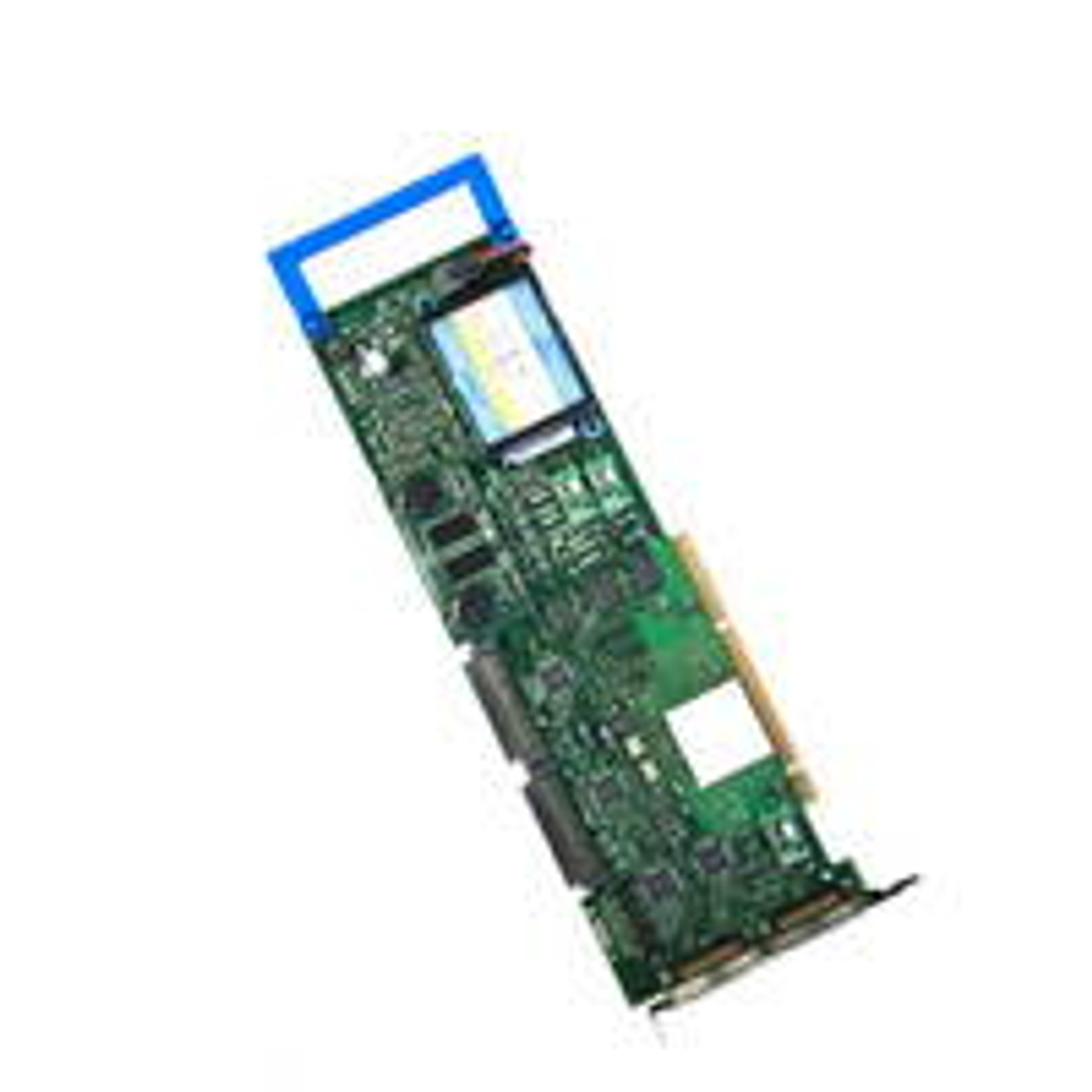

IBM 5776 PCI-X Disk Controller 90MB No IOP
The IBM 5776 is a PCI-X SCSI disk controller with 90 MB write cache that provides RAID-5 and RAID-6 protection without requiring an IOP.
Product Description
The IBM 5776 PCI-X Disk Controller provides a PCI-X SCSI disk controller with 90 MB of write cache. It supports RAID-5 and RAID-6 protection of disk units. The adapter has two Ultra320 SCSI buses, each with a bus data rate of up to 320 MB/s. It supports a maximum of 12 internal disk drives and up to two internal removable media devices (tape, DVD-ROM, or DVD-RAM). A minimum of three disk drives is required for RAID-5. A minimum of four disk drives is required for RAID-6. Feature codes 0648, 5737, and 5776 are physically the same adapter card; the different feature numbers indicate to configuration tools whether an IOP is used. The 5776 is the IOP-less version. The CCIN is 571B.
Features
- 90 MB write cache
- RAID-5 and RAID-6 support
- Two Ultra320 SCSI buses
- Up to 320 MB/s per bus
- IOP-less operation
- Supports internal disk and removable media
- Dual-mode capable adapter
Technical Specifications
- Feature Code: 5776
- CCIN: 571B
- Cache: 90 MB write cache
- RAID Levels: RAID-5, RAID-6
- SCSI: Dual Ultra320 (VHDCI)
- Slot: One available 3.3V long PCI or PCI-X slot
- FRU: 42R4855 (example)
Compatibility
The IBM 5776 PCI-X Disk Controller is compatible with:
- Systems: IBM Power6 servers including 8203-E4A and earlier Power5 / iSeries models that support PCI-X slots
- Operating Systems: IBM i V5R4 with V5R4M5 machine code or later
- Storage: Internal Ultra320 SCSI disk drives and removable media; EXP24 Disk Enclosure supported
- Limitations: Must be mirrored to be supported on IBM i. Maximum drive counts vary by enclosure. Confirm slot voltage and length requirements
Warranty
This product comes with a 60-day warranty covering parts and functionality.
