Product Description

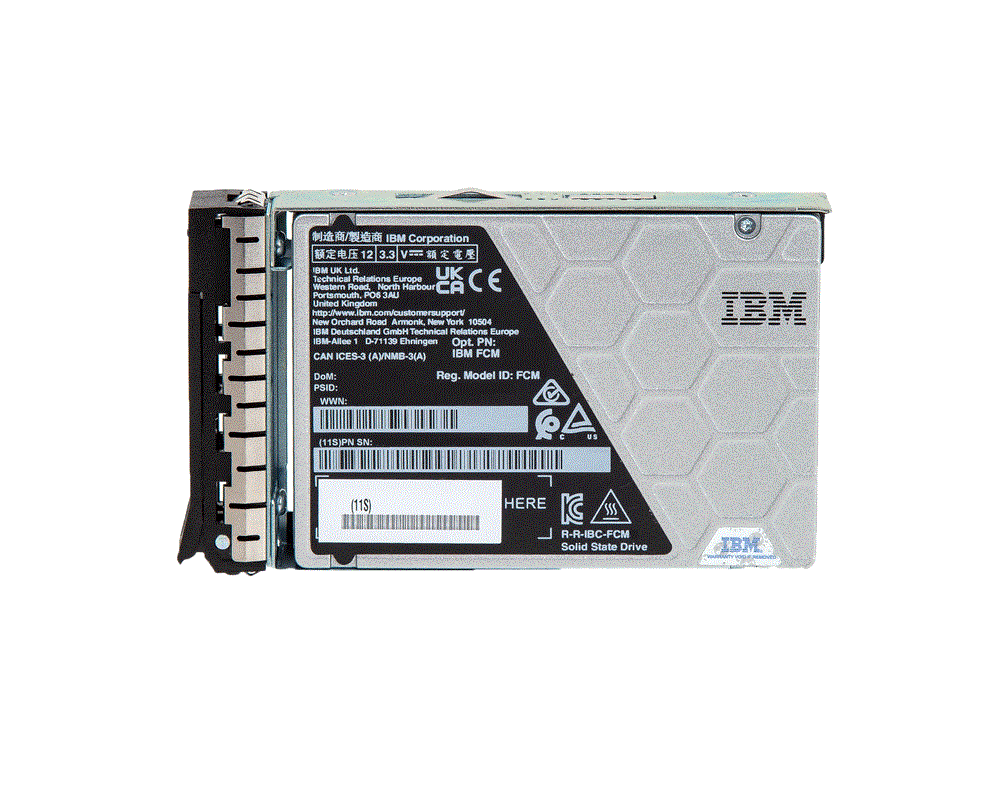

IBM AGSB 9.6TB FlashCore Module 3 FCM3 03JK077
The IBM AGSB is a 9.6 TB FlashCore Module 3 (FCM3) designed for IBM FlashSystem control enclosures.
Product Description
The IBM AGSB (feature code AGSB, part number 03JK077) is a 9.6 TB usable capacity FlashCore Module 3. It uses the NVMe interface and features hardware-accelerated compression and always-on AES-256 encryption. This module is intended for use in IBM FlashSystem 5200 and compatible control enclosures, delivering strong performance, density, and effective capacity through inline compression.
Features
- 9.6 TB usable capacity
- FlashCore Module 3 (FCM3) technology
- NVMe interface
- Hardware-accelerated inline compression
- Always-on AES-256 encryption
- High performance and consistent low latency
- Enterprise-class reliability for 24x7 operation
- Hot-swap capable in supported control enclosures
- Excellent storage density for mixed workloads
Technical Specifications
- Feature Code: AGSB
- Part Number / FRU: 03JK077
- Usable Capacity: 9.6 TB
- Interface: NVMe
- Form Factor: 2.5-inch
- Type: FlashCore Module 3 (FCM3)
- Encryption: Hardware AES-256
- Compatibility: IBM FlashSystem 5200 and FlashSystem 5300
Compatibility
The IBM AGSB 9.6TB FlashCore Module 3 is compatible with:
- Control Enclosures: IBM FlashSystem 5200 (4662-6H2 / UH6) and FlashSystem 5300 (4662-7H2)
- Environments: Systems running IBM Storage Virtualize
- Limitations: Follow IBM drive population and RAID guidelines (DRAID 6 recommended). Mixing with other FCM generations may have limitations. Verify firmware levels and support matrix via IBM documentation.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
