Product Description

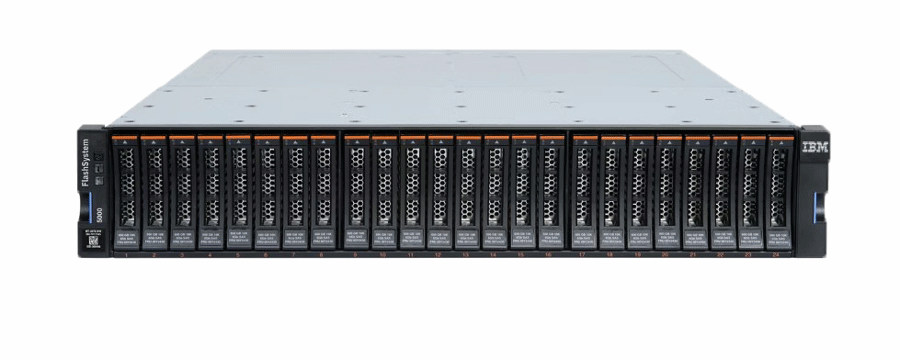

IBM 9848-AG8 FlashSystem 9200
The IBM 9848-AG8 is a 2U NVMe control enclosure for the IBM FlashSystem 9200 with a three-year warranty.
Product Description
The IBM 9848-AG8 is the three-year warranty model of the FlashSystem 9200 control enclosure. It is a 2U rack-mount system with 24 NVMe drive slots for IBM FlashCore Modules or industry-standard NVMe SSDs. Dual node canisters provide active-active processing, cache, and host connectivity. The system supports Fibre Channel and Ethernet host attachment plus SAS expansion enclosures. IBM Storage Virtualize software delivers data reduction, encryption, Easy Tier, and clustering of up to four control enclosures. Machine type 9848 indicates the three-year warranty option. Model AG8 is the standard control enclosure.
Features
- 2U form factor with 24 NVMe drive slots
- Dual redundant node canisters
- Dual redundant power supplies
- Support for FlashCore Modules with hardware compression
- Fibre Channel and 25 GbE host attachment options
- SAS expansion enclosure support
- Clustering of up to four control enclosures
- IBM Storage Virtualize software
Technical Specifications
- Machine Type-Model: 9848-AG8
- Form Factor: 2U
- Drive Bays: 24 NVMe
- Warranty: Three-year
- Processors: Dual node canisters (multiple cores per canister)
- Cache: Configurable from 256 GB upward
- Host Interfaces: Optional 16/32 Gb FC and 25 GbE adapters
- Expansion: SAS expansion enclosures (AFF 2U24 and A9F 5U92)
- Software: IBM Storage Virtualize
Compatibility
The IBM 9848-AG8 FlashSystem 9200 is compatible with:
- Expansion enclosures: 9846/9848/4666-AFF (2U24) and 9846/9848/4666-A9F (5U92) all-flash SAS expansion
- Host systems: IBM Power Systems and other platforms supporting Fibre Channel or iSCSI/iSER
- Operating systems: IBM i, AIX, Linux, Windows, VMware, and others at supported levels
- Drives: FlashCore Modules and industry NVMe SSDs in the control enclosure
- Adapters: 16 Gb and 32 Gb Fibre Channel pairs, 25 GbE RoCE and iWARP pairs, and 12 Gb SAS expansion cards
- Limitations: Requires compatible host adapters and cables. Confirm software level and drive support. Follow expansion chain and clustering rules. Related one-year model is 9846-AG8
Warranty
This product is the three-year warranty control enclosure model. Individual components and drives include a 60-day warranty covering parts and functionality when purchased separately.
