Product Description

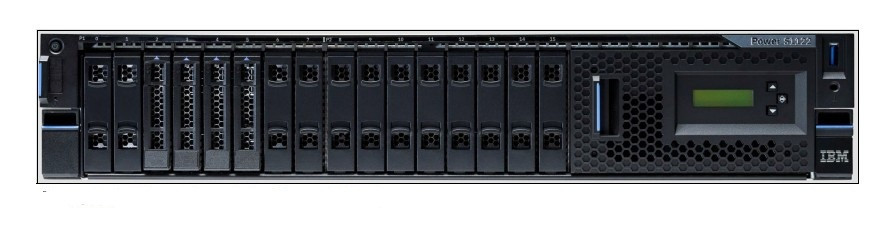

IBM Power S1122 (9824-22A) 8-Core Power11 iSeries Server High-Density 2U Scale-Out Performance
The IBM Power S1122 (9824-22A) 8-Core Power11 iSeries server delivers exceptional density and performance in a compact 2U rack form factor. Configured with dual ERGR 4-core Power11 eSCM processor modules (8 cores total), this system supports up to 4 TB of high-bandwidth DDR5 memory and fast NVMe storage while providing superior energy efficiency and reliability for IBM i environments.
With native IBM i support, PowerVM virtualization, Transparent Memory Encryption, quantum-safe cryptography, and in-core Matrix Math Accelerator (MMA) capabilities, the IBM Power S1122 9824-22A 8-Core Power11 iSeries server ensures secure, high-performance computing for demanding workloads. The system’s flexible configuration options allow precise tailoring to specific performance requirements.
Key Features of the IBM Power S1122 (9824-22A) 8-Core Power11 iSeries Server
- • Dual ERGR 4-core Power11 eSCM processor modules with SMT8 threading technology
- • Up to 4 TB DDR5 memory for dramatically increased bandwidth and capacity
- • Internal NVMe U.2 storage supporting up to 8 bays for high-speed data access
- • Up to 10 PCIe Gen5 slots for maximum I/O flexibility
- • Transparent Memory Encryption (TME) for hardware-level data protection
- • Quantum-safe cryptography and enhanced security features
- • In-core MMA acceleration for AI and machine-learning workloads
- • Enterprise BMC (eBMC) service processor with redundant hot-swap power supplies
Processor Configurations and Feature Codes
| Feature Code | Processor Description | Cores per Module | Frequency Range | Maximum System Cores |
|---|---|---|---|---|
| ERGR | 4-core Power11 eSCM processor | 4 | 3.6 – 4.0 GHz | 8 |
Priced Configuration -
| Feature Code | Description |
|---|---|
| 9824-22A | IBM Power S1122 Server |
| 0040 | Mirrored System Disk Level |
| 0267 | IBM i Operating System Partition Specify |
| 2145 | Primary OS - IBM i |
| 2319 | Factory Deconfiguration of 1-core (Qty 7) |
| 4650 | Rack Indicator |
| 5000 | Software Preload Required |
| 5557 | System Console-Ethernet LAN adapter |
| 6470 | Power Cord 1.8m (6-ft), Drawer to Wall |
| 9300 | Language Group Specify – US English |
| 9441 | New IBM i License Core Counter |
| AKCH | Standard S&H Indicator |
| ALH0 | Expert Care Indicator |
| EB3R | AC Titanium Power Supply – 1000W (100-127V/200-240V) |
| EB76 | IBM i 7.6 Indicator (supports IBM i 7.6) |
| ECBY | SAS AE1 Cable 4m – HD Narrow 6Gb Adapter to Enclosure |
| EEPS | IBM i Enablement for 9824-22A w/ two #ERGR Processors |
| EHSE | Power IBM i Segment Indicator |
| EJ1X | Storage Backplane with four NVMe U.2 drive slots |
| EJ2C | PCIe3 LP 12Gb x8 SAS Tape HBA Adapter |
| EJBS | Front IBM Bezel for 8 NVMe-bays Backplane Rack-Mount |
| ELYF | ES4E Load Source Specify (3.2 TB 4K NVMe U.2 SSD PCIe4 for IBM i) |
| EM54 | 64 GB (2×32 GB) DDIMMs, 4000/4800 MHz DDR5 Memory |
| EN2Y | PCIe LP 4-Port 1GbE Adapter |
| ENSB | 400 GB IBM i NVMe Load Source |
| EPVT | PowerVM Enterprise Edition |
| ERBZ | Single Bulk Packaging Specify |
| ERFQ | 1 core Processor Activation for eSCM (Qty 8) |
| ERGR | 4-core Typical 3.6 to 4.0 GHz Power11 Processor (Qty 2 → 8 cores total) |
| ES4E | Enterprise 3.2 TB SSD PCIe4 NVMe U.2 module for IBM i (Qty 2 → 6.4 TB total) |
| EU0K | Operator Panel LCD Display |
| EU19 | Cable Ties & Labels |
| EXA3 | 3-Year Advanced Expert Care Maintenance |
Memory, Storage, and I/O Specifications
| Component | Specification |
|---|---|
| Memory | Up to 4 TB DDR5 (32 DDIMM slots) |
| Internal Storage | Up to 8 NVMe U.2 bays supporting a maximum of 51.2 TB flash storage |
| PCIe Slots | Up to 10 slots (mix of Gen5 x8/x16 and Gen4) |
| Form Factor | 2U rack-mountable |
| Dimensions | 86.5 mm x 482 mm x 813 mm (3.4" x 18.97" x 32") |
Virtualization and Reliability
Every IBM Power S1122 (9824-22A) 8-Core Power11 iSeries server purchased from DataTechComputer.com is backed by a full 60-day warranty for complete peace of mind.
Ready to Order This Power11 S1122 System?
Data Tech Computer Services, Inc. Call 770-772-0200 or email sales@datatechcomputer.com IBM Business Partner since 1994 – Installation, migration and support available.
