Product Description
IBM Power S1122 9824-22A Power11 8-Core iSeries Server Max

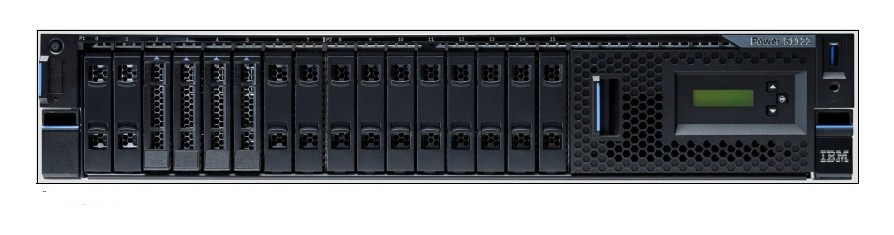

The IBM Power S1122 9824-22A is the maximum-configured Power11 8-Core iSeries server, offering the highest performance and capacity available in the S1122 8-core lineup. It is optimized for medium to large IBM i environments requiring substantial memory, storage, and unrestricted concurrent users in a compact rack-mount form factor.
Product Description
The IBM Power S1122 9824-22A Power11 8-Core iSeries Server Max configuration includes an 8-core POWER11 processor (3.0–3.9 GHz), 512 GB DDR5 memory, 6.4 TB raw Enterprise NVMe storage (8 × 800 GB U.2 SSDs with RAID protection), IBM i 7.6 preloaded with 8 IBM i processor entitlements and unlimited user entitlements, PowerVM Enterprise Edition, dual redundant power supplies, and a full complement of enterprise features. This Max configuration maximizes the S1122 platform’s capabilities while remaining in a space-efficient rack-mount form factor.
Features
- 8-core POWER11 processor (3.0–3.9 GHz)
- 512 GB DDR5 memory (high-density configuration)
- 6.4 TB raw Enterprise NVMe storage (8 × 800 GB U.2 SSDs)
- IBM i 7.6 preloaded with 8 IBM i processor entitlements and an unlimited user entitlement
- PowerVM Enterprise Edition for virtualization
- Dual redundant power supplies with redundant power cords
- 4-port 1 GbE adapter and system console Ethernet LAN adapter
- Operator panel LCD display and front NVMe bezel
- Hot-plug NVMe bays and concurrent maintenance support
Priced Configuration –
| Feature Code | Description |
|---|---|
| 9824-22A | IBM Power S1122 Server |
| 0040 | Mirrored System Disk Level |
| 0267 | IBM i Operating System Partition Specify |
| 2145 | Primary OS - IBM i |
| 4650 | Rack Indicator |
| 5000 | Software Preload Required |
| 5557 | System Console-Ethernet LAN adapter |
| 6458 | Power Cord 4.3m (14-ft), Drawer to IBM PDU (250V/10A) (QTY=2) |
| 9300 | Language Group Specify – US English |
| 9441 | New IBM i License Core Counter |
| AKCH | Standard S&H Indicator |
| ALH0 | Expert Care Indicator |
| EB3N | AC Titanium Power Supply – 2000W (200-240V) (QTY=2) |
| EB76 | IBM i 7.6 Indicator (supports IBM i 7.6) |
| EEPS | IBM i Enablement for 9824-22A w/ two #ERGR Processors |
| EHSE | Power IBM i Segment Indicator |
| EJ1X | Storage Backplane with four NVMe U.2 drive slots |
| EJ2C | PCIe3 LP 12Gb x8 SAS Tape HBA Adapter |
| EJBS | Front IBM Bezel for 8 NVMe-bays Backplane Rack-Mount |
| ELYG | ES3G/ES5H Load Source Specify (6.4 TB 4K NVMe U.2 SSD PCIe4 for IBM i) |
| EM5G | 256 GB (2×128 GB) DDIMMs, 4000/4800 MHz DDR5 Memory (QTY=4) |
| EN2Y | PCIe LP 4-Port 1GbE Adapter |
| ENSB | 400 GB IBM i NVMe Load Source |
| EPVT | PowerVM Enterprise Edition |
| ERBZ | Single Bulk Packaging Specify |
| ERFQ | 1 core Processor Activation for eSCM (Qty 8) |
| ERGR | 4-core Typical 3.6 to 4.0 GHz Power11 Processor (Qty=2) |
| ES5H | Enterprise 6.4 TB SSD PCIe4 NVMe U.2 module for IBM i (Qty=4) |
| EU0K | Operator Panel LCD Display |
| EU19 | Cable Ties & Labels |
| EXA3 | 3-Year Advanced Expert Care Maintenance |
Compatibility
The IBM Power S1122 9824-22A Power11 8-Core iSeries Server Max is compatible with:
- Operating Systems: IBM i 7.6 (preloaded with 8 processor entitlements and unlimited users), AIX 7.3+, Linux (RHEL/SUSE/Ubuntu)
- Storage/Expansion: Additional NVMe U.2 drives and EXP drawers
- Networking: Built-in Ethernet + optional PCIe adapters
- Limitations: 8-core configuration optimized for medium to large IBM i workloads
Verify exact configuration, firmware levels, and entitlement requirements via IBM documentation for your specific Power Systems model.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
