Product Description

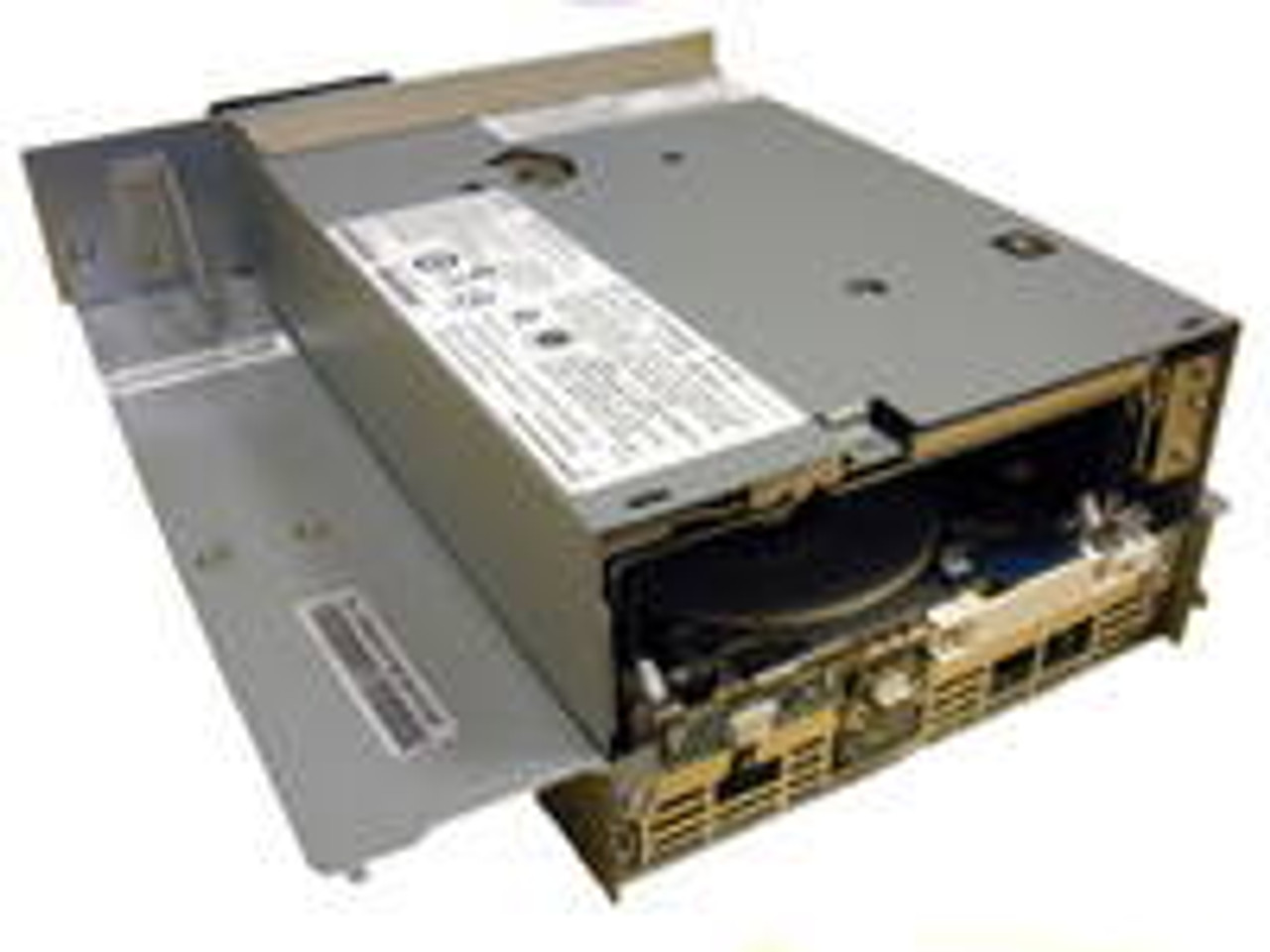

IBM 3555 AGLC LTO-9 Ultrium 9 Full-High Fibre Channel Tape Drive for TS4300
The IBM AGLC is a full-height LTO Ultrium 9 Fibre Channel tape drive for the IBM TS4300 Tape Library.
Product Description
The IBM AGLC (feature code AGLC, part number 02XX417) is an LTO Ultrium 9 full-high tape drive with two 8 Gb Fibre Channel ports. It installs in an IBM TS4300 Tape Library, machine type 3555, models L3A and E3A. The drive writes LTO-9 cartridges at 18 TB native and up to 45 TB compressed (2.5:1). Native data rate on the full-high drive is up to 400 MB/s. It also reads and writes LTO-8 cartridges. Feature AGLA is the related half-high 8 Gb Fibre Channel LTO-9 drive. Feature AGLD is the related full-high 12 Gb SAS LTO-9 drive.
Features
- LTO Ultrium 9 full-high tape drive
- Dual-port 8 Gb Fibre Channel
- 18 TB native capacity per LTO-9 cartridge
- Up to 45 TB compressed capacity at 2.5:1
- Native data rate up to 400 MB/s
- Reads and writes LTO-8 cartridges
- Hot-swap capable in a supported TS4300 drive sled
- Library-managed encryption support on LTO-9 media
- Enterprise-class reliability for unattended backup
Technical Specifications
- Feature Code: AGLC
- Part Number / FRU: 02XX417
- Machine Type: 3555
- Description: LTO Ultrium 9 Full-High Fibre Channel Tape Drive
- Interface: Dual-port 8 Gb Fibre Channel
- Form Factor: Full-high
- Native Capacity: 18 TB (LTO-9)
- Compressed Capacity: Up to 45 TB (2.5:1)
- Native Transfer Rate: Up to 400 MB/s
- Media Read/Write: LTO-9 and LTO-8
- Related Drives: AGLA (LTO-9 HH 8 Gb FC, 02XX413), AGLB (LTO-9 HH 12 Gb SAS, 02XX411), AGLD (LTO-9 FH 12 Gb SAS, 02XX415)
Compatibility
The IBM AGLC LTO-9 Full-High Fibre Channel Tape Drive is compatible with:
- Libraries: IBM TS4300 Tape Library 3555-L3A base module and 3555-E3A expansion module. Fibre Channel LTO-9 drives are also used in TS4300 Expert Care libraries 5544-L8A and 5544-E8A
- Drive mix: One full-high drive uses two half-high slots. A module can hold one full-high drive plus one half-high drive, or three half-high drives
- Hosts: IBM Power Systems with a supported Fibre Channel adapter, and other hosts with a supported 8 Gb FC HBA
- Software: IBM i, AIX, and Linux backup applications that support LTO-9 in a TS4300
- Media: LTO-9 data cartridges and LTO-8 data cartridges. Use a universal Ultrium cleaning cartridge
- Limitations: Not a stand-alone drive. Does not fit TS3100 or TS3200 libraries. Does not read LTO-7 or earlier cartridges. Fibre Channel cables are ordered separately. Confirm library firmware and host adapter support before install
Warranty
This product comes with a 60-day warranty covering parts and functionality.
