Ethernet LAN/WAN

Enhance your IBM Power Systems and AS/400 setups with our selection of reliable Ethernet LAN/WAN adapters. These PCI and PCIe-based IOAs provide essential network connectivity, supporting speeds from standard Ethernet to 10Gbps Gigabit and beyond. Options include single-port, dual-port, and quad-port configurations for copper (RJ45/UTP) or fiber (LC Duplex), with compatibility across legacy iSeries, AS/400, and various Power Systems generations (Power 5 through Power 11 where applicable). Adapters deliver full-duplex performance, IEEE 802.3 compliance, and features like multi-protocol WAN support or high-speed LAN attachment.

Available IBM Ethernet LAN/WAN Adapters

Model/Feature	Part Number	Ports	Speed	Interface/Type	Bus	Description
IBM 2617	85F9107	1	Ethernet (IEEE 802.3)	Copper	Not specified	High-performance Ethernet/IEEE 802.3 Network Adapter for reliable server connectivity in IBM AS/400 environments.
IBM 2721	-	2	Multi-protocol WAN	WAN	PCI	PCI Two Line WAN MultiProtocol Communications IOA; supports up to two ports; attaches to MFIOP; compatible with V.24/EIA232 cables (#0348/#0349).
IBM 2743	-	1	1Gbps	Ethernet	PCI	1Gbps PCI Ethernet IOA for attaching iSeries servers to IEEE 802.3Z high-speed Ethernet TCP/IP LANs; backward compatible with 100Mbps via switches.
IBM 2772	-	2	Up to 56K (V.90 Async PPP), 14.4K fax	WAN/Modem	Not specified	Dual WAN/Modem Adapter with two RJ11 ports; supports V.90 56K async PPP and fax applications; connects via telephone cable.
IBM 5275	- (equiv. FC 5769)	1	10Gbps	Ethernet SR	PCIe LP	PCIe Low-Profile 10GbE SR 1-port Adapter; uses LC Duplex connector for high-performance fiber connectivity.

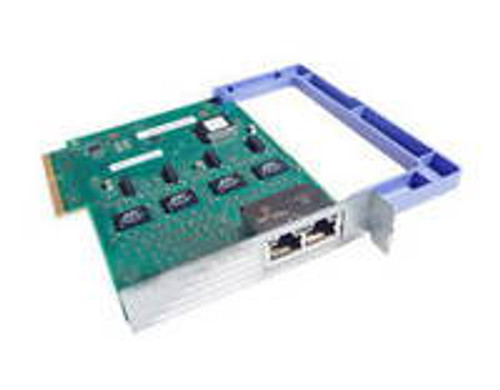

IBM 1824	-	4	1Gbps	Ethernet HEA	Daughter Card	Quad-port 1 Gb Host Ethernet Adapter (HEA) Daughter Card; copper RJ45 connections; virtualizable into LPARs; integrated I/O for CEC enclosure.
IBM 2723	-	1	Ethernet	Ethernet IEEE 802.3	PCI	PCI Ethernet IEEE 802.3 Adapter; supports half-duplex or full-duplex modes; provides Ethernet V2 and IEEE 802.3 MAC plus IEEE 802.2 LLC.
IBM 2724	-	1	16/4Mbps	Token-Ring	PCI	PCI 16/4Mbps Token-Ring Adapter; supports attachment to 16/4Mbps Token-Ring networks; provides IEEE 802.5 MAC and IEEE 802.2 LLC.
IBM 2742	-	2	Multi-protocol WAN	WAN	PCI	PCI Two-Line WAN IOA; supports up to two multiple protocol communications ports; compatible with V.24/EIA232 cables (#0348/#0349).
IBM 2744	-	1	100Mbps (also 16/4Mbps)	Token-Ring	PCI	100Mbps PCI Token-Ring IOA; provides single attachment to 100Mbps, 16Mbps, or 4Mbps Token-Ring networks; supplies IEEE 802.5 MAC.
IBM 2745	-	2	Multi-protocol WAN	WAN	PCI	PCI Two Line WAN IOA; supports up to two multiple protocol communications ports; compatible with V.24/EIA232 cables (#0348/#0349).
IBM 2760	-	1	1Gbps	Ethernet UTP	PCI	PCI 1Gbps Ethernet UTP IOA; attaches to IEEE 802.3Z high-speed 1Gbps Ethernet LANs; offers performance improvements over standard LAN solutions.

Compatibility Information

These IBM Ethernet LAN/WAN adapters are compatible with a wide range of IBM Power Systems (including Power 5, 6, 7, 8, 9, 10, 11) and legacy AS/400/iSeries models. Many are PCI/PCIe IOAs designed for direct attachment to Ethernet TCP/IP LANs, Token-Ring networks, or WAN/multi-protocol communications. They support full-duplex operations, IEEE standards, and features like Operations Console over LAN where applicable. Adapters suit internal installation in system units or I/O drawers, providing versatile networking for enterprise environments running IBM i, AIX, or Linux.
