Product Description

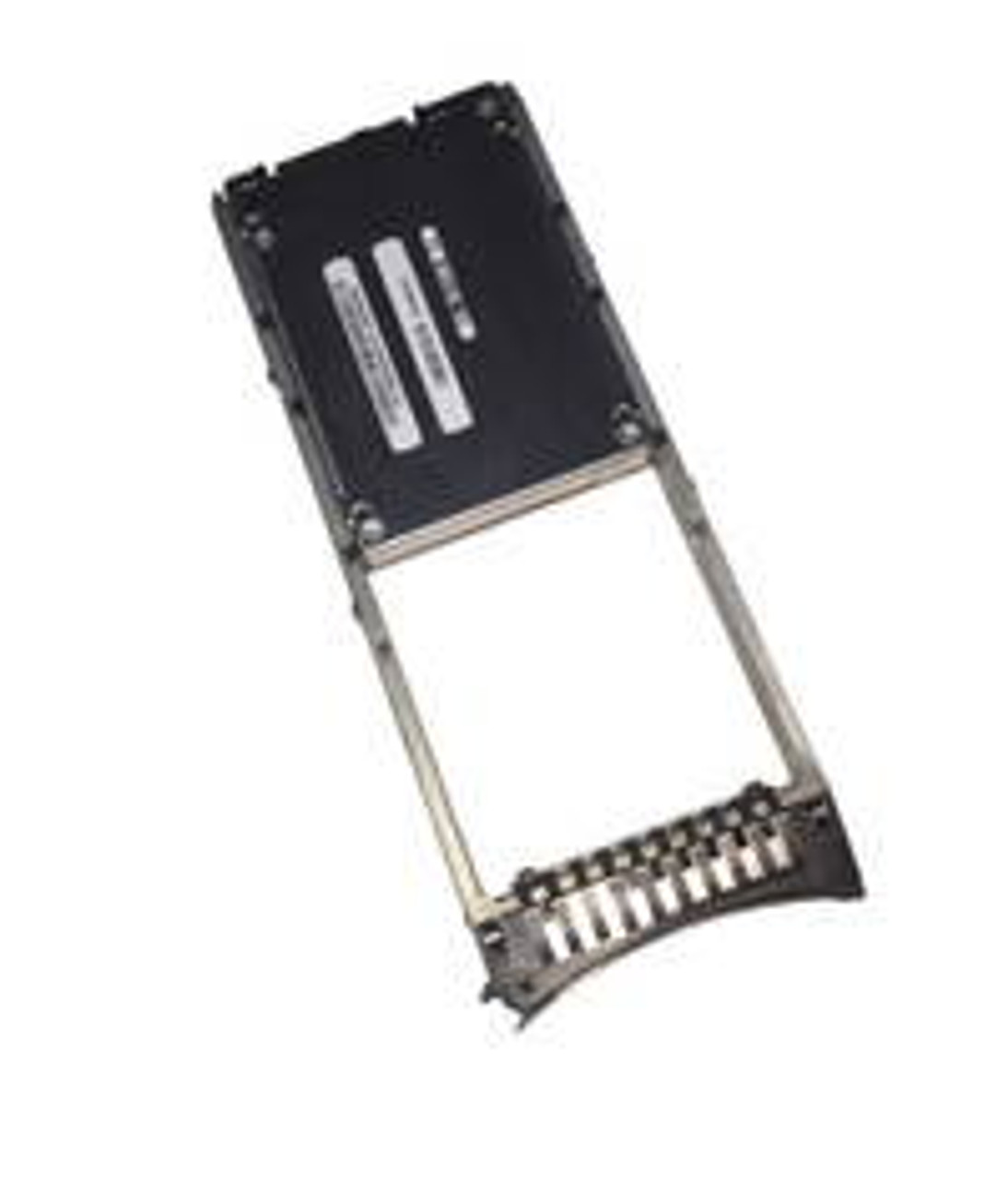

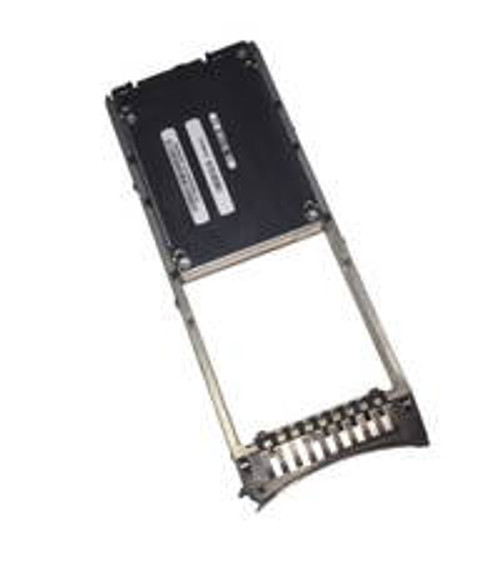

IBM ESNQ 571GB 15K RPM SAS SFF-2 4K Cached Disk Drive for IBM i part number 01LU584 CCIN 5B47
The IBM ESNQ is a 571 GB 15,000 RPM SAS hard disk drive in an SFF-2 form factor designed for IBM Power Systems running IBM i.
Product Description of IBM Power9 ESNQ
The IBM ESNQ (feature code ESNQ, part number 01LU584, CCIN 5B47) is a 571 GB 15K RPM SAS disk drive on a Gen-2 SFF-2 carrier. It ships formatted with 4K (4224-byte) sectors. If reformatted to 4096-byte sectors, usable capacity is 600 GB. The drive includes a 256 MB DRAM cache that can improve performance compared with earlier non-cached disk drives. Feature ESNR is the physically related AIX/Linux version.
Features
- 571 GB capacity (4224-byte format)
- 15,000 RPM
- 256 MB DRAM cache
- 4K (4224-byte) sector formatting
- SFF-2 (2.5-inch) form factor
- SAS interface
- Can be reformatted to 4096-byte sectors (600 GB)
- Hot-swap capable in supported SFF-2 bays
- Optimized for IBM i workloads
Technical Specifications
- Feature Code: ESNQ
- Part Number / FRU: 01LU584
- CCIN: 5B47
- Capacity: 571 GB (4224-byte); 600 GB if reformatted to 4096-byte
- Rotation Speed: 15,000 RPM
- Cache: 256 MB DRAM
- Interface: SAS
- Form Factor: SFF-2 (2.5-inch)
- Sector Size: 4K (4224-byte)
- Type: Cached Hard Disk Drive (HDD)
- Operating System: IBM i
Compatibility
The IBM ESNQ 571GB 15K RPM SAS SFF-2 4K Cached Disk Drive is compatible with:
- Systems / drawers: IBM POWER8 and POWER9 systems with available SFF-2 SAS bays, including EXP24SX expansion drawers
- Environments: IBM i
- Array rules: Can be combined with non-cached drives of the same capacity and sector size. Cannot be mixed in the same array with a same-capacity drive using a different sector size
- Limitations: Fits only SFF-2 bays. Not supported in the EXP24S drawer (#5887 or #EL1S). Does not fit POWER8/POWER9 system-unit SFF-3 bays or older SFF-1 drawers. Verify firmware levels and population rules via IBM documentation.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
