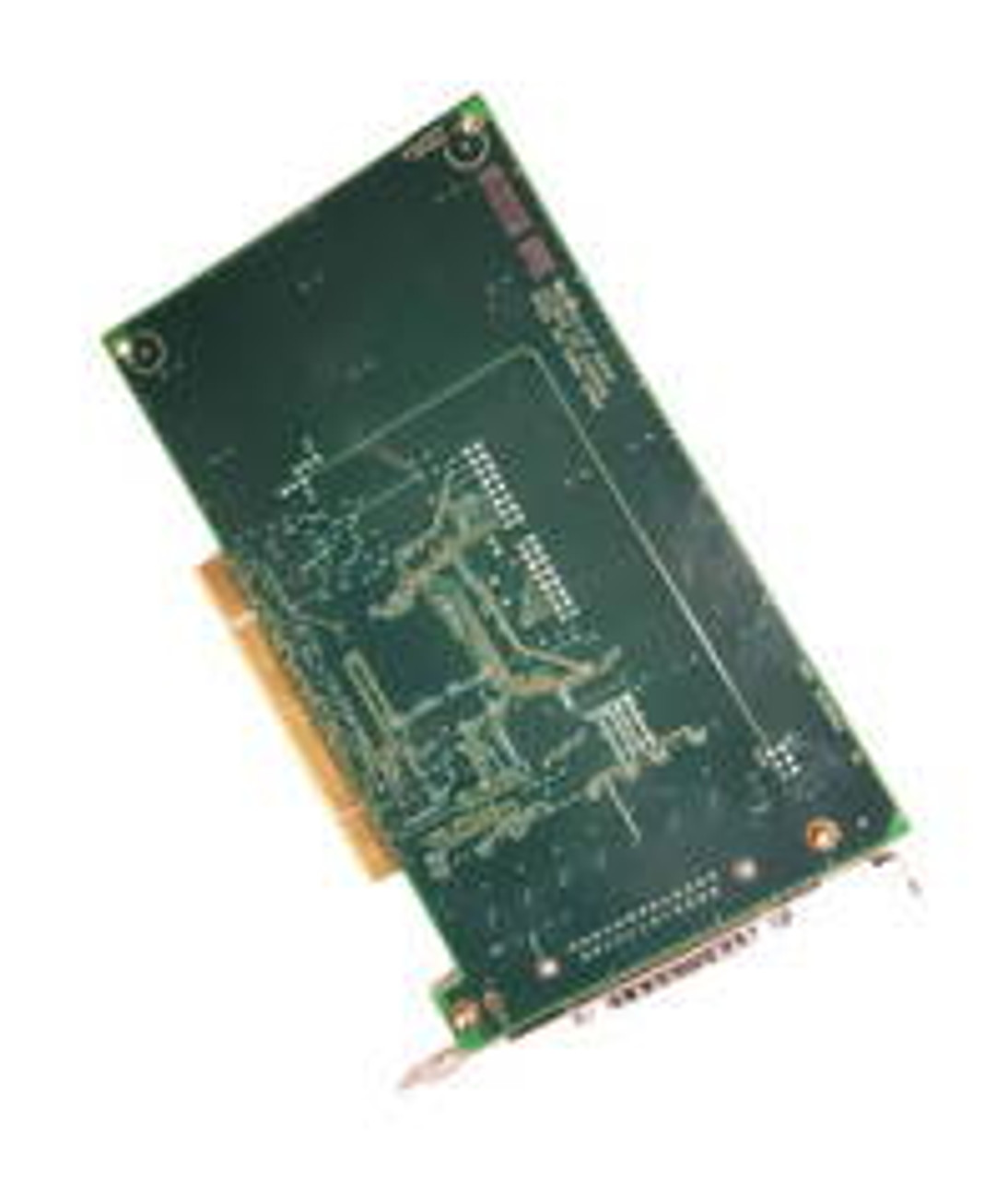

IBM 2722 PCI Twinaxial Workstation IOA

IBM 2722 PCI Twinaxial Workstation IOA

• Twinax

IBM 2722 Twinaxial Workstation IOA provides support for 40 5250-type displays or printers. A cable with an eight-port expansion box comes with the adapter. Each port supports seven attached devices allowing for 56 attached devices of which only 40 can be active. #2722 is used when additional PCI twinaxial workstation controllers are required. One IOP/PCI card slot is required. #2722 supports the 5250 Express Data Stream enhancements when attached to an IBM 5250 Express adapter (ISA, PCI or PC Card). The 5250 Express Data Stream provides nearly twice the throughput to 5250 Express Adapters, compared to throughput to other 5250-type devices. If all devices on the Twinaxial Workstation IOA (up to 7) are 5250 Express Adapters, then the media throughput increases to nearly four times more than the media throughput of other 5250-type devices.

For models: 170, 600, 620, 720, 820, 830, S20.
