Product Description

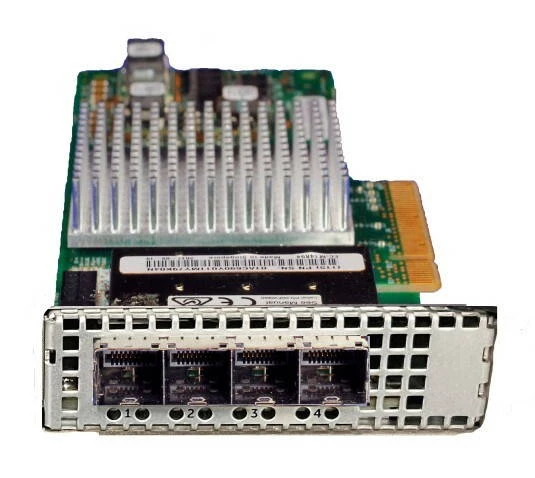

IBM ALBQ SAS Expansion Enclosure Attach Card (Pair)
The IBM ALBQ is a pair of 12 Gb SAS expansion enclosure attach cards designed for the IBM FlashSystem 5200. It enables connection of SAS expansion enclosures to increase storage capacity.
Product Description
The IBM ALBQ (feature code ALBQ) supplies a matched pair of 12 Gb SAS expansion enclosure attach cards for the IBM FlashSystem 5200 (machine type 4662, models 6H2 and UH6). These cards provide the necessary SAS connectivity to attach supported expansion enclosures (models 12G, 24G, and 92G), allowing the system to scale capacity beyond the control enclosure. Each card supports active SAS ports for expansion chains, and the pair enables redundant, high-availability attachment of up to 20 expansion enclosures (depending on configuration rules).
Features
- Pair of 12 Gb SAS expansion enclosure attach cards
- 12 Gbps SAS connectivity for expansion enclosures
- Supports attachment of FlashSystem 5200 expansion enclosures (12G LFF, 24G SFF, and 92G high-density)
- Enables capacity scaling beyond the control enclosure
- Hot-plug capable in supported FlashSystem node canisters
- Full integration with IBM Storage Virtualize
- Provides redundant paths when installed as a pair
- Distinct from the SAS host attachment adapter (feature ALBP)
Technical Specifications
- Feature Code: ALBQ
- Description: SAS Expansion Enclosure Attach Card (Pair)
- Port Speed: 12 Gbps SAS
- Function: Attachment of SAS expansion enclosures
- Supported Expansions: 4662-12G, 4662-24G, 4662-92G
- Compatibility: IBM FlashSystem 5200 (4662-6H2 / 4662-UH6)
- Maximum: Supports up to 20 expansion enclosures (configuration dependent)
Compatibility
The IBM ALBQ SAS Expansion Enclosure Attach Card (Pair) is compatible with:
- Storage Systems: IBM FlashSystem 5200 (machine type 4662, models 6H2 and UH6)
- Expansion Enclosures: 4662-12G (LFF), 4662-24G (SFF), 4662-92G (High-Density)
- Environments: Systems running IBM Storage Virtualize
- Limitations: Must be installed in matching pairs across node canisters. Follow IBM SAS chain and population rules. Requires compatible 12 Gb mini-SAS HD cables. Verify exact slot placement, cable lengths, and firmware requirements via IBM documentation.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
