Product Description

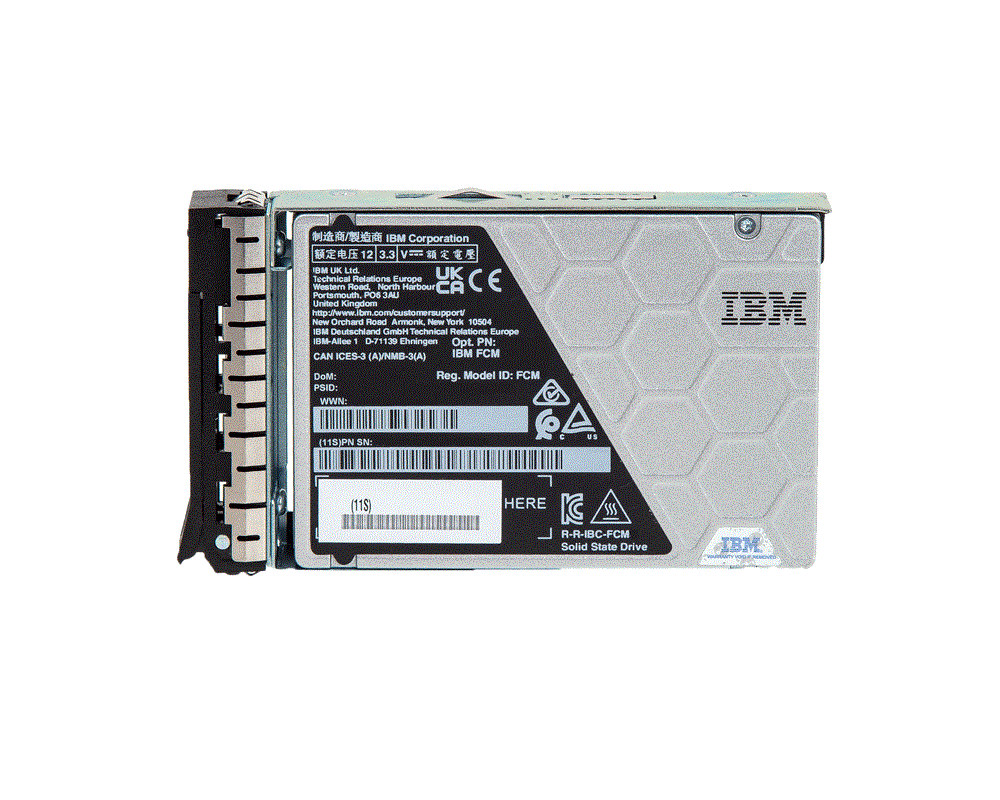

IBM ADSA 4.8TB NVMe FlashCore Module 3 for FlashSystem 7300 03JK162
The IBM ADSA is a 4.8 TB FlashCore Module 3 designed for IBM FlashSystem 7300 control enclosures.
Product Description
The IBM ADSA (feature code ADSA, part number 03JK162) is a 4.8 TB usable FlashCore Module 3 (FCM3). It uses the NVMe interface in a 2.5-inch, 15 mm form factor and includes hardware-accelerated inline compression and always-on AES-256 encryption. IBM rates FCM3 4.8 TB modules at 21.99 TB effective capacity. Feature AGSA is the related 4.8 TB FCM3 feature for FlashSystem 5200 and 5300. Feature AHS9 is the related 4.8 TB FCM3 feature for FlashSystem 9500.
Features
- 4.8 TB usable capacity
- 21.99 TB effective capacity (FCM3 rating)
- FlashCore Module 3 (FCM3) technology
- NVMe interface
- Hardware-accelerated inline compression
- Always-on AES-256 encryption
- Hot-swap capable in supported control enclosures
- Enterprise-class reliability for 24x7 operation
Technical Specifications
- Feature Code: ADSA
- Part Number / FRU: 03JK162
- Usable Capacity: 4.8 TB
- Effective Capacity: 21.99 TB
- Interface: NVMe
- Form Factor: 2.5-inch, 15 mm
- Type: FlashCore Module 3 (FCM3)
- Encryption: Hardware AES-256
- Compression: Hardware inline
- Enclosure Quantity: Up to 24 per FlashSystem 7300 control enclosure
Compatibility
The IBM ADSA 4.8TB NVMe FlashCore Module 3 is compatible with:
- Systems: IBM FlashSystem 7300 control enclosures, machine types 4657-924 and 4657-U7D
- Software: IBM Storage Virtualize on the supported FlashSystem 7300 enclosure
- Related modules: AGSA (FlashSystem 5200 / 5300) and AHS9 (FlashSystem 9500) are the 4.8 TB FCM3 features for those platforms
- Array rules: All drives in an array must be the same type and capacity
- Limitations: Fits supported FlashSystem NVMe FCM bays only. Does not fit SAS SFF bays or IBM Power Systems SAS/NVMe U.2 server bays. Empty NVMe slots require a drive blank. Confirm firmware level and population rules before install
Warranty
This product comes with a 60-day warranty covering parts and functionality.
