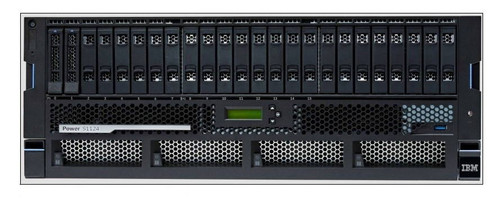

IBM Power S1124 9824-42A Power11 60-Core AIX Server
The IBM 9824-42A S1124 is a 4U Power11 scale-out server configured for AIX. It uses two 30-core POWER11 processor modules for 60 cores, DDR5 memory, and enterprise NVMe storage in a rack-mount form factor.
Product Description
The IBM 9824-42A S1124 Power11 60-Core AIX Server comes configured with a 60-core POWER11 processor (two #EP3Y 30-core modules, 2.8–3.95 GHz), 256 GB DDR5 memory, 1.6 TB enterprise NVMe storage for AIX/Linux, PowerVM Enterprise Edition, four redundant power supplies, a 2-port 10 GbE adapter, and a full set of enterprise features. The server supports hot-plug components and is a larger upgrade path from older Power8, Power9, and Power10 AIX systems. Memory can be expanded well beyond the base configuration, up to 8 TB DDR5 on the S1124.
Features
- 60-core POWER11 processor (two 30-core modules)
- 256 GB high-speed DDR5 memory in this configuration
- 1.6 TB enterprise NVMe storage with mirrored protection
- PowerVM Enterprise Edition
- Four redundant power supplies with redundant power cords
- 2-port 10 GbE adapter and system console on HMC
- Operator panel LCD display and front NVMe bezel
- Hot-plug components and concurrent maintenance support
IBM Power11 9824-42A Priced Configuration –
| Feature Code | Description |
|---|---|
| 9824-42A | IBM Power S1124 Server |
| 0265 | AIX Operating System Partition Specify |
| 2146 | Primary OS - AIX |
| 5000 | Software Preload Required |
| 6458 | Power Cord 4.3m, Drawer to IBM PDU (250v/10A) (QTY=4) |
| 9300 | Language Group Specify – US English |
| 9440 | New AIX License Core Counter (QTY=60) |
| AKCH | Standard S&H Indicator |
| ALH0 | Expert Care Indicator |
| EB3S | AC Titanium Power Supply – 1600W (200-240V) (QTY=4) |
| EB46 | 10GbE Optical Transceiver SFP+ SR (QTY=2) |
| EBF8 | 1 Core Processor Activation Pools 2.0 or Static for DCM (QTY=60) |
| EC72 | PCIe4 2-Port 25/10/1 GbE RoCE SFP28 Adapter |
| EHSD | Power AIX Segment Indicator |
| EJ1Y | Storage Backplane with eight NVMe U.2 drive slots |
| EJBU | Front IBM Bezel for 16 NVMe-bays Backplane Rack-Mount |
| EM54 | 64 GB (2×32 GB) DDIMMs, 4000/4800 MHz DDR5 Memory (QTY=4) |
| EP3Y | 30-core Typical 2.8 to 3.95 GHz Power11 Processor (QTY=2) |
| EPVT | PowerVM Enterprise Edition (QTY=60) |
| ES5A | Enterprise 800GB SSD PCIe4 NVMe U.2 module for AIX (QTY=2) |
| ESWK | AIX Update Access Key (UAK) (QTY=39) |
| EU0K | Operator Panel LCD Display |
| EXPM | 3-Year Advanced Expert Care Maintenance |
| 5765-G98 | IBM AIX 7 Standard Edition Per Processor (QTY=60) |
| 5773-SM3 | 3-Year SWMA for AIX Standard Edition Per Processor (QTY=60) |
| 5765-VE4 | IBM PowerVM V4 Per Processor Core (QTY=60) |
| 5773-PVE | 3-Year SWMA for PowerVM Per Processor Core (QTY=60) |
Compatibility
The IBM 9824-42A S1124 Power11 30-Core AIX Server is compatible with:
- Operating systems: AIX 7.3 with supported TLs and service packs. AIX 7.2 with supported TLs in Power9 compatibility mode. Linux on Power when mixed partitions are required
- Minimum AIX with virtual I/O: AIX 7.3 TL 7300-02 SP2 or AIX 7.2 TL 7200-05 SP8
- Minimum AIX with direct I/O: AIX 7.3 TL 7300-02 SP4 or AIX 7.2 TL 7200-05 SP10
- Storage / expansion: Additional NVMe U.2 drives for AIX/Linux and supported drawers
- Networking: 2-port 10 GbE plus optional PCIe adapters
- Limitations: 48-core S1124 using two #EP3X modules. Maximum 8 TB DDR5 and 16 NVMe U.2 bays on 9824-42A. AIX 7.2 LPARs run in Power9 compatibility mode. Match firmware, HMC level, and AIX TL/SP to feature EP3Y
Ready to Order This Affordable Power11 Server?
Data Tech Computer Services, Inc. Call 770-772-0200 or email sales@datatechcomputer.com IBM Business Partner since 1994 – Installation, migration and support available.
