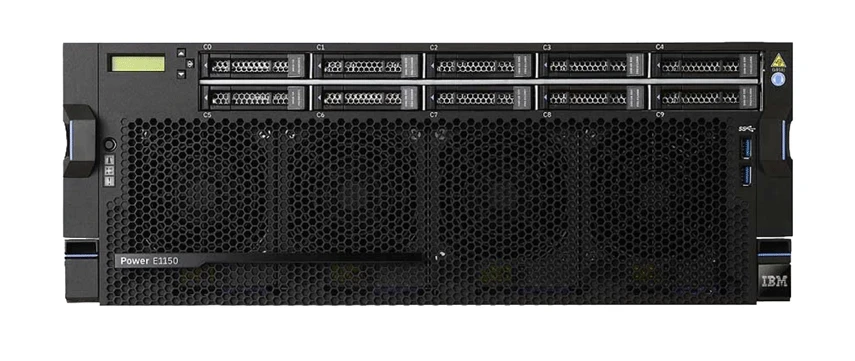

IBM 9043-MRU E1150 48-Core Power11 AIX System
The IBM 9043-MRU E1150 is a 4U Power11 midrange server configured for AIX. This build uses two 24-core POWER11 processor modules for 48 active cores.
Product Description
The IBM 9043-MRU E1150 48-Core Power11 AIX System uses two #EPEY processor modules. Each module has 24 active cores plus 2 spare cores, at 3.3–4.2 GHz. The base memory configuration is 256 GB DDR5, which meets the eight-module minimum for a two-processor E1150. The system supports AIX and Linux. IBM i is not supported on 9043-MRU. Memory can grow to 16 TB, and the chassis can take two more processor modules of the same feature.
Features
- 48 active Power11 cores from two 24-core modules
- 2 spare cores per processor module
- 256 GB DDR5 memory in this configuration
- Up to 10 NVMe U.2 bays
- 11 PCIe slots, 8 Gen5-capable
- PowerVM for AIX and Linux partitions
- Transparent Memory Encryption and on-chip Matrix Math Accelerator
- Capacity on Demand and Power Enterprise Pools 2.0
- Upgrade path from supported Power10 E1050 systems
Specifications
| Feature Code | Description |
|---|---|
| 9043-MRU | IBM Power E1150 Server |
| 0265 | AIX Partition Specify |
| 2146 | Primary OS – AIX |
| 4558 | Power Cord to PDU/UPS (QTY=4) |
| 4650 | Rack Indicator, Not Factory Integrated |
| 5000 | Software Preload |
| 9300 | Language Group Specify - US English |
| 9440 | New AIX License Core Counter (QTY=48) |
| AKCH | Standard S&H Indicator |
| ALH0 | Expert Care Indicator |
| EB39 | Power Supply - 2300W for Server (200-240 VAC) (QTY=4) |
| EB46 | 10GbE Optical Transceiver SFP+ SR (QTY=2) |
| EC6K | PCIe2 2-Port USB 3.0 Adapter |
| EC72 | PCIe4 2-Port 25/10/1 GbE RoCE SFP28 Adapter |
| EHSD | Power AIX Segment Indicator |
| EJ3Q | Backplane 10 NVMe for 9043-MRU |
| EM2A |
256GB DDR5 memory activation |
| EM5P |
64GB (2 x 32GB) DDIMM (4U) 4000MHZ 16GBIT DDR5 (QTY=8) |
| EM71 |
Active Memory Mirroring (AMM) for MRU |
| EPEX | 16-core Typical 3.50 to 4.20 GHz Power11 DCM, plus 2 spare cores (QTY=2) |
| EPLY | Front Heatsink + TIM PAD (For MRU) |
| EPLZ | Rear Heatsink + TIM PAD (For MRU) |
| EPUT | 1 core processor activation for MRU (QTY=48) |
| EPVW | PowerVM Enterprise Edition (QTY=48) |
| ES5A | Enterprise 800GB SSD PCIe4 NVMe U.2 module for AIX (QTY=4) |
| ESWK | AIX Update Access Key (UAK) (QTY=39) |
| EXPM | IBM Power Expert Care Premium 3 year |
| 5765-VC2 | PowerVC for Private Cloud V2 Per Proc (QTY=48) |
| 5662-VCC | 3-Year SWMA for PowerVC Per Processor (QTY=48) |
| 5765-G98 |
IBM AIX 7 Standard Edition Per Processor (QTY=48) |
| 5773-SM3 | 3-Year SWMA for AIX Per Processor (QTY=48) |
| 5765-VE4 | IBM PowerVM V4 Per Processor (QTY=48) |
| 5773-PVE | 3-Year SWMA for PowerVM Per Processor (QTY=48) |
| 5773-PAD |
Power Expert Care Premium Elements Adder 3Y |
| 6999-301 |
Expert Labs: IBM Expert Labs 1 On-site Project Unit for IBM Power |
Compatibility
The IBM 9043-MRU E1150 48-Core AIX System is compatible with:
- Operating systems: AIX 7.3 TL 7300-02 with service pack 7300-02-04-2520 or later. AIX 7.3 TL 7300-03 with 7300-03-01 or later. AIX 7.2 TL 7200-05 with 7200-05-10-2520 or later, in Power9 compatibility mode. Linux on Power at supported levels
- Not supported: IBM i
- Storage: Enterprise NVMe U.2 modules for AIX/Linux and supported drawers
- Networking: PCIe Ethernet and Fibre Channel adapters in supported slots
- Limitations: Minimum two processor modules. All modules in one server must be the same feature. Maximum 48 cores on #EPEY, 16 TB memory, 10 NVMe U.2 bays, and 11 PCIe slots. Match firmware, HMC level, and AIX TL/SP to feature EPEY
