IBM 8286-41A pSeries AIX Power8 Server EPXK 4-Core

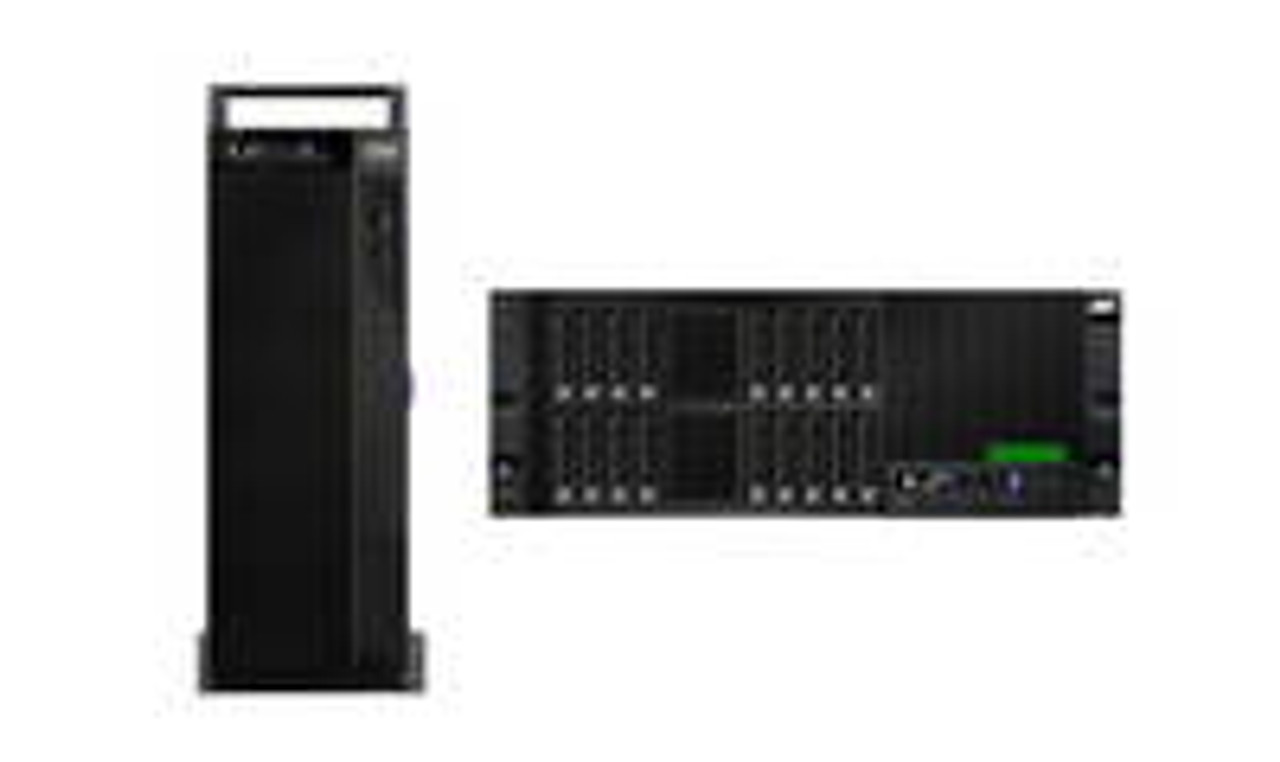

The IBM 8286-41A is a single-socket Power8 server with the EPXK 4-core processor, available in 4U rack or tower form factor for AIX workloads.
Product Description

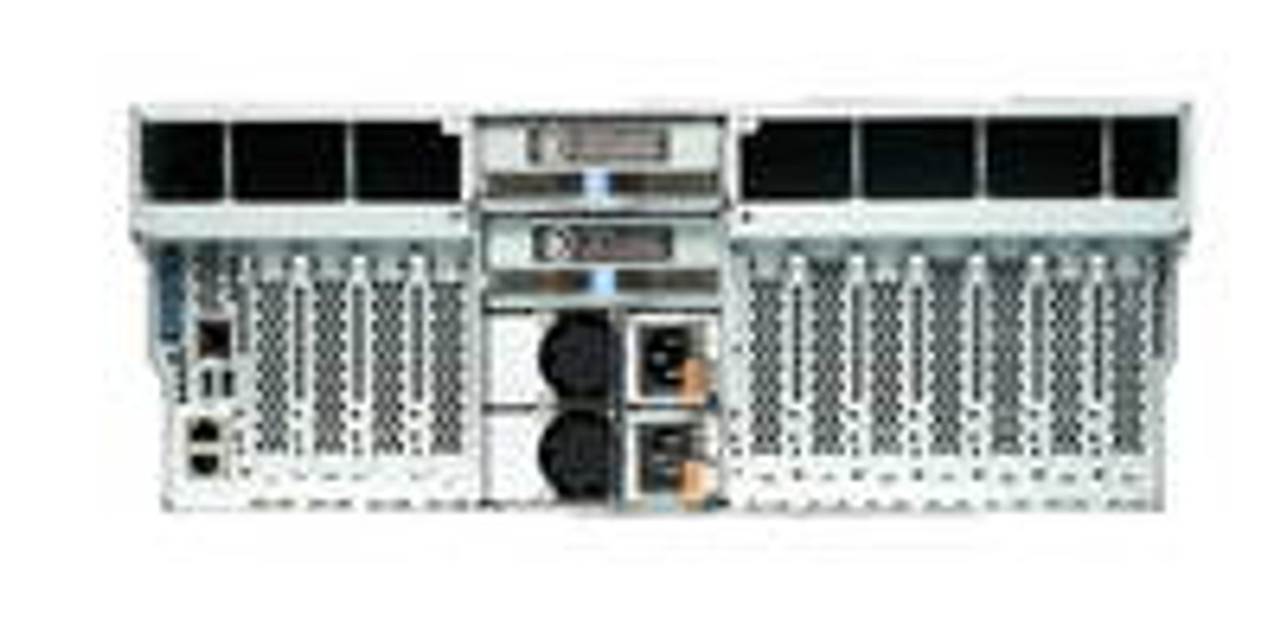

The IBM Power System S814 (machine type 8286 model 41A) with feature code EPXK provides a 4-core POWER8 processor running at 3.02 GHz. Each core includes 512 KB of L2 cache and 8 MB of L3 cache. The 4-core configuration supports a maximum of 64 GB of memory using 16 GB CDIMM features. Internal storage uses SFF-3 SAS bays with an integrated RAID controller. The system includes hot-plug PCIe Gen3 slots, dual hot-plug power supplies, and EnergyScale technology. It is available in rack-mount or desk-side tower form factor.
Features
- EPXK 4-core POWER8 processor at 3.02 GHz
- 512 KB L2 cache and 8 MB L3 cache per core
- Up to 64 GB DDR3/DDR4 memory (16 GB CDIMMs only on 4-core)
- SFF-3 SAS drive bays with integrated RAID
- Hot-plug PCIe Gen3 slots
- 4U rack or tower form factor
- Integrated service processor and EnergyScale
- Dual hot-plug redundant power supplies and cooling
- Supports AIX, IBM i, and Linux on Power
Technical Specifications
- Machine Type / Model: 8286-41A (S814)
- Processor: EPXK 4-core POWER8 @ 3.02 GHz
- L2 Cache: 512 KB per core
- L3 Cache: 8 MB per core
- Memory: Up to 64 GB (16 GB CDIMMs, feature EM8B)
- Storage Bays: Up to 10 SFF-3 (4-core configuration)
- Form Factor: 4U rack-mount or tower
- PCIe: Gen3 hot-plug slots
- RAID: Integrated SAS RAID 0/1/5/6/10
- Power: Dual hot-plug redundant supplies
Priced Configuration:
- 600GB 15K RPM SAS DASD
- 32 GB Memory
- 4 Port 1 Gbps Ethernet
- Rack mount or Standalone
IBM 8286 41A Power System S814 4-Core Processor EPXK: 3.02 GHz, Power8 4-Core Processor. Memory: 16GB to 64GB, pSeries Disk Drives: Minimum of 2 Disk Drives with 12 slots in the system unit. Configuration includes: 5748 Power GXT145 PCI Express Graphics Accelerator, 5771 DVD-RAM, 5899 4-Port 1Gbe Adapter, EJ0N Storage Backplane 12 SFF-3 Bays/DVD Bay, EM8B 16GB DDR3 Memory (QTY=2), ESFB 300GB 15K RPM SAS SFF-3 4K Block - 4096 Disk Drive (QTY=2).
Compatibility
The IBM 8286-41A EPXK 4-Core Server is compatible with:
- Operating Systems: AIX 6.1 / 7.1 / 7.2, IBM i 7.1+, Linux (RHEL and SLES at supported levels)
- Memory: 16 GB CDIMMs only (maximum four modules for 64 GB total on EPXK)
- Storage: Internal SFF-3 SAS HDDs and SSDs; EXP24S expansion not supported on 4-core
- Networking: Integrated and optional PCIe Ethernet and Fibre Channel adapters
- Limitations: Single processor socket. Maximum memory limited to 64 GB. No PCIe I/O expansion drawers on 4-core. All cores must be activated
Warranty
This product comes with a 60-day warranty covering parts and functionality.
