Product Description

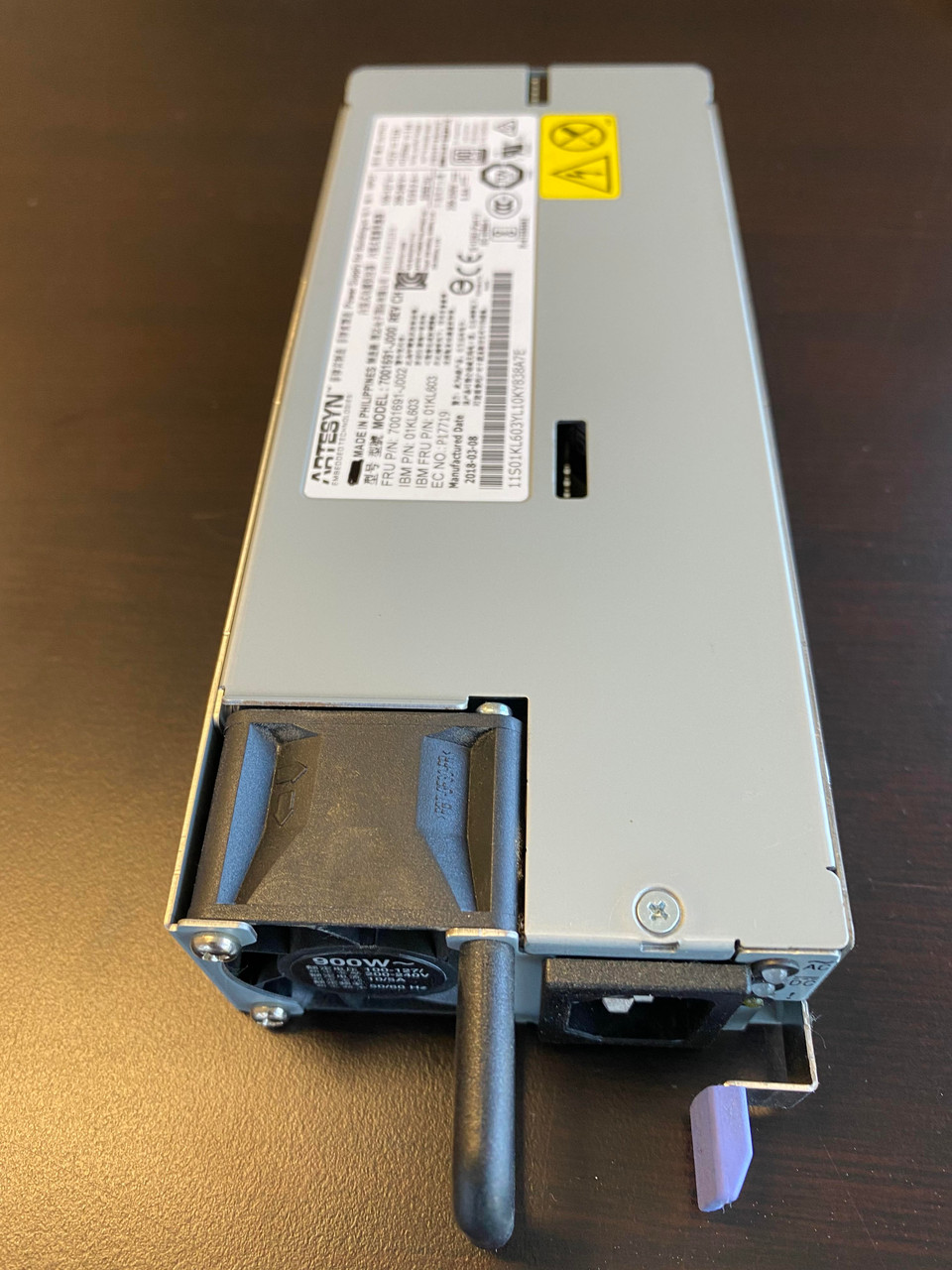

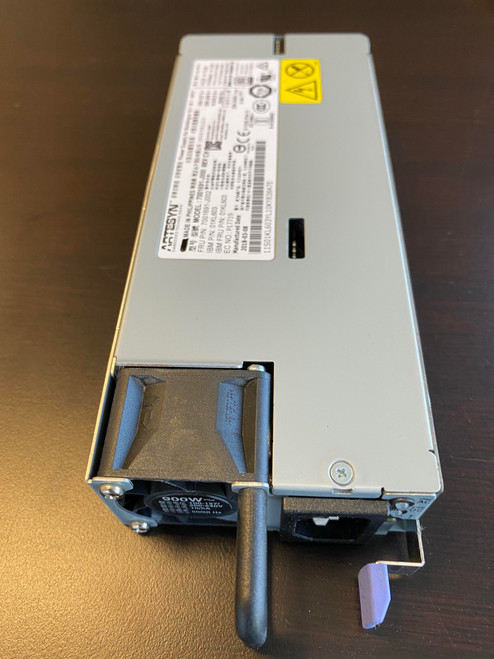

IBM EB2L 900W AC Power Supply Unit
The IBM EB2L is a 900W AC power supply for IBM Power Systems servers.
Product Description
The IBM EB2L 900W AC Power Supply Unit (feature code EB2L, part number 94Y8132) supplies power to IBM Power Systems servers. It supports input voltages of 100–127 V or 200–240 V AC and delivers 900 watts. The unit is designed for Power8 and Power9 systems and supports redundant, hot-swap configurations. The CCIN is 2B1D.
Features
- 900W power output
- Dual voltage input (100–127 V / 200–240 V AC)
- Hot-swap capable
- Supports redundant power configurations
- Designed for IBM Power Systems chassis
- Efficient power delivery for server workloads
Technical Specifications
- Feature Code: EB2L
- Part Number: 94Y8132
- CCIN: 2B1D
- Power Output: 900W
- Input Voltage: 100–127 V or 200–240 V AC
- Form Factor: Server power supply module
- Hot-Swap: Yes
Compatibility
The IBM EB2L 900W AC Power Supply is compatible with:
- Systems: IBM Power8 and Power9 servers including 9009-41A (S914), 9009-41G, 9009-22G (S922), 8286-41A (S814), 8286-42A (S824), and 8286-21A
- Operating Systems: AIX, IBM i, and Linux on supported Power Systems
- Limitations: Verify chassis, power configuration, and firmware requirements for the specific system model
Warranty
This product comes with a 60-day warranty covering parts and functionality.
