Product Description

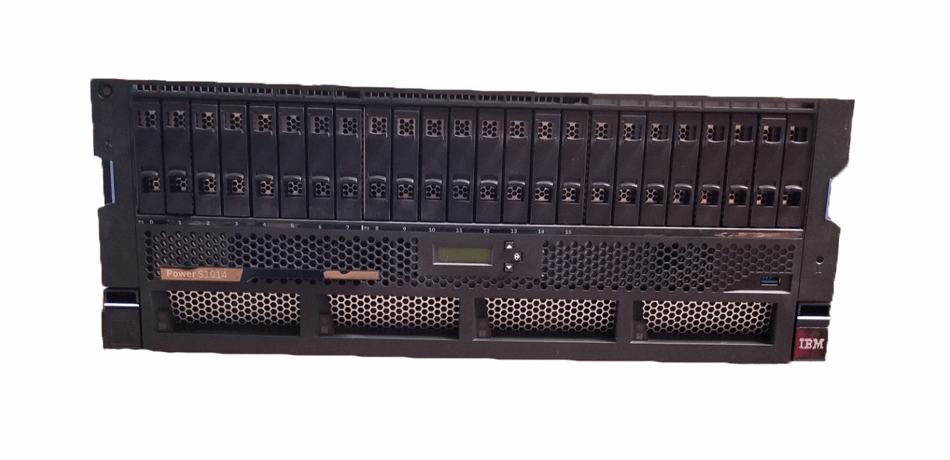

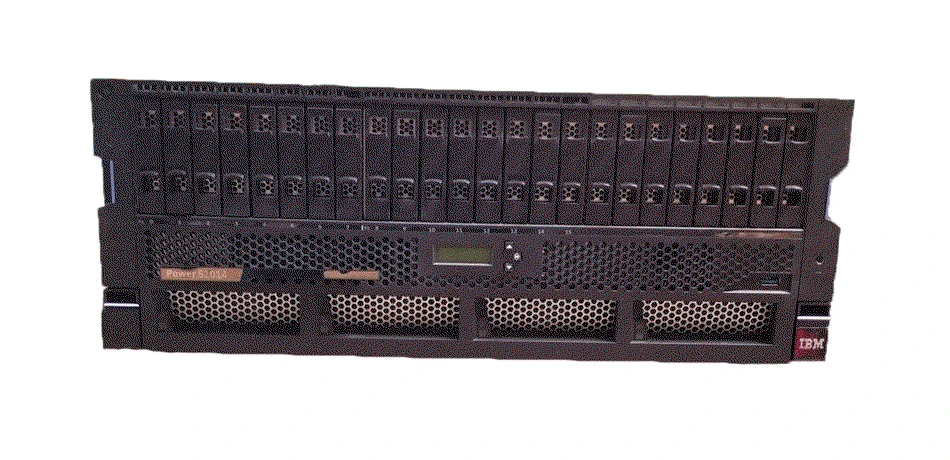

IBM S1014 9105-41B Power10 4-Core iSeries Server Base
The IBM S1014 9105-41B is an entry-level Power10 iSeries server optimized for small to medium IBM i environments. It delivers modern POWER10 performance, high-speed NVMe storage, and full IBM i 7.6 support in a compact rack-mount form factor, making it an ideal upgrade or new deployment platform for departmental applications, databases, and light virtualization.
Product Description
The IBM S1014 9105-41B Power10 4-Core iSeries Server Base comes pre-configured with an EPG0 4-core POWER10 processor (3.0–3.9 GHz), 64 GB DDR5 memory (2 × 32 GB DDIMMs at 3200 MHz), 1.6 TB raw Enterprise NVMe storage (2 × 800 GB U.2 SSDs with mirroring), IBM i 7.6 preloaded (10 user entitlements + 1 processor entitlement at 25,000 CPW), PowerVM Enterprise Edition, and a complete set of enterprise features including dual 1200W Titanium power supplies, 4-port 1 GbE adapter, operator panel LCD, and front bezel for 16 NVMe bays. The server uses the EJSE storage backplane with eight NVMe U.2 drive slots and supports hot-plug components for maximum uptime.
Features
- EPG0 4-core POWER10 processor (3.0–3.9 GHz)
- 64 GB DDR5 memory (2 × 32 GB DDIMMs, 3200 MHz)
- 1.6 TB raw Enterprise NVMe storage (2 × 800 GB U.2 SSDs, mirrored)
- IBM i 7.6 preloaded with 10 user entitlements
- PowerVM Enterprise Edition for virtualization
- Dual 1200W AC Titanium power supplies with redundant power cords
- 4-port 1 GbE adapter and system console Ethernet LAN adapter
- Operator panel LCD display and front NVMe bezel
- Hot-plug NVMe bays and concurrent maintenance support
Priced Configuration –
| Feature Code | Description |
|---|---|
| 9105-41B | IBM Power S1014 Server |
| 0040 | Mirrored System Disk Level |
| 0267 | IBM i Operating System Partition Specify |
| 2145 | Primary OS - IBM i |
| 2319 | Factory Deconfiguration of 1-core (QTY=3) |
| 5000 | Software Preload Required |
| 5557 | System Console-Ethernet LAN adapter |
| 6458 | Power Cord 4.3m, Drawer to IBM PDU (250v/10A) (QTY=2) |
| 9300 | Language Group Specify – US English |
| 9441 | New IBM i License Core Counter |
| AKCH | Standard S&H Indicator |
| ALH0 | Expert Care Indicator |
| EB3W | AC Titanium Power Supply – 1200W (100-127v/200-240V) (QTY=2) |
| EB76 | IBM i 7.6 Indicator (supports IBM i 7.6) |
| EHSE | Power IBM i Segment Indicator |
| EJ1Y | Storage backplane with eight NVMe U.2 drive slots |
| EJXU | Front IBM Bezel for 16 NVMe-bays BackPlane Rack-Mount |
| ELYA | ES3A/ES5B Load Source Specify (800 GB 4K NVMe U.2 SSD PCIe4 for IBM i) |
| EMFA | 64 GB (2×32GB) DDIMMs, 3200 MHz 16Gbit DDR5 Memory |
| EN2Z | 4-Port 1GbE Adapter |
| ENSB | 400 GB IBM i NVMe Load Source |
| EPFT | One Processor Core Activation for EPG0 (QTY=4) |
| EPG0 | 4-core Typical 3.0 to 3.90 GHz Power10 Processor |
| EPVT | PowerVM v4 |
| ES5B | Enterprise 800 GB SSD PCIe4 NVMe U.2 module for IBM i (QTY=2) |
| EU0K | Operator Panel LCD Display |
| EXA3 | 3-Year Advanced Expert Care |
Compatibility
The IBM S1014 9105-41B Power10 4-Core iSeries Server Base is compatible with:
- Operating Systems: IBM i 7.6 (preloaded), AIX 7.3+, Linux (RHEL/SUSE/Ubuntu)
- Storage/Expansion: Additional NVMe U.2 drives in the 8-bay backplane
- Networking: Built-in 4-port 1 GbE + optional PCIe adapters
- Limitations: Entry-level 4-core configuration; designed for small to medium IBM i workloads
Verify exact configuration, firmware levels, and entitlement requirements via IBM documentation for your specific Power Systems model.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
Ready to Order This Affordable Power10 Server?
Data Tech Computer Services, Inc. Call 770-772-0200 or email sales@datatechcomputer.com IBM Business Partner since 1994 – Installation, migration and support available.
