Product Description
IBM ESBB 387GB Enterprise SAS 4K SFF-2 SSD for IBM i part number 00LY621 CCIN 5B10

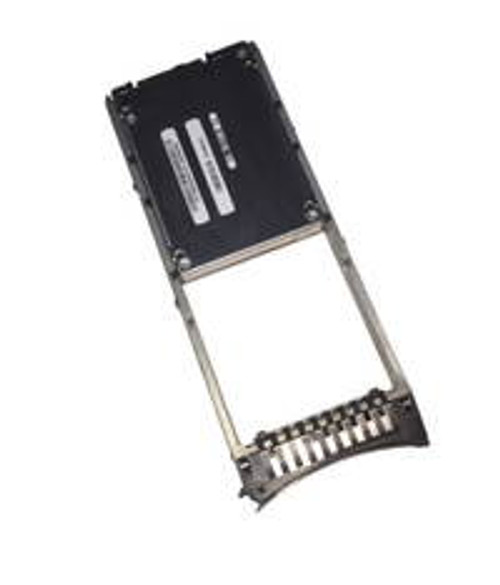

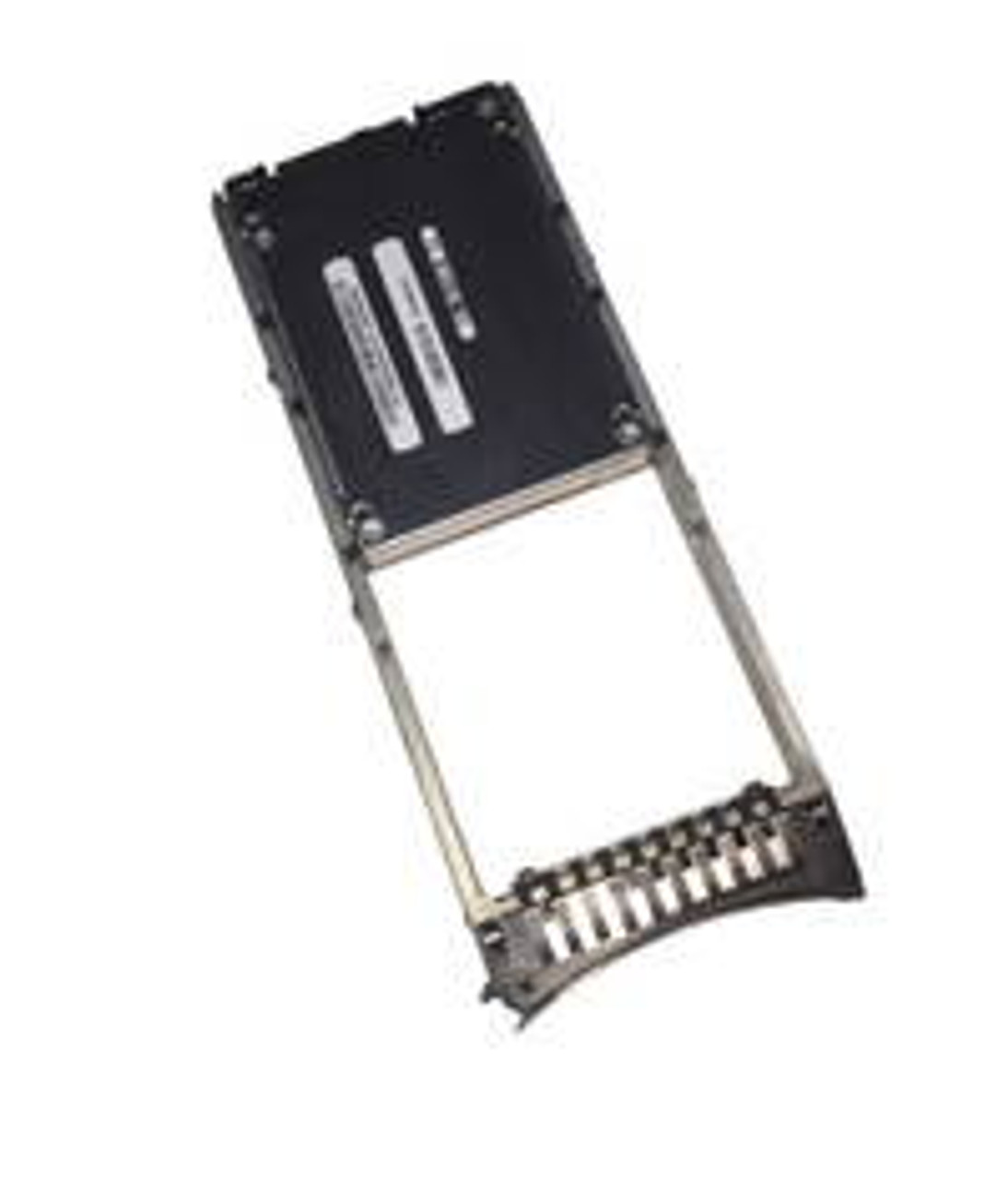

The IBM ESBB is a 387 GB Enterprise 4K SAS solid-state drive in an SFF-2 form factor designed for IBM Power Systems running IBM i.
Product Description of IBM Power9 ESBB
The IBM ESBB (feature code ESBB, part number 00LY621, CCIN 5B10) is a 387 GB Enterprise SAS solid-state drive formatted with 4K (4224-byte) sectors. It is mounted on an SFF-2 carrier for installation in EXP24SX expansion drawers. This enterprise SSD is rated at 10 Drive Writes Per Day (DWPD) over a five-year period. Feature ES95 is a physically related IBM i feature for this same 4K SFF-2 family.
Features
- 387 GB capacity
- Enterprise-grade endurance (10 DWPD over 5 years)
- 4K (4224-byte) sector formatting
- SFF-2 (2.5-inch) form factor
- SAS interface
- High performance and low latency
- Enterprise-class reliability for 24x7 operation
- Hot-swap capable in supported SFF-2 bays
- Optimized for IBM i workloads
Technical Specifications
- Feature Code: ESBB
- Part Number / FRU: 00LY621
- CCIN: 5B10
- Capacity: 387 GB
- Interface: SAS
- Form Factor: SFF-2 (2.5-inch)
- Sector Size: 4K (4224-byte)
- Endurance: 10 DWPD (5-year)
- Type: Enterprise Solid State Drive (SSD)
- Operating System: IBM i
Compatibility
The IBM ESBB 387GB Enterprise SAS 4K SFF-2 SSD is compatible with:
- Systems / drawers: IBM EXP24SX (#ESLS) SFF-2 SAS expansion drawers attached to POWER9 systems, including 9009-41A, 9009-42A, and 9223-42H
- Controllers: PCIe3 SAS adapters such as EJ14, EJ0L, EJ0J, EJ0M, EL59, EL65, and EL3B
- Environments: IBM i 7.3 TR4 or later, IBM i 7.4 or later
- Limitations: Fits only SFF-2 bays. Does not fit POWER8/POWER9 system-unit SFF-3 bays or older SFF-1 drawers. Cannot be mixed in the same array with 5xx-byte sector drives. Cannot be reformatted to 5xx-byte sectors. Verify firmware levels and population rules via IBM documentation.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
