Product Description

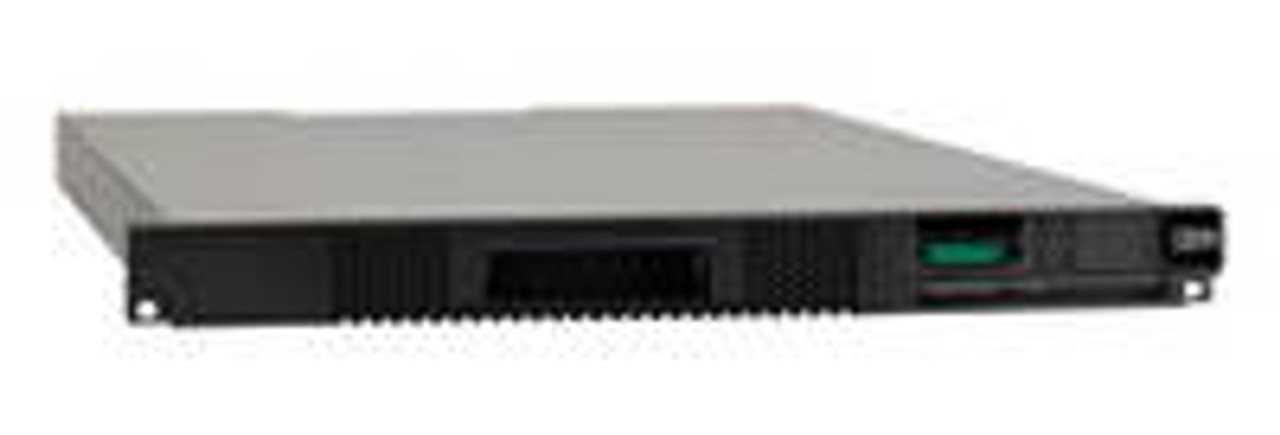

The IBM 3572 TS2900 Tape Autoloader Model S5H is a rack-mountable or deskside unit that contains a single IBM LTO Ultrium 5 Half-High SAS Tape Drive.
The IBM 3572-S5H TS2900 Tape Autoloader offers an efficient solution for data backup and archiving. This compact unit features a single LTO Ultrium 5 half-high SAS drive in a 1U form factor, suitable for rack-mounted or desktop use. Tailored for entry-level needs, it provides high capacity, performance, and reliability to manage increasing data storage requirements.
Supporting nine cartridges, the TS2900 offers up to 13.5 TB native storage capacity, expandable to 27 TB with 2:1 compression. It achieves data transfer rates of up to 140 MB/s native and 280 MB/s compressed, facilitating efficient backup processes. The autoloader comes with a standard bar code reader for sequential or random access, improving usability.
Remote management is enabled via a web interface, allowing easy monitoring and control. Optional accessories like rack mount kits and additional magazines allow for customization. Compliant with LTO standards, it supports media partitioning and self-describing tapes for enhanced data management.
Security is bolstered by optional encryption features to safeguard data. The TS2900 is backed by a 60-day warranty, ensuring quality and performance.
Key Features
- Single LTO Ultrium 5 half-high SAS tape drive for solid performance.
- Nine cartridge slots with a single I/O station in a removable magazine.
- Standard bar code reader for sequential or random access operations.
- Web-based remote management for easy administration.
- 6 Gbps SAS interface for rapid connectivity.
- Backward compatibility: Reads and writes LTO Ultrium 4 media, reads LTO Ultrium 3.
- Support for encryption to protect data.
- Compact 1U design for space-limited environments.
- High-density storage with up to 140 MB/s native data transfer rate.
Specifications
| Attribute | Specification |
|---|---|
| Form Factor | 1U rack mount or standalone |
| Drive Technology | LTO Ultrium 5 half-high SAS drive |
| Number of Drives | 1 |
| Number of Cartridge Slots | 9 |
| Cartridge Capacity (Native / Compressed) | 1.5 TB / 3 TB (2:1 compression) |
| Total Backup Capacity (Native / Compressed) | Up to 13.5 TB / Up to 27 TB (2:1 compression) |
| Data Transfer Rate (Native / Compressed) | Up to 140 MB/s / Up to 280 MB/s (2:1 compression) |
| Interface | 6 Gbps SAS |
| Management | Web-based GUI, operator panel |
| Dimensions (H x W x D) | 1.7 in. x 19.0 in. x 33.5 in. |
| Weight | 28.7 lb |
| Warranty | 60 days |
Compatibility
The IBM TS2900 Tape Autoloader is compatible with various operating systems and server platforms:
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), IBM AIX 7.1 or later, IBM i 7.1 or later.
- Servers: IBM Power Systems, IBM System x, Intel-based servers, and other open-system platforms.
For detailed interoperability information, refer to the System Storage Interoperation Center (SSIC).
