Product Description

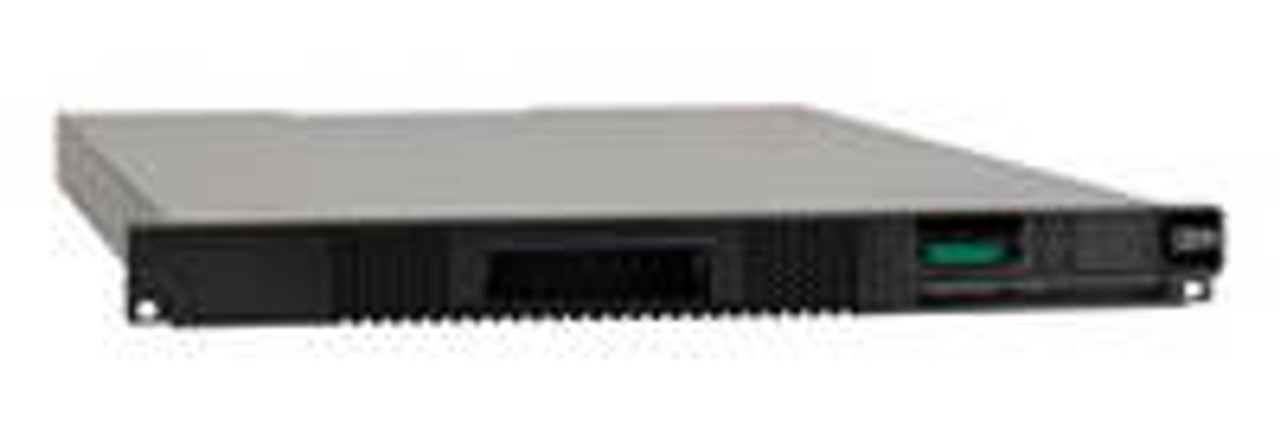

The IBM 3572 TS2900 Tape Autoloader Model S4H is a rack-mountable or deskside unit that contains a single IBM LTO Ultrium 4 Half-High SAS Tape Drive.
The IBM 3572-S4H TS2900 Tape Autoloader delivers an efficient solution for data backup and archiving. This compact unit integrates a single LTO Ultrium 4 half-high SAS drive in a 1U form factor, suitable for rack-mounted or standalone desktop setups. Designed for entry-level applications, it offers high capacity, solid performance, and dependable reliability to address expanding data storage needs.
With nine cartridge slots, the TS2900 supports up to 7.2 TB of native storage capacity, expanding to 14.4 TB with 2:1 compression. It provides data transfer rates of up to 120 MB/s native and higher with compression, enabling effective backup operations. The autoloader includes a standard bar code reader for sequential or random access modes, boosting flexibility.
Remote management occurs through an intuitive web interface for convenient monitoring and control. Optional accessories, including rack mount kits and extra magazines, enable tailored configurations. Compliant with LTO standards, it supports advanced features like media partitioning and self-describing tapes.
Optional encryption enhances data security. The TS2900 includes a 60-day warranty for confidence in its quality and operation.
Key Features
- Single LTO Ultrium 4 half-high SAS tape drive for reliable performance.
- Nine cartridge slots with a single I/O station in a removable magazine.
- Standard bar code reader supporting sequential or random access.
- Web-based remote management for straightforward administration.
- SAS interface for efficient connectivity.
- Backward compatibility: Reads and writes LTO Ultrium 3 media, reads LTO Ultrium 2.
- Support for encryption to secure sensitive data.
- Compact 1U design suited for limited-space environments.
- High-density storage with up to 120 MB/s native data transfer rate.
Specifications
| Attribute | Specification |
|---|---|
| Form Factor | 1U rack mount or standalone |
| Drive Technology | LTO Ultrium 4 half-high SAS drive |
| Number of Drives | 1 |
| Number of Cartridge Slots | 9 |
| Cartridge Capacity (Native / Compressed) | 800 GB / 1.6 TB (2:1 compression) |
| Total Backup Capacity (Native / Compressed) | Up to 7.2 TB / Up to 14.4 TB (2:1 compression) |
| Data Transfer Rate (Native / Compressed) | Up to 120 MB/s / Higher with compression |
| Interface | SAS (3 Gbps) |
| Management | Web-based GUI, operator panel |
| Dimensions (H x W x D) | 1.7 in. x 19.0 in. x 33.5 in. |
| Weight | 28.7 lb |
| Warranty | 60 days |
Compatibility
The IBM TS2900 Tape Autoloader is compatible with a variety of operating systems and server platforms:
- Operating Systems: Microsoft Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), IBM AIX 7.1 or later, IBM i 7.1 or later.
- Servers: IBM Power Systems, IBM System x, Intel-based servers, and other open-system platforms.
For complete interoperability details, consult the System Storage Interoperation Center (SSIC).
