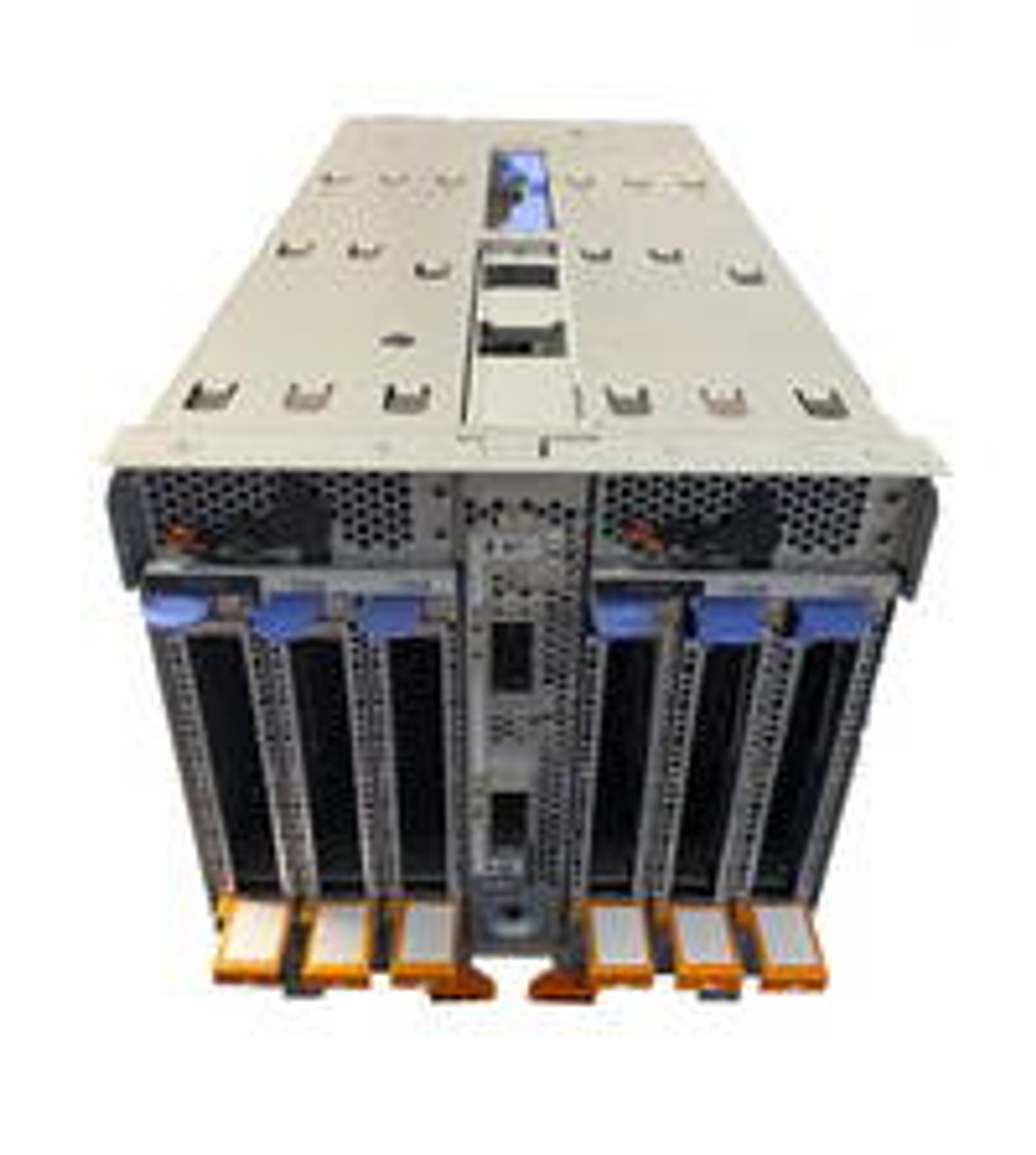

IBM EMXG PCIe3 6-Slot Fanout Module for PCIe3 Expansion Drawer

IBM EMXG PCIe3 6-Slot Fanout Module for PCIe3 Expansion Drawer

• Used in a EMX0 expansion

IBM EMXF a PCIe3 fanout module for PCIe Gen3 I/O Expansion Drawer. Provides six PCIe Gen3 full high, full length slots (two x16 and four x8). The PCIe slots are hot plug. With firmware 8.4 or later, the fanout module supports concurrent maintenance, though obviously while off- line all its PCIe slots are also off-line. Blind swap cassettes (BSC) are used for the PCIe slots. The BSC are interchangeable with the #5802/5877/5803/5873 12X PCIe I/O Drawer BSC.

The module has two CXP ports which are connected two CXP ports on a PCIe Optical Cable Adapter #EJ05 or #EJ07 or #EJ08 depending on the server selected. A pair of active optical CXP cables (AOC) or a pair of CXP copper cables are used for this connection. The top CXP port of the fanout module is cabled to the top CXP port of the PCIe3 Optical Cable Adapter. The bottom CXP port of the fanout module is cabled to the bottom CXP port of the same PCIe3 Optical Cable Adapter.

EMXG is a follow-on to the original EMXF fanout module. EMXG and EMXF are functionally identical but EMXG implements a small physical change to enable a larger set of potential PCIe adapters to be housed. EMXG and EMXF can be intermixed in the same drawer. There is no difference in firmware or software prerequisites for the EMXF and EMXG. EMXG and for EMXF use the same BSC.
