Product Description

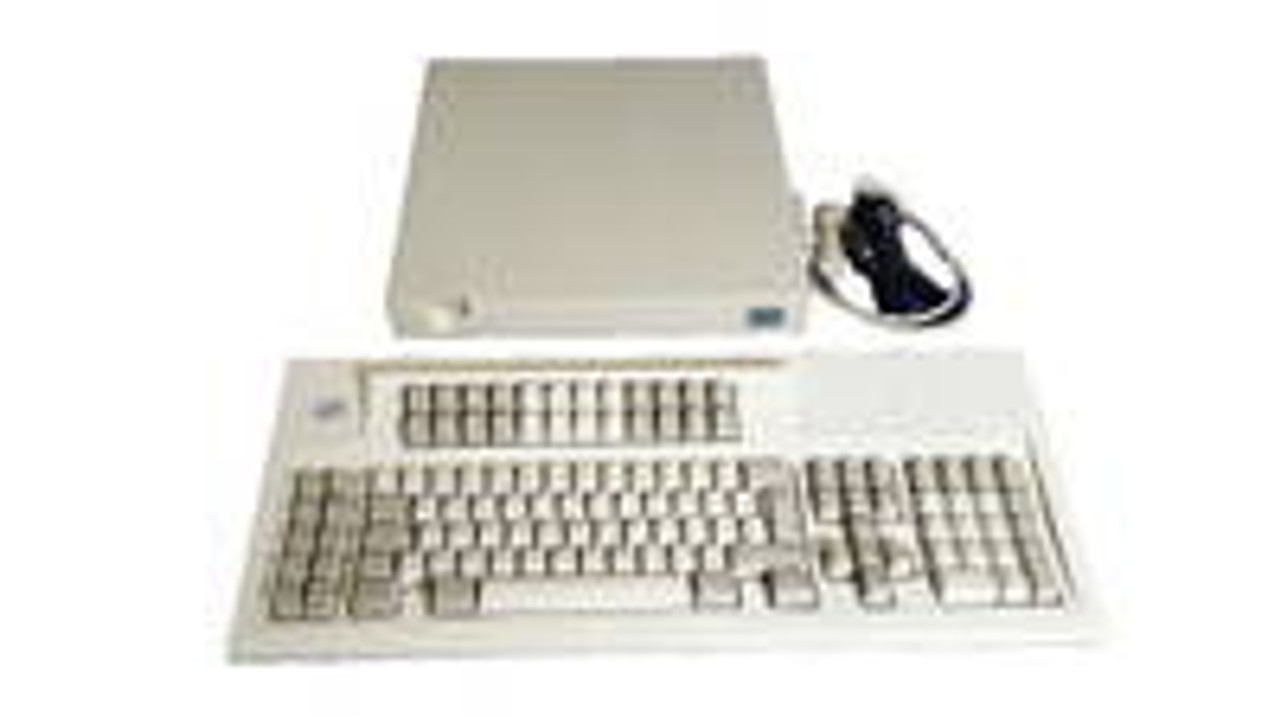

IBM 3488 InfoWindow II Modular Display Station
The IBM 3488 is a modular InfoWindow II Display Station that uses a separate logic unit and supports attachment of VGA or SVGA monitors for System/36 and AS/400 systems.
Product Description
The IBM InfoWindow II 3488 Modular Display Station is a member of the InfoWindow II family designed for attachment to AS/400 and System/36 systems. It features a modular design consisting of a logic unit and keyboard, with support for attachment of most IBM VGA or VGA-compatible monochrome and color monitors. The unit supports screen formats including 24x80, 32x80, 43x80, 27x132, and 49x80 twin-screen modes (monitor-dependent). It provides support for up to four display sessions and one printer session with shared addressing, a parallel printer port with 3812-SCS printer emulation, Enhanced User Interface with mouse or light-pen support, variable horizontal or vertical split screen, built-in calculator, and advanced power management. The 3488 attaches locally to System/36 or AS/400 processors, or remotely via 5294, 5394, or 5494 controllers. It includes functions of prior InfoWindow models for compatibility and meets ISO 9241 Part 3 standards when used with appropriate monitors.
Features
- Modular design with separate logic unit and keyboard
- Supports attachment of VGA or SVGA monitors (monochrome or color)
- Screen formats: 24x80, 32x80, 43x80, 27x132, and 49x80 (monitor-dependent)
- Supports up to four display sessions and one printer session with shared addressing
- Parallel printer port with 3812-SCS printer emulation
- Enhanced User Interface with mouse or light-pen support
- Variable vertical or horizontal split screen
- Built-in calculator
- Advanced power management
- Logic unit can be desk or wall-mounted
- Compatible with prior InfoWindow functions
Technical Specifications
- Model: 3488
- Design: Modular (logic unit + separate monitor)
- Screen Formats: 24×80, 32×80, 43×80, 27×132, 49×80 twin-screen (monitor-dependent)
- Interface: Twinax (5250)
- Attachment: Local or remote via 5294/5394/5494 controllers
- Keyboard Options: 122-key typewriter or 102-key enhanced
- Power (logic unit): Approximately 0.02–0.04 kVA (excluding monitor)
- Logic Unit Dimensions (approx.): Width 322 mm, Depth 322 mm, Height 60 mm
- Logic Unit Weight (approx.): 2.5 kg
Compatibility
The IBM 3488 InfoWindow II Modular Display Station is compatible with:
- Systems: IBM System/36 and AS/400 (iSeries)
- Attachment: Direct twinax or remote via 5294, 5394, or 5494 Remote Control Units
- Monitors: IBM VGA or VGA-compatible monochrome and color monitors (e.g., 8504, 8511, 8515, 9515 series)
- Applications: Compatible with 5250 applications; supports multiple display and printer sessions
- Environments: 5250 Information Display System
- Printers: Supports attached personal printers for local or host printing
Warranty
This product comes with a 60-day warranty covering parts and functionality.
