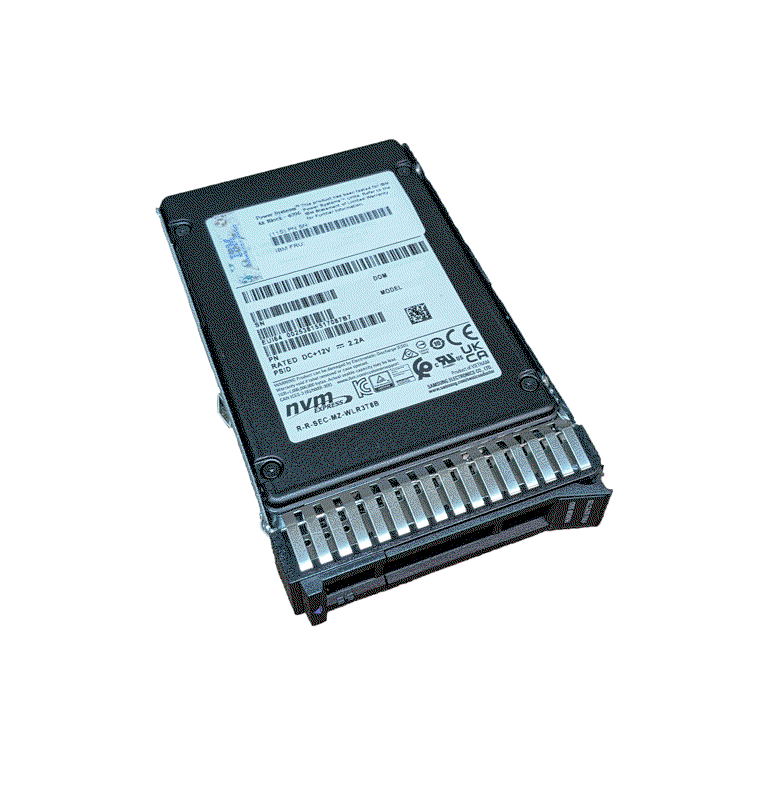

IBM ECT4 Enterprise 1.6TB SSD PCIe4 NVMe U.2 Module for IBM i Power11

The IBM ECT4 is a 1.6 TB Enterprise PCIe4 NVMe U.2 SSD for IBM Power11 systems running IBM i.

Product Description

The IBM ECT4 (feature code ECT4, part number 02YC739, CCIN 5B52) is an Enterprise-class 1.6 TB PCIe Gen4 NVMe U.2 solid-state drive. It uses a 15 mm U.2 form factor and is formatted with 4160-byte sectors for IBM i. It is the Power11 feature code for the same 1.6 TB Enterprise NVMe U.2 module ordered as ES5B or related IBM i features on Power10. The drive provides high endurance and low latency for IBM i workloads. Feature ECT0 is the related AIX/Linux version with 4096-byte sectors.

Features

1.6 TB capacity
Enterprise NVMe endurance
PCIe Gen4 x4 NVMe interface
U.2 15 mm form factor
4160-byte sector formatting for IBM i
Power-loss protection
Hot-swap capable in supported U.2 bays
CCIN 5B52

Technical Specifications

Feature Code: ECT4
Part Number: 02YC739
CCIN: 5B52
Related Power10 feature: ES5B
Capacity: 1.6 TB
Interface: PCIe Gen4 x4 NVMe
Form Factor: U.2 15 mm
Sector Size: 4160-byte (IBM i)
Type: Enterprise NVMe SSD

Compatibility

The IBM ECT4 Enterprise 1.6TB NVMe U.2 Module is compatible with:

Systems: IBM Power11 systems with supported U.2 NVMe bays, including S1112 9242-21B / 9242-21T, S1122 9824-22A, and S1124 9824-42A
Operating systems: IBM i. Not for direct AIX or Linux attachment
Related modules: ECT0 is the AIX/Linux feature for the same physical drive family
Limitations: Requires a supported U.2 NVMe bay. Does not fit SAS SFF-2 or SFF-3 bays. Mirroring is required when used as an IBM i load source. Confirm firmware level and population rules before install
