Product Description

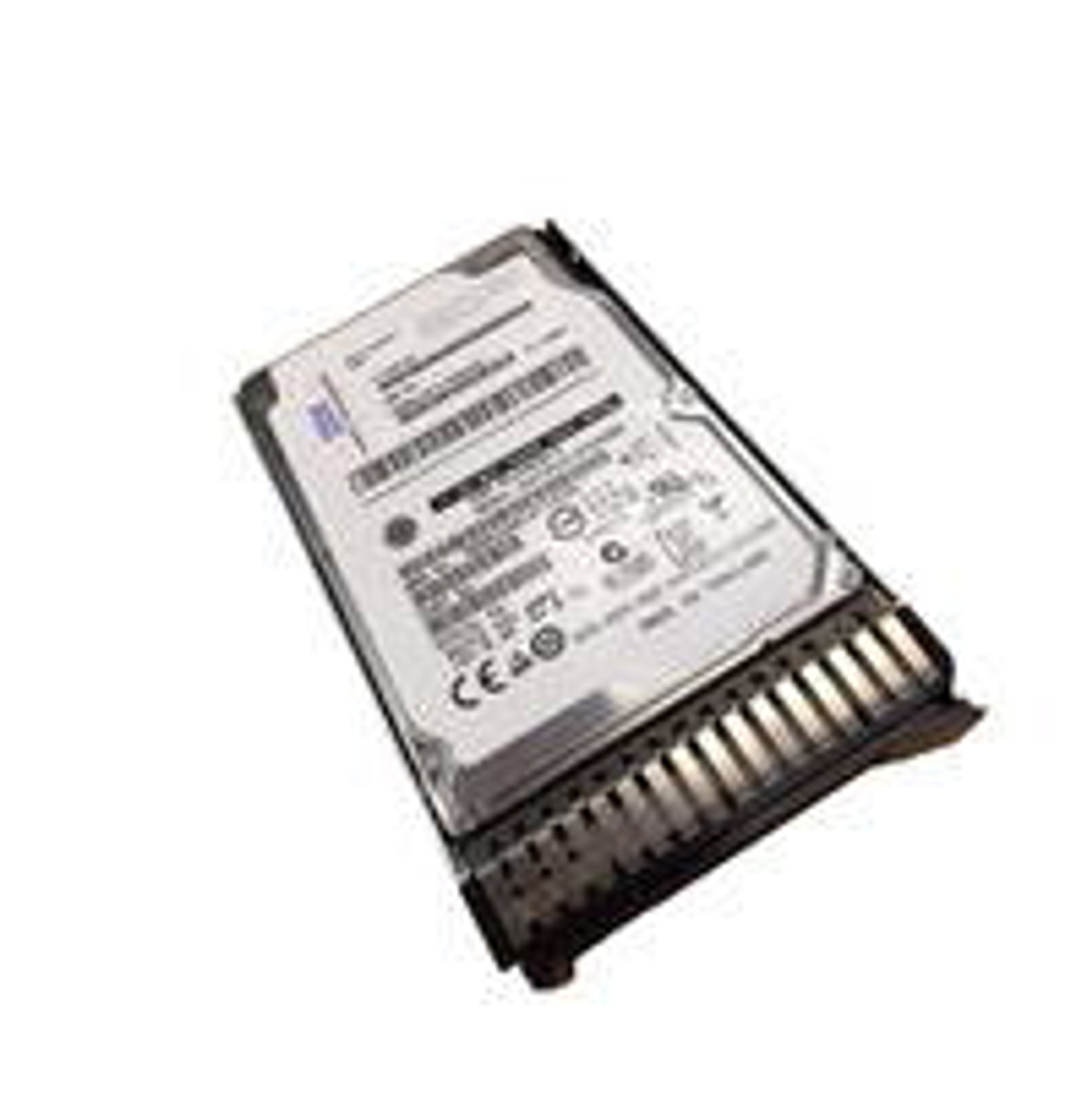

IBM ESF4 571GB 10K RPM SAS SFF-3 4K Disk Drive part number 00E9951 CCIN 59D3 Power8
The IBM ESF4 is a 571 GB 10,000 rpm SAS hard disk drive in an SFF-3 form factor with 4K (4224-byte) sectors for IBM Power8 Systems running IBM i.
Product Description for IBM Power8 ESF4
The IBM ESF4 (feature code ESF4, part number 00E9951, CCIN 59D3) is a 571 GB 10,000 rpm SAS disk drive mounted on a Generation-3 (SFF-3) 2.5-inch carrier. It is formatted with 4K (4224-byte) sectors for IBM i. If reformatted to 4096-byte sectors, capacity would be 600 GB and the additional 4224-byte data integrity protection would not apply. The drive is supported in SFF-3 SAS bays in POWER8 system units.
Features
- 571 GB capacity
- 10,000 rpm rotational speed
- SAS interface
- SFF-3 (2.5-inch Gen3) carrier
- 4K (4224-byte) sector formatting
- Enterprise-class reliability for 24x7 operation
- Hot-swap capable in supported SFF-3 bays
- Optimized for IBM i workloads
Technical Specifications
- Feature Code: ESF4
- Part Number / FRU: 00E9951
- CCIN: 59D3
- Capacity: 571 GB
- Interface: SAS
- Rotational Speed: 10,000 rpm
- Form Factor: SFF-3 (2.5-inch)
- Sector Size: 4K (4224-byte)
- Type: Enterprise Hard Disk Drive (HDD)
- Operating System: IBM i
Compatibility
The IBM ESF4 571GB 10K SAS SFF-3 4K Disk Drive is compatible with:
- Systems: IBM POWER8 system units with available SFF-3 SAS bays, including 8286-series and related models
- Environments: IBM i 7.1 TR10, IBM i 7.2 TR2, or later
- Limitations: Does not fit SFF-1 or SFF-2 bays because of carrier differences. Do not mix in the same array with drives that use a different sector size. Verify firmware levels and population rules via IBM documentation.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
