Product Description

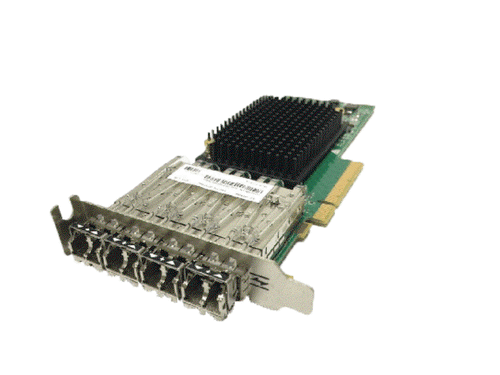

IBM EAPD PCIe4 x16 4-port 25/10/1 GbE RoCE SFP28 Adapter
The IBM EAPD is a high-performance PCIe Gen4 Ethernet adapter that provides four 25/10/1 GbE SFP28 ports with RDMA over Converged Ethernet (RoCE) support. It is designed for IBM Power Systems and delivers high bandwidth, low latency, and efficient CPU utilization for networking, storage, and clustering workloads.
Product Description
The IBM EAPD (feature code EAPD, CCIN EC26, FRU 03JP128) is a full-height PCIe4 x16 4-port 25/10/1 GbE RoCE SFP28 adapter. It supports both standard Ethernet NIC functionality and RDMA over Converged Ethernet (RoCE), enabling significantly higher bandwidth with lower latency while minimizing CPU overhead. The adapter is ideal for high-performance networking, virtualization, and data-intensive applications on IBM Power11 systems, including the Power S1112. A low-profile version of the same adapter is available as feature code EAPC.
Features
- Four 25/10/1 GbE SFP28 ports
- PCIe Generation 4 (Gen4) x16 interface for maximum bandwidth
- Full-height form factor (EAPD); low-profile version available as EAPC
- Supports RDMA over Converged Ethernet (RoCE) for low-latency, high-throughput data transfer
- Concurrent support for NIC and RoCE modes
- Compatible with 25 Gb SFP28, 10 Gb SFP+, and 1 Gb connectivity
- Advanced networking features including link aggregation, VLAN tagging, and Energy Efficient Ethernet
- Hot-plug capable in supported Power Systems slots
- Ideal for high-performance networking, storage traffic, and clustering on Power Systems
Technical Specifications
- Feature Code: EAPD (full-height); EAPC (low-profile)
- CCIN: EC26
- FRU / Part Number: 03JP128
- Interface: PCIe 4.0 x16
- Ports: 4 × 25/10/1 GbE SFP28
- Form Factor: Full-height (EAPD)
- Protocols: Ethernet NIC and RDMA over Converged Ethernet (RoCE)
- Supported Speeds: 25 Gb, 10 Gb, and 1 Gb
- Compatibility: IBM Power11 systems (including S1112 9242-21B / 9242-21T and other supported models)
Compatibility
The IBM EAPD PCIe4 x16 4-port 25/10/1 GbE RoCE SFP28 Adapter is compatible with:
- Power Systems Models: Power11 systems including S1112 (9242-21B / 9242-21T), S1122, S1124, E1180, and other supported Power11 servers
- Operating Systems: AIX, IBM i, and Linux (as supported by the specific system and adapter firmware)
- Environments: High-performance networking, virtualization, storage, and clustering workloads
- Limitations: Requires compatible SFP28/SFP+ transceivers or Direct Attach Copper (DAC) cables (purchased separately). Verify exact slot placement rules, firmware levels, and OS support via IBM documentation for your specific Power Systems model.
Warranty
This product comes with a 60-day warranty covering parts and functionality.
