Product Description
IBM ECCF System Port Converter Cable for UPS
The IBM ECCF System Port Converter Cable (part number 00FV631) is a specialized converter cable that facilitates reliable communication between an uninterruptible power supply (UPS) relay interface and the service processor USB port on compatible IBM Power Systems servers. This cable ensures proper signaling for power management and shutdown coordination during power events.

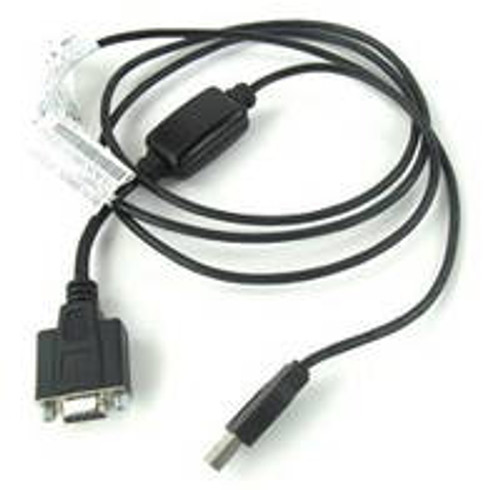

Featuring a USB connector on one end and a 9-pin D-shell (DB-9) connector on the other, the ECCF cable supports USB 2.0 connectivity for modern Power servers. With a length of approximately 1.65m (65 inches), it provides flexible installation options while maintaining signal integrity for critical UPS integration in enterprise environments.
Key Features
- USB to 9-pin D-shell (DB-9) converter design
- Supports USB 2.0 communication
- Length: ~1.65m (65 inches)
- Enables UPS relay interface to service processor connection
- Compatible with POWER8, POWER9, and select POWER10 systems
- Reliable for power event monitoring and graceful shutdown
Specifications
- Feature Code / Part Number: ECCF (00FV631)
- Cable Type: System Port Converter for UPS
- Connectors: Male USB (Type A) to Female 9-pin D-shell (DB-9)
- Length: 1650 mm (65 inches)
- Interface: USB 2.0 compatible
Compatibility
This IBM ECCF converter cable is compatible with various IBM Power Systems servers that feature a USB service processor port for UPS connectivity, including:
- POWER8-based systems (e.g., 8286 S814/S824, 8408, 8708 series)
- POWER9-based systems (e.g., S1014, L922, E950, 9080-M9S)
- Select POWER10 systems and configurations supporting USB-based UPS signaling
- Environments using UPS relay interface cards requiring USB-to-DB9 conversion for IBM i, AIX, or Linux
Designed for servers with RJ45 system ports or USB ports needing adapter for traditional UPS DB-9 relay connections. Confirm specific model firmware, HMC settings, and UPS model for full integration support.
Warranty
60-day warranty included.
