Product Description

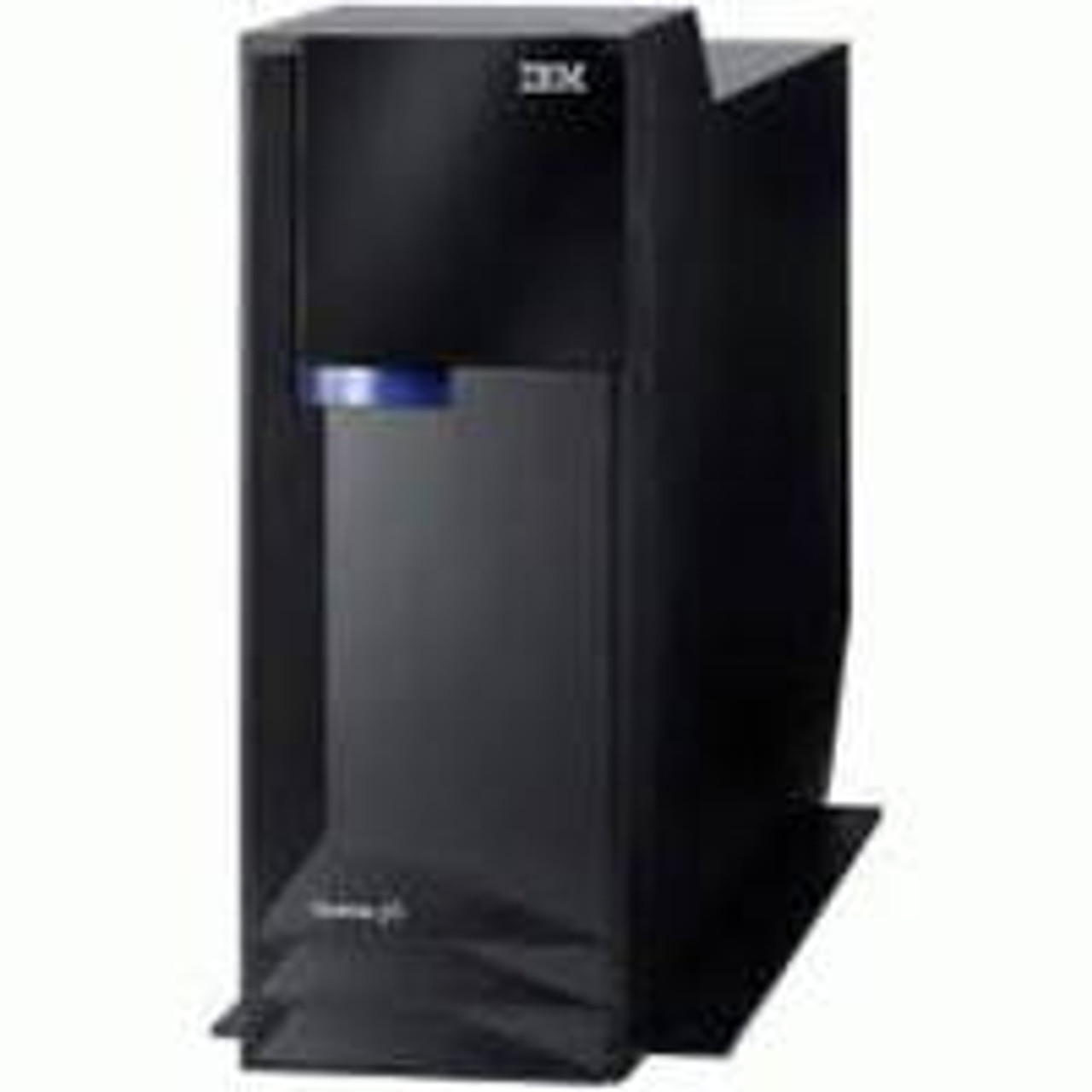

IBM iSeries Model 9406-520-0906 7736 1.9 GHz 3800-7100 CPW P10
Unlock superior legacy IBM mid-range performance with the IBM iSeries Model 9406-520 featuring the 0906 / 7736 processor combination, a high-throughput Power5 server engineered for intensive interactive and batch processing. This configuration delivers exceptional capacity with a 3800-7100 CPW rating in the P10 software tier on a 1.9 GHz POWER5 single-core processor, ideal for demanding enterprise applications, large-scale databases, virtualization support, and stable OS/400 or IBM i environments. It includes a full hardware complement ready for immediate implementation, such as memory, high-speed SCSI DASD with RAID, integrated dual-port Ethernet, DVD ROM, tape backup, Twinax connectivity, base WAN/modem, and base IOP.
The Model 9406-520 with 0906/7736 Processor provides powerful single-processor throughput, efficiently handling legacy AS/400 iSeries application workloads. Configured with 4 GB DDR2 memory, 140 GB 15K RPM SCSI DASD (typically 4x 35.16 GB drives), RAID enablement, 2-port 1 Gbps Ethernet, DVD ROM drive, 30 GB 1/4-inch cartridge tape, base 2-line WAN with modem, and base IOP. The system unit offers 8 disk slots (minimum 2 drives required) for future storage scalability.
This complete system includes entitlements for one processor and one operating system, delivering a high-performance, dependable solution for organizations maintaining demanding IBM iSeries infrastructures with proven Power5 technology.
Key Features
- Processor Performance: 0906 / 7736 1-core POWER5 at 1.9 GHz with 3800-7100 CPW (P10 tier).
- Memory Configuration: 4 GB DDR2 (expandable up to 32 GB per model limits).
- Storage Capacity: 140 GB 15K RPM SCSI DASD with RAID support (typically 4x 35.16 GB drives).
- Networking: Integrated 2-port 1 Gbps Ethernet.
- Media Drives: DVD ROM and 30 GB 1/4-inch cartridge tape.
- Connectivity: Twinax workstation support.
- Communication: Base 2-line WAN with modem.
- Expandability: 8 disk slots in system unit (minimum 2 drives required).
- Entitlements: One processor, one OS.
- Complete Configuration: Ready-to-deploy with all specified components.
Specifications
| Feature | Details |
|---|---|
| Model | 9406-520 |
| Processor / Feature Code | 0906 / 7736 (P10) |
| Processor Type | POWER5 1-Core |
| Frequency | 1.9 GHz |
| CPW Rating | 3800-7100 CPW |
| Memory | 4 GB DDR2 (4475 4GB DDR Memory) |
| Storage | 140 GB 15K RPM SCSI DASD (4326 35.16GB 15K RPM SCSI Disk Unit QTY=4) |
| RAID Support | Yes (5709/5727 RAID Enablement Card) |
| Ethernet | 2-port 1 Gbps (5706 Integrated 2-Port 1Gbps Ethernet) |
| Twinax | Supported (4746 Twinax) |
| Media Drives | DVD ROM (2640), 30 GB 1/4In Cartridge Tape (5753) |
| Communication | Base 2-Line WAN w/modem (9793), Base IOP (9844) |
| Disk Slots | 8 (minimum 2 drives) |
| Entitlements | 1 Processor, 1 OS |
| Operating System | IBM i / OS/400 entitlement included |
| Warranty | 60 days |
Compatibility
The IBM iSeries Model 9406-520 with 0906/7736 Processor is compatible with IBM i and OS/400 operating system environments, supporting legacy IBM iSeries applications. It integrates with standard iSeries peripherals, SCSI storage, Twinax terminals, Ethernet networks, and allows expansion via compatible DDR2 memory, SCSI DASD, and adapters consistent with POWER5 520 architecture. Well-suited for traditional mid-range to high-demand business software and workloads on IBM platforms.
Configuration
IBM iSeries Model 9406-520-0906 7736 1.9 GHz 3800-7100 CPW P10
- 140GB 15K RPM SCSI DASD
- 4GB Memory
- 2 Port 1Gbps Ethernet
- DVD ROM
- RAID
- 30GB 1/4In Cartridge Tape
- 3800-7100 CPW
IBM 9406 520 Server IBM iSeries Processor (#7736): 3800-7100 CPW, 1.9 GHz, Power5+ 1-2Core Processor SW Tier: P10 iSeries Memory: 1 GB to 32 GB iSeries Disk Drives: Minimum of 2 Disc Drives with 8 slots in system unit. Configuration includes: 2640 DVD-ROM, 4326 35.16GB 15K RPM SCSI Disk Unit (QTY=4), 4475 4GB DDR2 Memory, 5706 Integrated 2-Port 1Gbps Ethernet, 5709/5727 RAID Enablement Card, 5753 30GB 1/4in Cartridge Tape, 9793 BASE 2-Line WAN w/modem, 9844 BASE IOP. one processor entitlement, and one operating system entitlement.
