Product Description

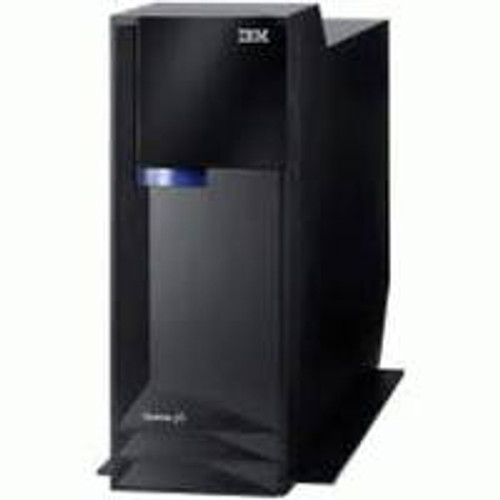

IBM iSeries Model 9406-520-0905 1.65 GHz 3300-6000 CPW P30
Boost your legacy IBM mid-range performance with the IBM iSeries Model 9406-520 featuring the 0905 processor, a powerful Power5 server designed for demanding interactive and batch workloads. This configuration delivers high capacity with a 3300-6000 CPW rating in the P30 software tier on a 1.65 GHz POWER5 1-2 core processor, ideal for intensive business applications, larger-scale processing, and robust OS/400 or IBM i environments. It includes a complete hardware package ready for deployment, featuring memory, high-speed SCSI DASD with RAID, dual-port Ethernet, DVD ROM, tape drive, base WAN/modem, and base IOP.
The Model 9406-520 with 0905 Processor provides strong single- to dual-core throughput, effectively supporting legacy AS/400 iSeries application ecosystems. Configured with 4 GB DDR2 memory, 140 GB 15K RPM SCSI DASD (4x 35.16 GB drives), RAID enablement, integrated 2-port 1 Gbps Ethernet, DVD ROM drive, 30 GB 1/4-inch cartridge tape, base 2-line WAN with modem, and base IOP. The system unit offers 8 disk slots (minimum 2 drives required) for storage expansion.
This fully configured system includes entitlements for one processor and one operating system, delivering a high-performance, reliable solution for organizations maintaining capable IBM iSeries infrastructures with proven Power5 technology.
Key Features
- Processor Performance: 0905 1-2 core POWER5 at 1.65 GHz with 3300-6000 CPW (P30 tier).
- Memory Configuration: 4 GB DDR2 (expandable up to 32 GB per model limits).
- Storage Capacity: 140 GB 15K RPM SCSI DASD with RAID support (4x 35.16 GB drives).
- Networking: Integrated 2-port 1 Gbps Ethernet.
- Media Drives: DVD ROM and 30 GB 1/4-inch cartridge tape.
- Communication: Base 2-line WAN with modem.
- Expandability: 8 disk slots in system unit (minimum 2 drives required).
- Entitlements: One processor, one OS.
- Complete Configuration: Ready-to-deploy with all specified components.
Specifications
| Feature | Details |
|---|---|
| Model | 9406-520 |
| Processor / Feature Code | 0905 (P30) |
| Processor Type | POWER5 1-2 Core |
| Frequency | 1.65 GHz |
| CPW Rating | 3300-6000 CPW |
| Memory | 4 GB DDR2 (4445 4GB DDR Memory) |
| Storage | 140 GB 15K RPM SCSI DASD (4326 35.16GB 15K RPM SCSI Disk Unit QTY=4) |
| RAID Support | Yes (5709/5727 RAID Enablement Card) |
| Ethernet | 2-port 1 Gbps (5706 Integrated 2-Port 1Gbps Ethernet) |
| Media Drives | DVD ROM (2640), 30 GB 1/4In Cartridge Tape (5753) |
| Communication | Base 2-Line WAN w/modem (9793), Base IOP (9844) |
| Disk Slots | 8 (minimum 2 drives) |
| Entitlements | 1 Processor, 1 OS |
| Operating System | IBM i / OS/400 entitlement included |
| Warranty | 60 days |
Compatibility
The IBM iSeries Model 9406-520 with 0905 Processor is compatible with IBM i and OS/400 operating system environments, supporting legacy IBM iSeries applications. It integrates with standard iSeries peripherals, SCSI storage, Ethernet networks, and allows expansion via compatible DDR2 memory, SCSI DASD, and adapters consistent with POWER5 520 architecture. Suitable for traditional mid-range to high-demand business software and workloads on IBM platforms.
Configuration
IBM iSeries Model 9406-520-0905 1.65 GHz 3300-6000 CPW P30
- 140GB 15K RPM SCSI DASD
- 4GB Memory
- 2 Port 1Gbps Ethernet
- DVD ROM
- RAID
- 30GB 1/4In Cartridge Tape
- 3300-6000 CPW
IBM 9406 520 Server IBM iSeries Processor (#0905): 3300-6000 CPW, 1.65 GHz, Power5 1-2Core Processor SW Tier: P30 iSeries Memory: 1 GB to 32 GB iSeries Disk Drives: Minimum of 2 Disc Drives with 8 slots in system unit. Configuration includes: 2640 DVD-ROM, 4326 35.16GB 15K RPM SCSI Disk Unit (QTY=4), 4445 4GB DDR Memory, 5706 Integrated 2-Port 1Gbps Ethernet, 5709/5727 RAID Enablement Card, 5753 30GB 1/4in Cartridge Tape, 9793 BASE 2-Line WAN w/modem, 9844 BASE IOP. one processor entitlement, and one operating system entitlement.
