Product Description

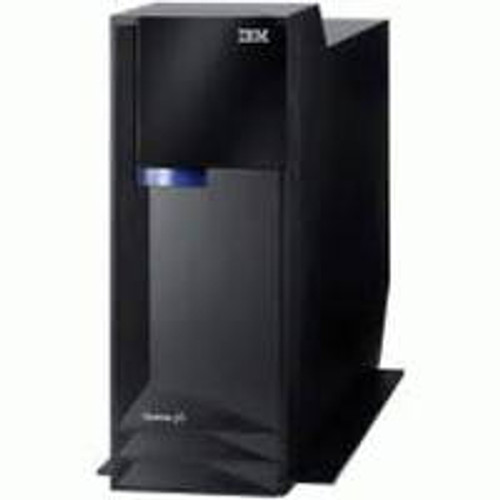

IBM iSeries Model 9406-520-0902 1.5 GHz 1000 CPW P10
Renew your legacy IBM mid-range infrastructure with the IBM iSeries Model 9406-520 featuring the 0902 processor, a dependable Power5 server tailored for balanced interactive and batch workloads. This configuration supplies solid capacity with a 1000 CPW rating in the P10 software tier on a 1.5 GHz POWER5 single-core processor, appropriate for moderate business applications, application hosting, and reliable OS/400 or IBM i operations. It incorporates a standard set of components ready for deployment, including memory, SCSI DASD storage with RAID, integrated dual-port Ethernet, DVD ROM, tape backup, Twinax connectivity, and base communication support.
The Model 9406-520 with 0902 Processor ensures efficient single-processor performance, supporting established AS/400 iSeries software ecosystems. Configured with 4 GB DDR2 memory, 140 GB 15K RPM SCSI DASD (typically 4x 35.16 GB drives), RAID enablement, 2-port 1 Gbps Ethernet, DVD ROM drive, 30 GB 1/4-inch cartridge tape, base 2-line WAN with modem, and base IOP. The system unit provides 8 disk slots (minimum 2 drives required) for potential storage growth.
This fully equipped system includes entitlements for one processor and one operating system, offering a practical and reliable option for organizations continuing to utilize proven IBM iSeries platforms with Power5 technology.
Key Features
- Processor Performance: 0902 1-core POWER5 at 1.5 GHz with 1000 CPW (P10 tier).
- Memory Configuration: 4 GB DDR2 (expandable up to 32 GB per model limits).
- Storage Capacity: 140 GB 15K RPM SCSI DASD with RAID support (typically 4x 35.16 GB drives).
- Networking: Integrated 2-port 1 Gbps Ethernet.
- Media Drives: DVD ROM and 30 GB 1/4-inch cartridge tape.
- Connectivity: Twinax workstation support.
- Communication: Base 2-line WAN with modem.
- Expandability: 8 disk slots in system unit (minimum 2 drives required).
- Entitlements: One processor, one OS.
- Complete Configuration: Ready-to-deploy with all specified components.
Specifications
| Feature | Details |
|---|---|
| Model | 9406-520 |
| Processor / Feature Code | 0902 (P10) |
| Processor Type | POWER5 1-Core |
| Frequency | 1.5 GHz |
| CPW Rating | 1000 CPW |
| Memory | 4 GB DDR2 (4445 4GB DDR Memory) |
| Storage | 140 GB 15K RPM SCSI DASD (4326 35.16GB 15K RPM SCSI Disk Unit QTY=4) |
| RAID Support | Yes (5709/5727 RAID Enablement Card) |
| Ethernet | 2-port 1 Gbps (5706 Integrated 2-Port 1Gbps Ethernet) |
| Twinax | Supported (4746 Twinax) |
| Media Drives | DVD ROM (2640), 30 GB 1/4In Cartridge Tape (5753) |
| Communication | Base 2-Line WAN w/modem (9793), Base IOP (9844) |
| Disk Slots | 8 (minimum 2 drives) |
| Entitlements | 1 Processor, 1 OS |
| Operating System | IBM i / OS/400 entitlement included |
| Warranty | 60 days |
Compatibility
The IBM iSeries Model 9406-520 with 0902 Processor is compatible with IBM i and OS/400 operating system environments, supporting legacy IBM iSeries applications. It integrates with standard iSeries peripherals, SCSI storage, Twinax terminals, Ethernet networks, and allows expansion via compatible DDR2 memory, SCSI DASD, and adapters consistent with POWER5 520 architecture. Suitable for traditional mid-range business software and workloads on IBM platforms.
Configuration
IBM iSeries Model 9406-520-0902 1.5 GHz 1000 CPW P10
- 140GB 15K RPM SCSI DASD
- 4GB Memory
- 2 Port 1Gbps Ethernet
- DVD ROM
- RAID
- 30GB 1/4In Cartridge Tape
- 1000 CPW
- Or go to this link to build a custom configuration IBM 520 Power5 Build 0900, 0901, 0902, and 0903
IBM 9406 520 Server IBM iSeries Processor (#0902): 1000 CPW, 1.5 GHz, Power5 1Core Processor SW Tier: P10 iSeries Memory: 1 GB to 32 GB iSeries Disk Drives: Minimum of 2 Disc Drives with 8 slots in system unit. Configuration includes: 2640 DVD-ROM, 4326 35.16GB 15K RPM SCSI Disk Unit (QTY=4), 4445 4GB DDR Memory, 5706 Integrated 2-Port 1Gbps Ethernet, 5709/5727 RAID Enablement Card, 5753 30GB 1/4in Cartridge Tape, 9793 BASE 2-Line WAN w/modem, 9844 BASE IOP. one processor entitlement, and one operating system entitlement.
