Product Description

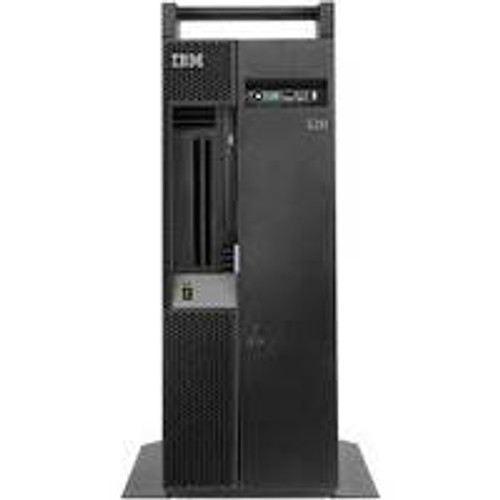

IBM 9408 M25 Power6 4.2 GHz 4,300 CPW V5R4
The IBM 9408-M25 is a mid-range server from the AS/400 iSeries family, powered by a 4.2 GHz POWER6 processor with a 4.300 CPW (Commercial Processing Workload) rating. This rack/tower system was designed for medium-sized businesses running IBM i (OS/400 V5R4) applications, providing solid performance for ERP, databases, file serving, web hosting, and traditional green-screen workloads.
Featuring a single POWER6 processor, support for up to 64 GB of memory, integrated storage controllers with RAID 5/6/10, and embedded networking, the 9408-M25 delivers reliable, scalable performance for legacy IBM i environments. It is fully certified for OS/400 V5R4 (and earlier versions with appropriate PTFs), maintaining compatibility with RPG/COBOL applications, DB2 for i, and classic AS/400 software stacks.
The server includes excellent RAS features such as hot-plug disk bays, redundant power options, and system-level mirroring. It is suitable for production IBM i partitions, branch offices, or consolidation in larger Power environments requiring IBM i capability.
The IBM 9408-M25 4.2 GHz 4.300 CPW V5R4 is backed by a 60-day warranty, providing assurance in its quality and operation for legacy use.
Key Features
- 4.2 GHz POWER6 processor with 4.300 CPW rating for mid-range performance.
- Up to 64 GB DDR2 memory (ECC protected).
- Integrated storage controller with RAID 5/6/10 support.
- Embedded networking (multiple 1 GbE ports) and optional I/O expansion.
- Full IBM i certification for OS/400 V5R4.
- 1U rack or tower form factor with optional deskside cover.
- Hot-plug disk bays and redundant power options (configuration-dependent).
- Optimized for medium IBM i workloads (ERP, databases, file/print serving).
Specifications
| Attribute | Specification |
|---|---|
| Model | 9408-M25 |
| Form Factor | 4U rack-mount or tower (with optional cover) |
| Processor | Single POWER6 4.2 GHz (4.300 CPW) |
| Memory | Up to 64 GB DDR2 (ECC) |
| Storage Bays | Up to 6 SFF or 3 LFF (SAS/SATA/SCSI, model-dependent) |
| Storage Controller | Integrated with RAID 0/5/6/10 |
| Networking | 2–4 port 1 GbE |
| PCIe/PCI-X Slots | Up to 2–3 slots (PCI-X or early PCIe) |
| Power Supplies | Single or redundant hot-swap (model-dependent) |
| Operating Systems | OS/400 V5R4 (certified), earlier V5R3, IBM i 6.1, IBM 7.1(with PTFs), AIX 5.3, Linux (RHEL 4/5) |
| Warranty | 60 days |
Compatibility
The IBM 9408-M25 with 2465 Processor is compatible with legacy IBM i and Power Systems environments:
- Operating Systems: OS/400 V5R4 (primary), V5R3, IBM i 6.1, IBM i 7.1 (with appropriate PTFs), AIX 5.3, Linux distributions certified for POWER5.
- Applications: Traditional IBM i workloads (RPG, COBOL, DB2 for i), ERP (JD Edwards, Infor, MAPICS), file/print serving.
Configuration
IBM iSeries Model 9408-m25 5634 4.2 GHz 4,300 CPW 2-Core v5r4 Special
- 837GB 15K RPM SAS DASD
- 16GB Memory
- 2 Port 1GB/Sec
- Ethernet
- DVD ROM
- LTO4 Internal Tape Drive
- 4,300 CPW
- Unlimited Users
- Desk side or Rack mount
IBM 9408-m25 Power 520 Express Server IBM iSeries Processor (#5634): 4300 CPW, 4.2 GHz, Power6 2-Core Processor SW Tier: P10 iSeries Memory: 8 GB to 32 GB iSeries Disk Drives: Minimum of 2 Disc Drives with 6 slots in system unit Configuration includes: 5623 2-Port 1GB HEA Daughter Card, 3677 139.5GB 15K RPM SAS Disk Drive (QTY=6), 4524 16GB (2x8GB) RDIMMS, 1066 MHZ, 5746 HH 800/1.6TB LTO4 SAS Tape Drive, 5762 SATA Slimline DVD-RAM Drive, one processor entitlement, one operating system entitlement, and a Unlimited user entitlement.
Everything you need to run at v5r4.
