Product Description

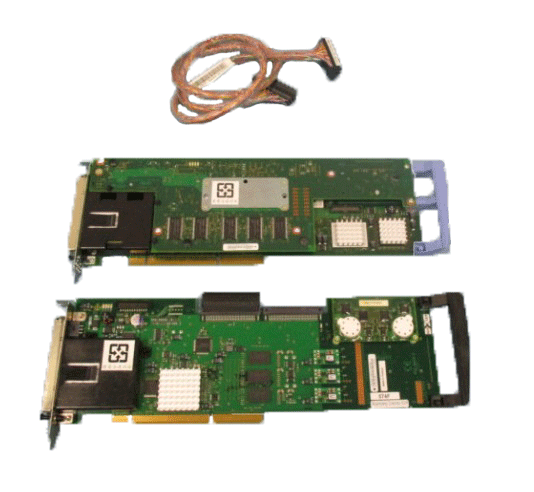

The IBM 5583 5777 PCI-X Disk Controller with 1.5GB Auxiliary Write Cache (Part Number: 42R4460) is a high-performance, IOP-less controller designed for IBM i on Power Systems, enhancing enterprise storage for TS3100 and TS3200 tape libraries in data center solutions. Featuring a 1.5GB compressed write cache and 1.6GB read cache, it supports three Ultra320 SCSI buses for internal disk drives, tape units, and optical devices, paired with a #574F auxiliary-write cache IOA (CCIN 574F) for RAID-5 or RAID-6. With CCIN 571E, it enables mirroring protection and supports up to 60 16-bit SCSI drives, depending on enclosure limits. The controller offers enterprise data protection with advanced error handling and concurrent battery maintenance, ensuring reliable system administration for RAID configurations. It provides a cost-effective storage solution for upgrading data center infrastructure, managing mission-critical workloads like ERP and database systems with scalable, high-performance capabilities in demanding business environments.
Key Features
- 1.5GB write cache and 1.6GB read cache for high-speed enterprise storage.
- Three Ultra320 SCSI buses for scalable disk and tape connectivity.
- Supports TS3100 and TS3200 tape libraries for data center solutions.
- Advanced error handling and mirroring for enterprise data protection.
- Optimized for IBM i, IOP-less for versatile platform support.
- Controller with 60-day warranty and technical support, offering cost-effective storage.
Technical Specifications
| Part Numbers | 42R4460 (5777), 42R5133 (574F) |
| CCIN | 571E (5777), 574F (Aux Cache) |
| Interface | PCI-X Ultra320 SCSI |
| Cache | 1.5GB compressed write, 1.6GB compressed read |
| Buses | Three internal Ultra320 SCSI (port 3 used for aux cache) |
| Disk Support | Up to 60 16-bit SCSI drives (enclosure-limited) |
| Form Factor | Two PCI-X slots (5777 and 574F) |
Compatibility with Power Systems
The IBM 5583 5777 PCI-X Disk Controller with 1.5GB Auxiliary Write Cache (42R4460) is compatible with IBM Power Systems running IBM i, enabling enterprise storage for TS3100 and TS3200 tape libraries in data center solutions. This IOP-less controller integrates with systems requiring high-performance storage for internal disk drives, tape units, and optical devices, supporting enterprise applications and configurations. It facilitates robust data transfer, system administration, and secure data archiving with mirroring, RAID-5/6 (via #574F aux cache), and advanced error handling, ensuring scalable management for mission-critical workloads like ERP and database systems. The controller supports three Ultra320 SCSI buses, with port 3 dedicated to the aux cache, optimizing storage performance in demanding business environments:
- IBM i (V5R4 with V5R4M5 or later); not supported on AIX or Linux.
- Power Systems: 8203-E4A, 8204-E8A, 9117-MMA, 9119-FHA, optimized for IBM i storage.
- Supports TS3100 (3573-L2U) and TS3200 (3573-L4U) tape libraries for flexible configurations.
Note: Requires two PCI-X slots, compatible SCSI cables; aux cache IOA mandatory for RAID-5/6.
