Product Description

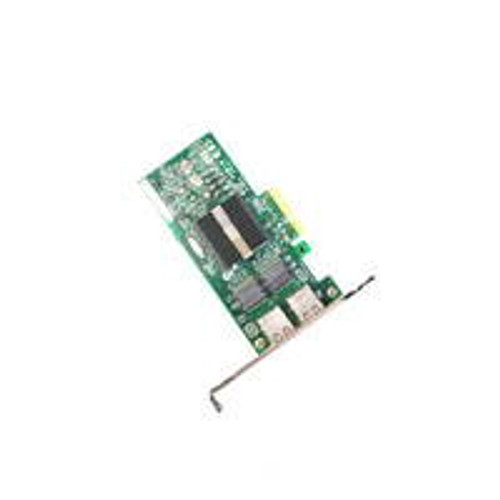

IBM 5767 2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter
The IBM 5767 2-Port 10/100/1000 Base-TX Ethernet PCI Express Adapter provides reliable, high-speed network connectivity for Power7 systems. This full-duplex, dual-ported Gigabit Ethernet adapter is designed with highly integrated components, allowing each port to be configured independently for 10, 100, or 1000 Mbps speeds.
Key Features
- 2 ports for flexible connectivity
- 10/100/1000 Mbps speeds with auto-negotiation
- PCI Express interface compatible with V1.0a
- Support for VLANs and flow control
- Compliance with IEEE 802.3ab standards
- Full-height adapter for versatile installation
Specifications
| Attribute | Details |
|---|---|
| Feature Code (FC) | 5767 |
| CCIN | 5767 |
| FRU Number | 46K6601 |
| I/O Bus | PCI-Express V1.0a |
| Connector | RJ45 UTP |
| Cable Type | Cat5e or higher, up to 100 m |
| Standards | IEEE 802.3ab |
| Operating Systems | AIX 5.3 or later, Red Hat Enterprise Linux 5.6 or later, SUSE Linux Enterprise Server 11 SP1 or later, IBM i 6.1 or later |
Compatibility
This adapter is designed for use with various IBM Power7 models, ensuring broad system integration:
- 8231-E2B, 8231-E1C, 8231-E1D, 8231-E2C, 8231-E2D, 8268-E1D
- 8202-E4B, 8202-E4C, 8202-E4D
- 8205-E6B, 8205-E6C, 8205-E6D
- 8233-E8B, 8236-E8C
- 8248-L4T, 8408-E8D, 9109-RMD
- 8412-EAD, 9117-MMB, 9117-MMC, 9117-MMD
- 9179-MHB, 9179-MHC, 9179-MHD
- Expansion units: 5803, 5873
For slot priorities and maximum adapter counts, consult the PCI adapter placement guidelines for your specific system.
Warranty
60 days limited warranty.
