    RAID Cards for IBM Power5 Systems

    IBM RAID cards for POWER5 systems deliver reliable storage control with RAID capabilities tailored for the POWER5 server generation. These PCIe-based SAS RAID adapters support essential RAID levels including RAID 0, 5, 6, 10, and system-level mirroring, providing solid data protection and availability for legacy enterprise environments.

    With select models featuring integrated write cache (for improved write performance), hot-swap support, and compatibility with internal/external SAS/SATA drives (primarily HDDs), these adapters enable flexible storage expansion and redundancy. They integrate seamlessly with POWER5 servers running AIX, IBM i, or Linux, and support high-availability configurations in compatible setups.

    Common models include PCIe Gen2 SAS RAID adapters (e.g., feature codes such as 573A/573B for basic RAID, or cached variants like 573C/EL50), providing 3 Gb/s SAS performance suited to POWER5's PCIe slots. These cards are suitable for databases, virtualization, ERP systems, and other workloads requiring dependable storage in aging POWER5 infrastructure.

    IBM POWER5 RAID cards are backed by a 60-day warranty, ensuring quality and dependable performance for legacy systems.

    Key Features

    • Support for RAID levels 0, 5, 6, 10, and mirroring.
    • Optional write cache (on select models) for improved write performance.
    • High-availability configurations and system-level redundancy support.
    • PCIe Gen2 interface with 3 Gb/s SAS connectivity.
    • Hot-swap capable for reduced disruption during maintenance.
    • Compatibility with SAS/SATA HDDs.
    • Optimized for IBM POWER5 servers running AIX, IBM i, or Linux.
    • Redundant power and component support in system integration.

    Specifications



    Attribute Specification
    Interface PCIe Gen2 x8 (model-dependent)
    SAS Ports Typically 4–8 internal/external ports (model-dependent)
    RAID Levels Supported 0, 5, 6, 10, mirroring
    Cache Optional write cache (e.g., 512 MB on cached models)
    Data Transfer Rate 3 Gb/s SAS (per port)
    Supported Systems IBM POWER5 servers (e.g., 9110-51A, 9115-505, 9117-570, 9406-520, 9406-550, 9406-570, 9406-595) – check specific feature codes
    Operating Systems AIX (5.2/5.3), IBM i (5.4/6.1), Linux (RHEL 4, SLES 9/10)
    Form Factor PCIe low-profile or full-height adapter
    Warranty 60 days


    Compatibility

    IBM RAID cards are compatible with IBM POWER5 servers and operating systems:

    • Servers: POWER5 models (e.g., 9110-51A, 9115-505, 9117-570, 9406-520, 9406-550, 9406-570, 9406-595) – verify specific feature codes and slot requirements.
    • Operating Systems: AIX (5.2/5.3), IBM i (5.4/6.1), Linux distributions (RHEL 4, SLES 9/10) certified for POWER5.

    Requires compatible PCIe slots, system firmware, and appropriate cabling/backplanes.

    • IBM 2757 PCI-X Ultra RAID Disk Unit Controller card
      Quick view

      IBM 2757 PCI-X Ultra RAID Disk Controller

      IBM 2757 PCI-X Ultra RAID Disk Controller The IBM 2757 is a high-performance PCI-X RAID Disk Unit Controller designed for mid-to-late POWER5 and POWER6 era Power Systems and iSeries servers. It supports advanced RAID configurations (RAID 0, 1, 5, 10)...

      $150.00
      Add to Cart
    • IBM 2780 PCI-X Ultra4 RAID Disk Unit Controller card
      Quick view

      IBM 2780 PCI-X Ultra4 RAID Disk Controller

      IBM 2780 PCI-X Ultra4 RAID Disk Controller The IBM 2780 is a high-performance PCI-X RAID Disk Unit Controller designed for POWER5 and POWER6 era Power Systems and iSeries servers. It supports advanced RAID configurations (RAID 0, 1, 5, 10) with Ultra320...

      $175.00
      Add to Cart
    • IBM 5580 / 2780 PCI-X RAID controller with auxiliary write cache
      Quick view

      IBM 5580 2780 Ctlr w/Aux Write Cache

      IBM 5580 2780 Ctlr w/Aux Write Cache 5708 The IBM 5580 (feature code for 2780 with auxiliary write cache 5708) is a high-performance PCI-X RAID Disk Unit Controller equipped with additional auxiliary write cache for superior data protection and write...

      $250.00
      Add to Cart
    • IBM 5582 / 5738 PCI-X RAID controller with auxiliary write cache
      Quick view

      IBM 5582 5738 Ctlr w/Aux Write Cache

      IBM 5582 5738 Ctlr w/Aux Write Cache 574F The IBM 5582 (feature code for 5738 with auxiliary write cache 574F) is a high-performance PCI-X RAID Disk Unit Controller equipped with additional auxiliary write cache for superior data protection and write...

      $1,800.00
      Add to Cart

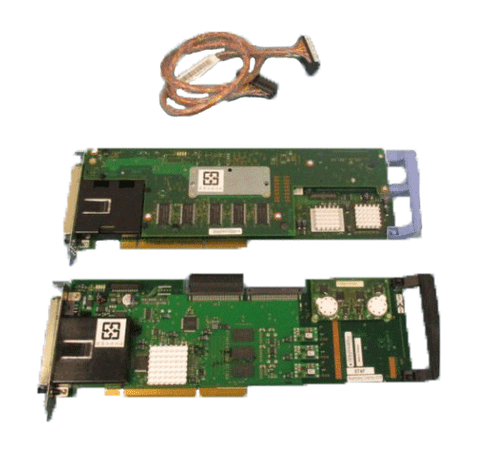

    • IBM 5590 / 2780 PCI-X RAID controller with auxiliary write cache
      Quick view

      IBM 5590 2780 Ctlr w/Aux Write Cache

      IBM 5590 2780 Ctlr w/574F Aux Write Cache The IBM 5590 (feature code for 2780 with auxiliary write cache option) is a high-performance PCI-X RAID Disk Unit Controller equipped with additional auxiliary write cache for superior data protection and write...

      $250.00
      Add to Cart
    • IBM 5591 / 2757 PCI-X RAID controller with auxiliary write cache
      Quick view

      IBM 5591 2757 Controller w/Aux Write Cache

      IBM 5591 2757 Controller w/574F Aux Write Cache The IBM 5591 (feature code for 2757 with 574F auxiliary write cache) is a high-performance PCI-X RAID Disk Unit Controller equipped with additional auxiliary write cache for superior data protection and...

      $275.00
      Add to Cart
    • IBM 5592 4-disk slot expansion controller card
      Quick view

      IBM 5592 4 Disk Slot Exp + Controller

      IBM 5592 4 Disk Slot Exp + 571B Controller The IBM 5592 is a PCI-X based 4-Disk Slot Expansion Controller designed to add four additional internal disk bays to compatible older Power Systems and iSeries servers. It provides Ultra320 SCSI connectivity...

      $1,800.00
      Add to Cart
    • IBM 5709 RAID Enabler Card
      Quick view

      IBM 5709 RAID Enabler Card

      IBM 5709 RAID Enabler Card The IBM 5709 is a RAID Enabler Card (feature card) that activates RAID support on integrated disk controllers in compatible older Power5 and Power5+ Systems and iSeries servers. By installing this card, the system gains RAID...

      $225.00
      Add to Cart
    • IBM 5727 Integrated Cache - 40MB
      Quick view

      IBM 5727 Integrated Cache - 40MB

      IBM 5727 Integrated Cache - 40MB Internal controller for 9405/9406-520s 40MB Cache IBM 5727 augments the base integrated disk controller of the model 515, 520, 525, or the model 550 with 40MB of write cache and also enables RAID-5 capability for...

      $225.00
      Add to Cart
    • IBM 5776 PCI-X Disk Ctlr-90MB No IOP
      Quick view

      IBM 5776 PCI-X Disk Ctlr-90MB No IOP

      IBM 5776 PCI-X Disk Ctlr-90MB No IOP 90MB Cache IBM 5776, PCI-X DASD Controller provides a PCI-X SCSI disk controller that has a 90MB write cache and can provide RAID-5 or RAID-6 protection of disk units. The #5776 has two U320 SCSI buses each with...

      $450.00
      Add to Cart
    Compare Selected
