Product Description

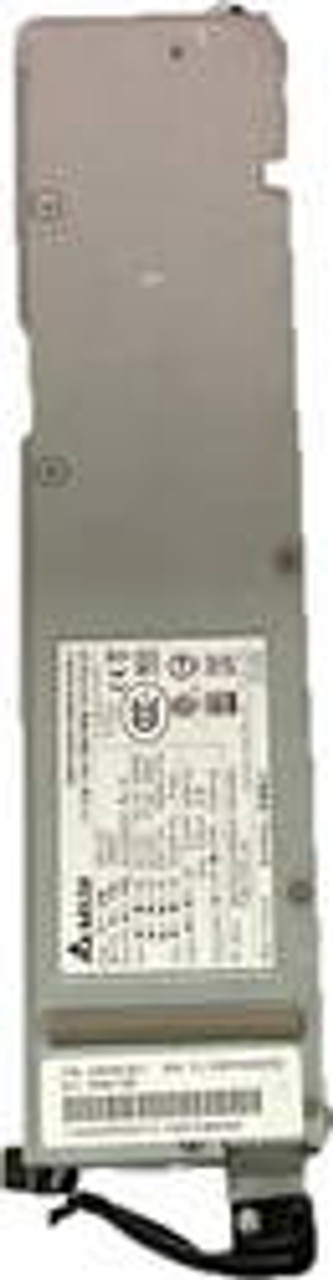

The IBM EMXA AC Power Supply Conduit enhances PCIe3 expansion in Power8 systems by providing two 320-C14 inlet electrical connections for AC power cords with C13 plugs. This conduit connects two front power supplies in the EMX0 drawer to rear power cords, ensuring efficient power distribution for I/O expansion. Ideal for EMX0 setups in Power8 and Power9 environments, the IBM EMXA offers reliable connectivity for enterprise needs. At DataTech Computer, each IBM EMXA unit is rigorously tested, backed by a 60-day warranty, and includes expert support for seamless integration.
Key Features
- Two 320-C14 inlets for separate AC power cords with C13 plugs.
- Connects front power supplies to rear cords in EMX0 PCIe3 expansion drawer.
- Supports high-efficiency power delivery for stable operation.
- Compatible with Power8/9 systems for versatile I/O setups.
- Durability with DataTech's 60-day warranty for assurance.
Technical Specifications
| Feature Code | EMXA |
|---|---|
| Form Factor | Conduit for EMX0 Drawer |
| Electrical Connections | 2x 320-C14 Inlets |
| Power Cord Compatibility | C13 Plugs |
| Power Supplies Supported | Two Front-Mounted in EMX0 |
| Compatibility | PCIe Gen3 I/O Expansion Drawer (EMX0) |
Compatibility with Power Systems
The IBM EMXA conduit is designed for the EMX0 PCIe3 expansion drawer in Power8 and Power9 systems, such as E850C, S914, and similar models. It supports AC power cords for redundant power, ensuring compatibility with EMX0 setups. Not for HVDC; mix not allowed. For Power10 or non-EMX0, consider alternatives.
OS-Specific Notes
- AIX/Linux: No specific requirements; follows EMX0 standards.
- IBM i (iSeries AS400): Compatible via EMX0 partitioning.
Contact DataTech for advice.
Installation Overview
Installing the IBM EMXA involves connecting the conduit to front power supplies and rear AC power cords in the EMX0 drawer. Ensure secure 320-C14 inlets and C13 plugs. Rack-mount the drawer with proper clearances. Professional assistance is recommended for initial setups to ensure safety and performance.
Frequently Asked Questions (FAQs)
What connections does IBM EMXA provide?
Two 320-C14 inlets for AC power cords with C13 plugs.
Is IBM EMXA compatible with EMX0 drawer?
Yes, for PCIe3 expansion in Power8/9 systems.
Can IBM EMXA mix AC and HVDC?
No; AC only, no mixing allowed.
